REAR FOG LAMP

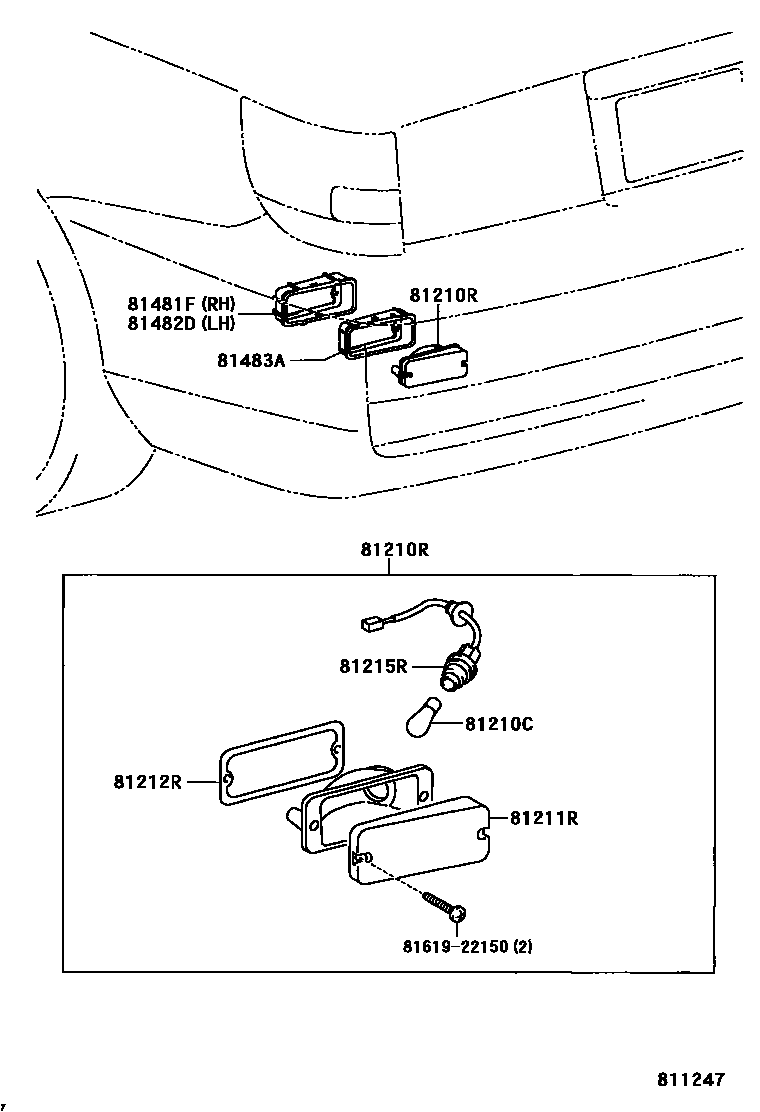

Parts diagram

81210CBULB, REAR FOG LAMP

main99132-11210×2i199908-200208

12V 21W

81210RLAMP ASSY, REAR FOG

main81480-20010i200208-200509

RH

main81490-20010i200208-200509

LH

81211RLENS, REAR FOG LAMP

main81581-20250i200208-200509

RH

main81591-20210i200208-200509

LH

81212RGASKET, REAR FOG LAMP, NO.1

main81584-20250×2i199908-200208

81215RSOCKET & WIRE, REAR FOG LAMP

main81585-20250×2i199908-200208

81481FBRACKET, FOG LAMP, RH

main81481-20010i199908-200208

81482DBRACKET, FOG LAMP, LH

main81482-20010i199908-200208

81483APROTECTOR, FOG LAMP

main81483-20010-A0i200208-200509

SUPER WHITE 2,040,RH

main81483-20010-B0i199908-200208

SILVER ME.,1D0,RH

main81483-20010-B1i200208-200509

GRAY ME.,1D2,RH

main81483-20010-B2i200208-200509

SILVER M.M,1E7,RH

main81483-20010-C0i200208-200509

BLACK,202,RH

main81483-20010-C1i199908-200208

BLACK MC.CC.,210,RH

main81483-20010-D0i200208-200509

SUPER RED 5,3P0,RH

main81483-20010-F0i200208-200509

SUPER BRIGHT YELLOW,576,RH

main81483-20010-G0i200208-200509

DARK GREEN MC,6R4,RH

main81483-20010-J0i199908-200208

BLUE MC.,8M6,RH

main81484-20010-A0i199908-200208

SUPER WHITE 2,040,LH

main81484-20010-B0i199908-200208

SILVER ME.,1D0,LH

main81484-20010-B1i200208-200509

GRAY ME.,1D2,LH

main81484-20010-B2i200208-200509

SILVER M.M,1E7,LH

main81484-20010-C0i200208-200509

BLACK,202,LH

main81484-20010-C1i199908-200208

BLACK MC.CC.,210,LH

main81484-20010-D0i199908-200208

SUPER RED 5,3P0,LH

main81484-20010-F0i200208-200509

SUPER BRIGHT YELLOW,576,LH

main81484-20010-G0i200208-200509

DARK GREEN MC.,6R4,LH

main81484-20010-J0i200208-200509

BLUE MC.,8M6,LH

8161922150

main81619-22150

9 parts on this diagram · 1 diagram in section
