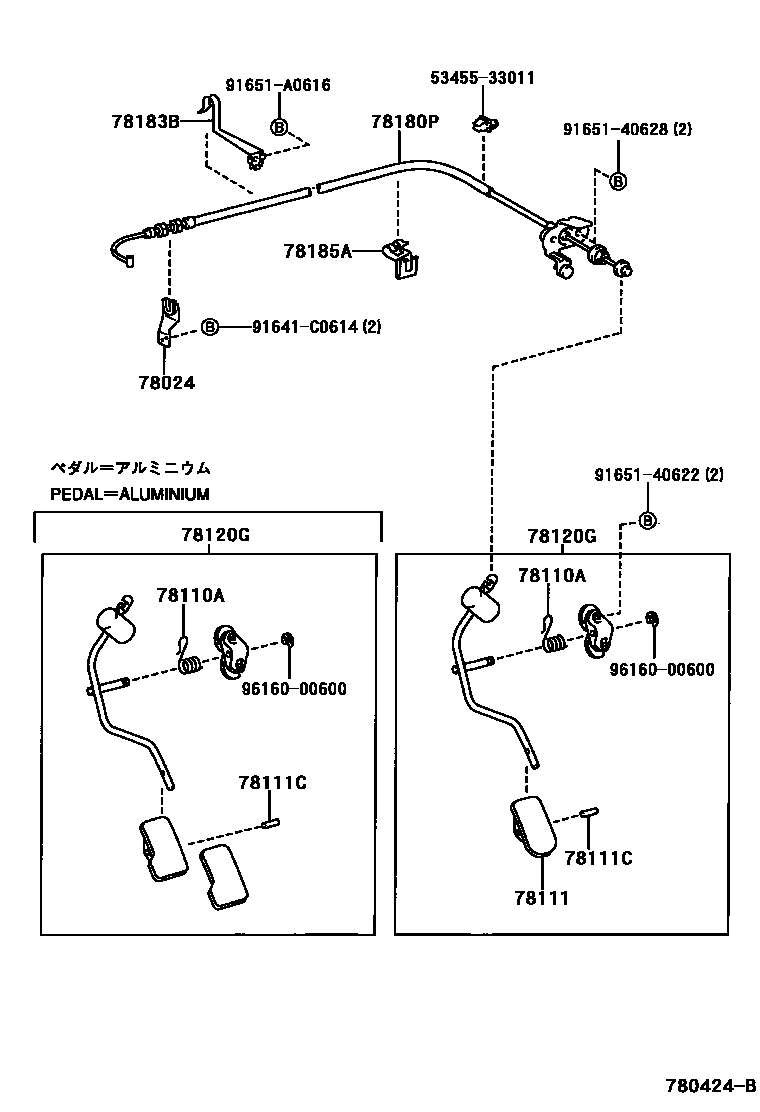

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-20170iZZT230200208-200509

main78024-88600iZZT231200008-200205

main78024-88602iZZT231200208-200509

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26054iZZT23#..RHD199908-200208

main90508-26075iZZT23#..LHD199908-200208

78111PEDAL, ACCELERATOR

main78111-33020iZZT230200208-200509

NORMAL TYPE

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019iZZT23#199908-200208

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20760iZZT230..RHD199908-200208

main78120-20770iZZT230..LHD199908-200208

main78120-20780iZZT230..RHD; ZZT231..RHD200208-200509

PEDAL = ALUMINIUM

main78120-20790iZZT230..LHD; ZZT231..LHD200208-200509

PEDAL = ALUMINIUM

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-2D760iZZT230..LHD199908-200208

main78180-2D770iZZT230..RHD199908-200208

main78180-2D790iZZT231..RHD200208-200509

main78180-2D800iZZT231..LHD200208-200509

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20350iZZT230199908-200208

main78183-20400iZZT231200008-200208

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78185-20110iZZT230199908-200208

5345533011CLAMP, HOOD SUPPORT ROD

main53455-33011

91641C0614

main91641-C0614

9165140622

main91651-40622

9165140628

main91651-40628

91651A0616

main91651-A0616

9616000600

main96160-00600

14 parts on this diagram · 4 diagrams in section
