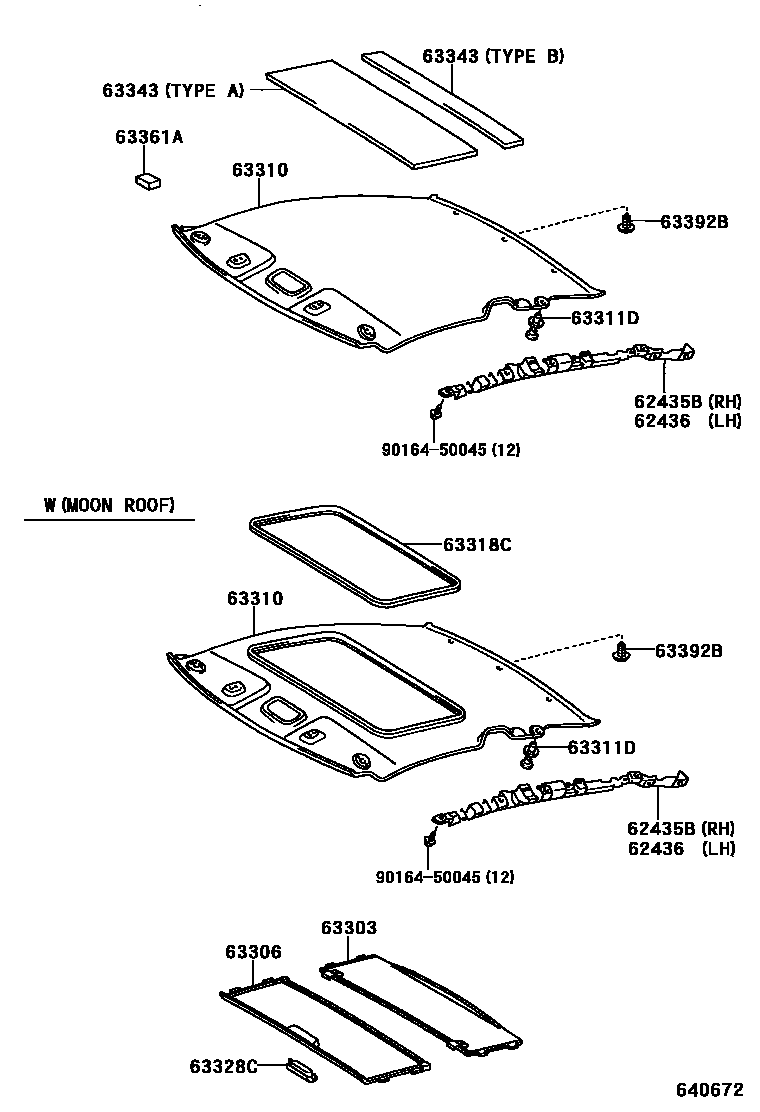

ROOF HEADLINING & SILENCER PAD

62435BPAD, ROOF SIDE RAIL, FRONT RH

main62435-20050iZZT23#199908-200208

main62435-20060iZZT23#200208-200509

62436PAD, ROOF SIDE RAIL, FRONT LH

main62436-20050iZZT23#199908-200208

main62436-20060iZZT23#200208-200509

63303TRIM SUB-ASSY, SUNSHADE, NO.2

main63303-20030-B0iZZT230199908-200002

LT. GRAY,TRIM2#,20,21,22

main63303-20031-B0iZZT23#200002-200012

LT. GRAY,TRIM2#,20,21,22

main63303-20032-B0iZZT23#200012-200208

LT. GRAY,TRIM20,21,22,23

main63303-20033-B1iZZT23#200208-200210

LT.GRAY,TRIM20,21,22,23

main63303-20040-B2iZZT23#200210-200509

LT.GRAY,TRIM20,21,22,23

63306TRIM SUB-ASSY, SUNSHADE

main63306-20080-B0iZZT23#199908-200012

LT. GRAY,TRIM2#,20,21,22

main63306-20081-B0iZZT23#200012-200208

LT. GRAY,TRIM20,21,22,23

main63306-20082-B1iZZT23#200208-200210

LT.GRAY,TRIM20,21,22,23

main63306-20090-B2iZZT23#200210-200509

LT.GRAY,TRIM20,21,22,23

63310HEADLINING ASSY, ROOF

main63310-2B700-B0iZZT23#199908-200208

LT. GRAY,TRIM2#,20,21,22

main63310-2B710-B0iZZT23#199908-200208

W(MOON ROOF),LT. GRAY,TRIM2#,20,21,22

main63310-2B740-B2iZZT23#200208-200509

LT.GRAY,TRIM20,21,22,23

main63310-2B750-B2iZZT23#200208-200509

W(MOON ROOF),LT.GRAY,TRIM20,21,22,23

63311DCLIP(HEADLINING, ROOF, FRONT)

main90467-07146×2iZZT23#199908-200208

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-20110-B0iZZT23#199908-200208

L=2255,LT.GRAY,TRIM2#,20,21,22

main63318-20140-B1iZZT23#200208-200308

L=2255,LT.GRAY,TRIM20,21,22,23

main63318-20141-B1iZZT23#200308-200509

L=2255,LT.GRAY,TRIM20,21,22,23

63328CKNOB, SUNSHADE TRIM

main63328-95D00-B0iZZT23#199908-200208

GRAY,TRIM2#,20,21,22

main63328-95D00-B2iZZT23#200208-200509

LT.GRAY,TRIM20,21,22,23

63343PAD, ROOF SILENCER, NO.3

main63343-20180iZZT23#199908-200208

TYPE A:REFER TO ILLUSTRATION

main63344-20140iZZT23#200208-200509

TYPE B:REFER ILLUST.

63361ASUPPORT, ROOF HEADLINING

main63361-20190×2iZZT23#199908-200208

63392BCLIP(FOR ROOF HEADLINING REAR TRIM)

main90467-05021-B8×3iZZT23#199908-200208

LI. GRAY,TRIM2#,20,21,22

main90467-05021-P4×3iZZT23#200208-200509

LT.GRAY,TRIM20,21,22,23

9016450045

main90164-50045

12 parts on this diagram · 1 diagram in section
