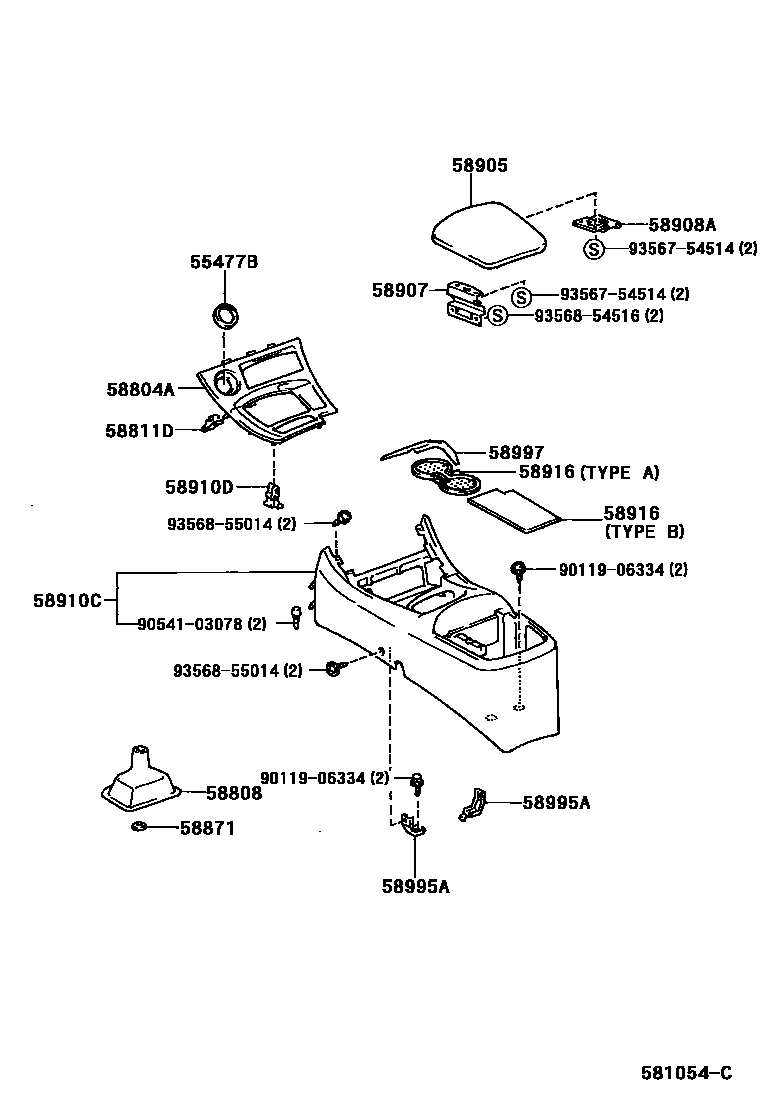

CONSOLE BOX & BRACKET
55477BBEZEL, CIGARETTE LIGHTER HOLE
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#,20,21,22
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
58811DCLIP(FOR CONSOLE BOX)
58871CUSHION, CONSOLE BOX
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
AMETHYST,TRIM2#,20,21,22
DK.GRAY,TRIM20,21,22,23
AMETHYST,TRIM2#,20,21,22
DK.GRAY,TRIM20,21,22,23
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
W(SEAT HEATER),DK.GRAY,TRIM2#
W(SEAT HEATER),DK.GRAY,TRIM2#
58910DCLIP(FOR CONSOLE BOX)
58916MAT, BOX BOTTOM
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
9011906334
main90119-06334
9054103078
main90541-03078
9356754514
main93567-54514
9356854516
main93568-54516
9356855014
main93568-55014
18 parts on this diagram · 1 diagram in section
