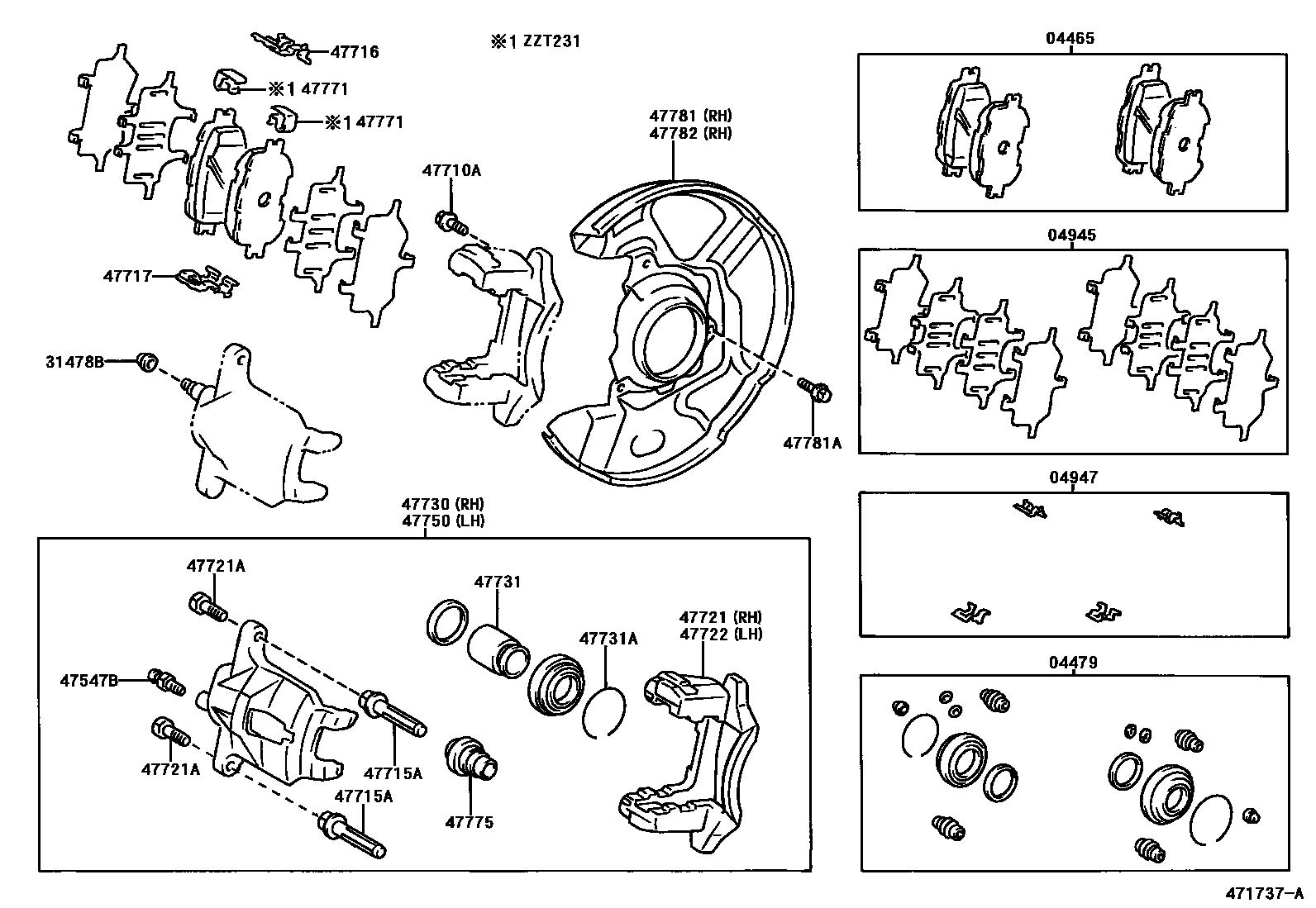

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-20500iZZT231200008-200208

sub04465-20570

main04465-2B040iZZT23#200208-200509

MARK AISIN PC553H

main04465-52010iZZT230199908-200112

MARK NBK PN540H

sub04465-17140

sub04465-52120

main04465-52120iZZT230200112-200208

MARK NBK PN540H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20320iZZT230199908-200208

sub04478-47060

main04479-20330iZZT231200008-200509

sub04478-13020

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-13030iZZT23#200208-200509

main04945-20210iZZT230199908-200208

main04945-32230iZZT231200008-200208

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20110iZZT230199908-200208

main04947-20120iZZT231200008-200509

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iZZT23#199908-200509

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZZT23#199908-200509

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZZT23#199908-200509

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22080iZZT231200008-200509

main47715-52010iZZT230199908-200208

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20200iZZT230199908-200208

main47716-20210iZZT23#200008-200509

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20100iZZT230199908-200208

main47717-20110iZZT231200008-200509

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20440iZZT230199908-200208

main47721-20450iZZT231200008-200208

main47721-20460iZZT23#200208-200509

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iZZT23#199908-200208

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-20130iZZT230199908-200208

main47722-20140iZZT231200008-200208

main47722-20150iZZT23#200208

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-13050iZZT23#200211-200509

main47730-20600iZZT230199908-200208

main47730-20610iZZT231200008-200208

main47730-20640iZZT23#200208-200211

47731PISTON, FRONT DISC BRAKE

main47731-20260iZZT230199908-200208

main47731-44010iZZT231200008-200208

sub47731-33010

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iZZT230199908-200208

main90522-66001iZZT231200008-200208

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-13050iZZT23#200211-200509

main47750-20510iZZT230199908-200208

main47750-20600iZZT231200008-200208

main47750-20640iZZT23#200208-200211

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32040iZZT231200008-200509

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iZZT231200008-200509

sub47775-50010

main47775-52010iZZT230199908-200208

sub47775-02130

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-20350iZZT23#200008-200509

main47781-47010iZZT230199908-200208

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iZZT23#199908-200101

main90119-06227iZZT23#200101-200509

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-20350iZZT231200008-200509

main47782-47010iZZT230199908-200208

22 parts on this diagram · 1 diagram in section
