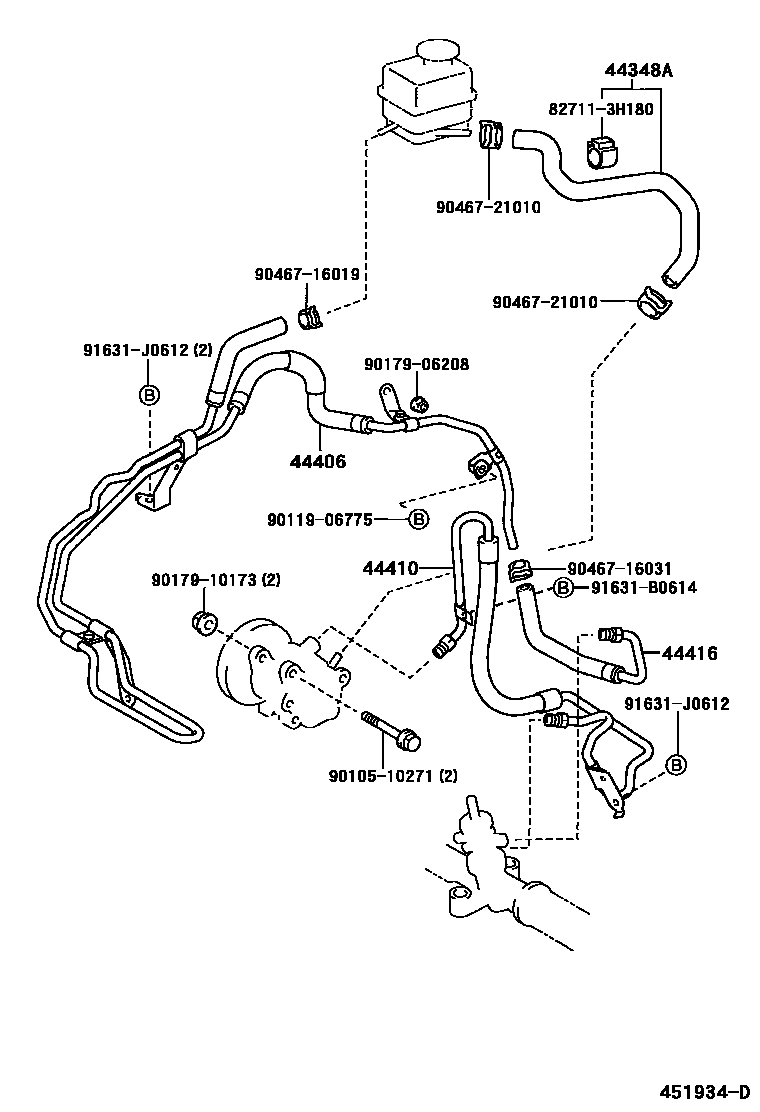

POWER STEERING TUBE

0001 1 0002 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-20610iZZT23#200208-200509

44406TUBE SUB-ASSY, RETURN

main44406-20810iZZT23#199908-200208

44410TUBE ASSY, PRESSURE FEED

main44410-2B300iZZT23#..RHD200208-200509

main44410-2B310iZZT23#..LHD199908-200208

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20210iZZT23#..RHD199908-200208

827113H180WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H180

9010510271

main90105-10271

9011906775

main90119-06775

9017906208

main90179-06208

9017910173

main90179-10173

9046716019

main90467-16019

9046716031

main90467-16031

9046721010

main90467-21010

91631B0614

main91631-B0614

91631J0612

main91631-J0612

14 parts on this diagram · 2 diagrams in section
