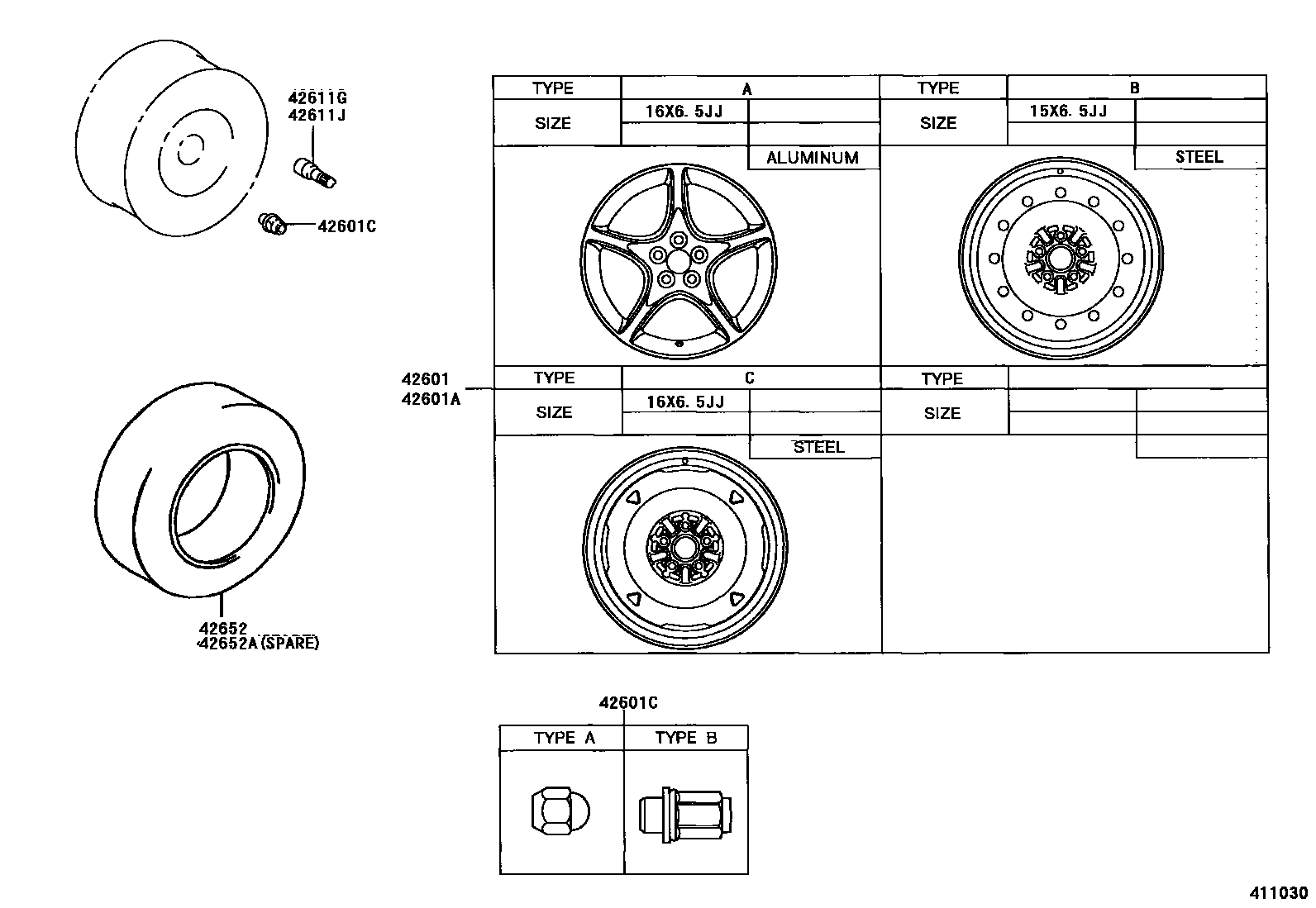

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-2B270iZZT23#199908-200509

15X6.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-2B290iZZT23#199908-200509

16X6.5JJ,TYPE A:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-20840iZZT23#199908-200509

16X4T,TYPE C:REFER TO ILLUSTRATION

main42611-2B270iZZT23#199908-200509

15X6.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-2B290iZZT230..LHD199908-200509

16X6.5JJ,TYPE A:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01021iZZT23#199908-200108

TYPE A:REFER TO ILLUSTRATION

main90942-01033iZZT23#199908-200509

TYPE B:REFER TO ILLUSTRATION

main90942-01082iZZT23#200108-200509

TYPE A:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iZZT23#199908-200509

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iZZT23#199908-200509

42652TIRE

main42652-20A10iZZT230..RHD200406-200509

195/60R15 *B/S

main42652-2B800iZZT230..LHD199908-200405

195/60R15

main42652-2B801iZZT230..LHD200406-200509

195/60R15

main42652-2B810iZZT230..RHD199908-200406

195/60R15,*B/S

main42652-2B840iZZT23#199908-200405

205/50R16

main42652-2B841iZZT23#200406-200509

205/50R16

main42652-2B860iZZT231200008-200405

205/55R15

main42652-2B861iZZT231200406-200509

205/55R15

42652ATIRE (FOR SPARE)

main42652-20A10iZZT230..RHD200406-200509

195/60R15 *B/S

main42652-24050iZZT23#199908-200509

T135/70D16

main42652-2B800iZZT230..LHD199908-200405

195/60R15

main42652-2B801iZZT230..LHD200406-200509

195/60R15

main42652-2B810iZZT230..RHD199908-200406

195/60R15,*B/S

main42652-2B840iZZT230199908-200405

205/50R16

main42652-2B841iZZT23#200406-200509

205/50R16

main42652-2B860iZZT231200008-200405

205/55R15

main42652-2B861iZZT231200406-200509

205/55R15

7 parts on this diagram · 3 diagrams in section
