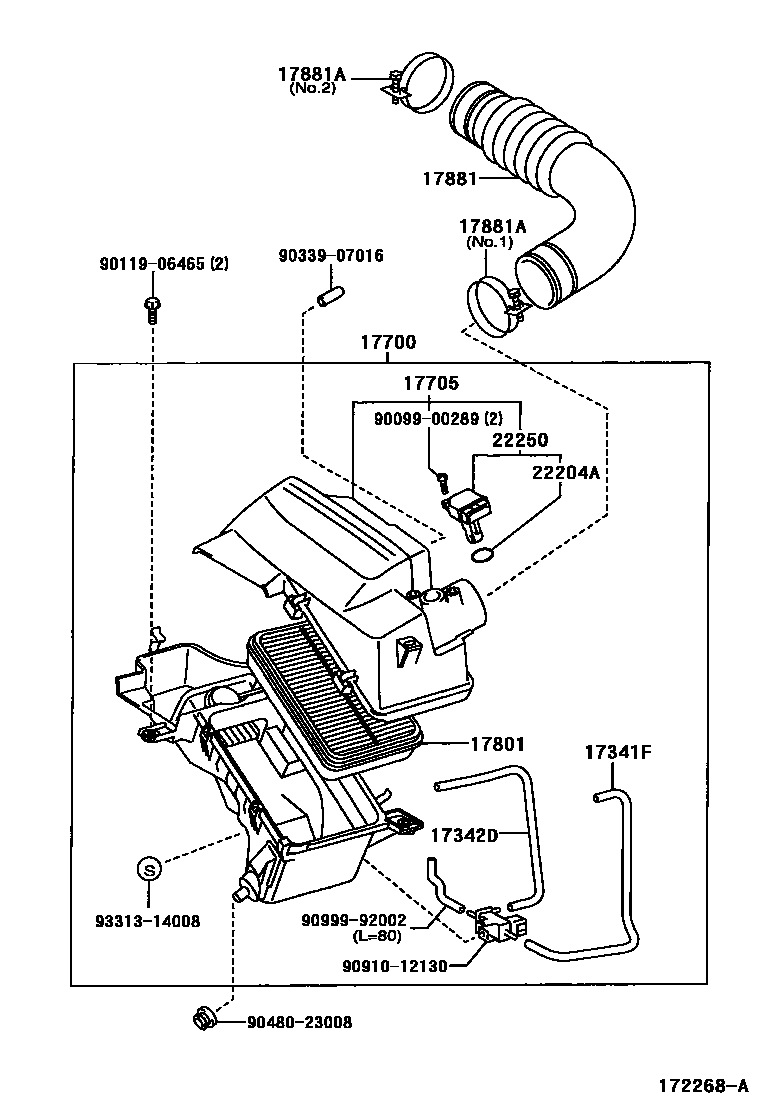

AIR CLEANER

17341FHOSE, AIR, NO.1

main17341-22020i1ZZFE,2ZZGE..ZZT23#199908-200509

17342DHOSE, AIR, NO.2

main17342-22010i1ZZFE,2ZZGE..ZZT23#199908-200509

17700CLEANER ASSY, AIR

main17700-22100i1ZZFE,2ZZGE..ZZT23#199908-200509

17705CAP SUB-ASSY, AIR CLEANER

main17705-22070i1ZZFE,2ZZGE..ZZT23#199908-200509

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-16020i1ZZFE,2ZZGE..ZZT23#199908-200509

17881HOSE, AIR CLEANER, NO.1

main17881-22020i2ZZGE..ZZT231200008-200509

main17881-22030i1ZZFE..ZZT230199908-200509

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10800i1ZZFE..ZZT230199908-200208

main96111-10800i2ZZGE..ZZT231200008-200509

NO.1

main96111-10850i2ZZGE..ZZT231200008-200509

NO.2

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1ZZFE,2ZZGE..ZZT23#199908-200509

22250METER ASSY, INTAKE AIR FLOW

main22204-22010i1ZZFE,2ZZGE..ZZT23#199908-200509

9009900289

main90099-00289

9011906465

main90119-06465

9033907016

main90339-07016

9048023008

main90480-23008

9091012130

main90910-12130

9099992002

main90999-92002

9331314008

main93313-14008

16 parts on this diagram · 1 diagram in section
