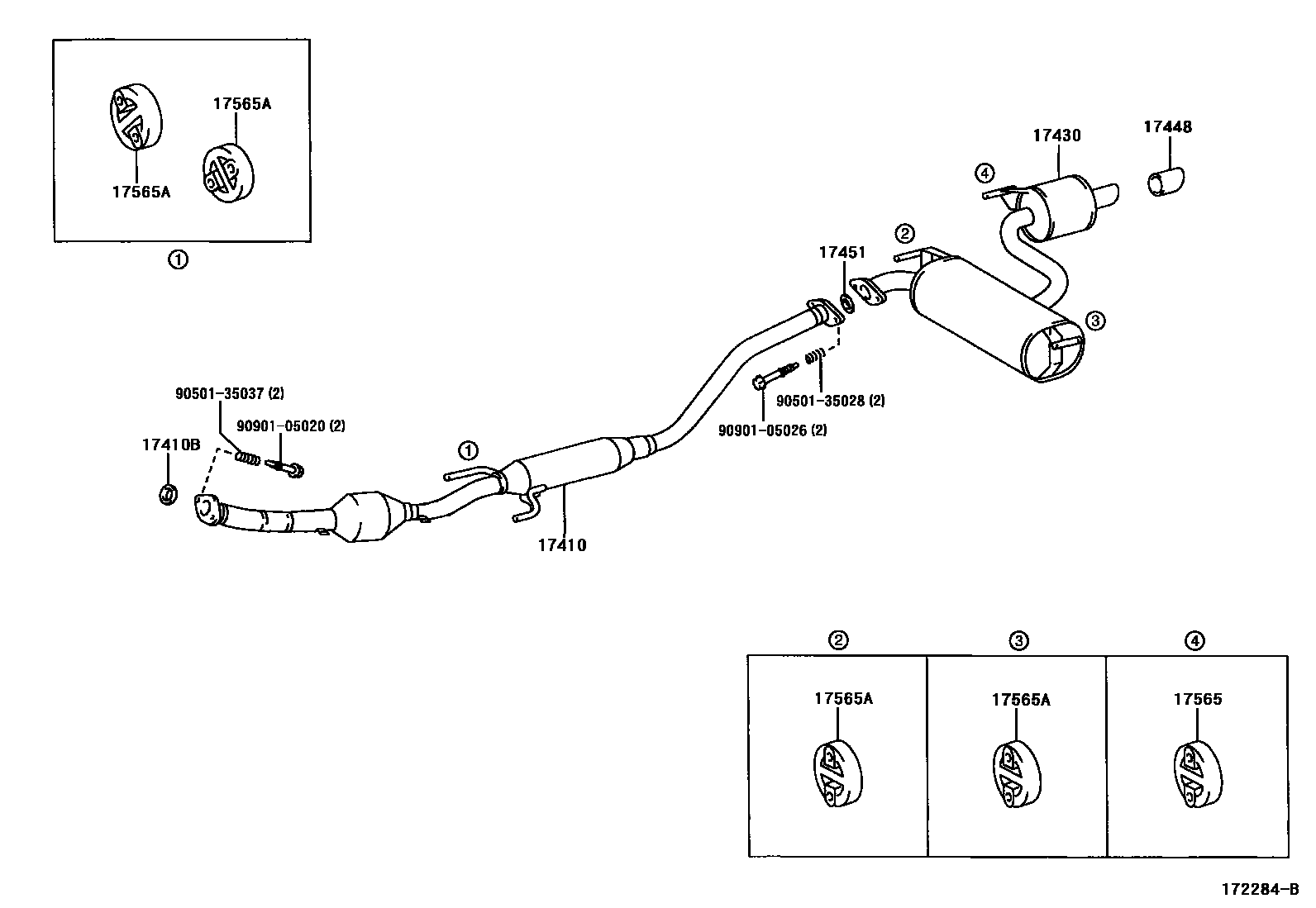

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-22080i1ZZFE..ZZT230199908-200208

*115=TOYOTA/99-/Y

main17410-22240i2ZZGE..ZZT231200008-200208

*114=TOYOTA/X38/Y

17410BGASKET, EXHAUST PIPE

main17451-22050i2ZZGE..ZZT231200008-200208

main17451-22070i1ZZFE..ZZT230199908-200208

17430PIPE ASSY, EXHAUST, TAIL

main17430-22070i1ZZFE..ZZT230199908-200208

main17430-22220i2ZZGE..ZZT231200008-200208

17448BAFFLE, TAILPIPE

main17408-46020i2ZZGE..ZZT231200008-200208

17451GASKET, EXHAUST PIPE

main17451-20010i1ZZFE..ZZT230199908-200208

main17451-22040i2ZZGE..ZZT231200008-200208

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-16270i1ZZFE,2ZZGE..ZZT23#199908-200208

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-46010×4i1ZZFE,2ZZGE..ZZT23#199908-200208

9050135028

main90501-35028

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

11 parts on this diagram · 1 diagram in section
