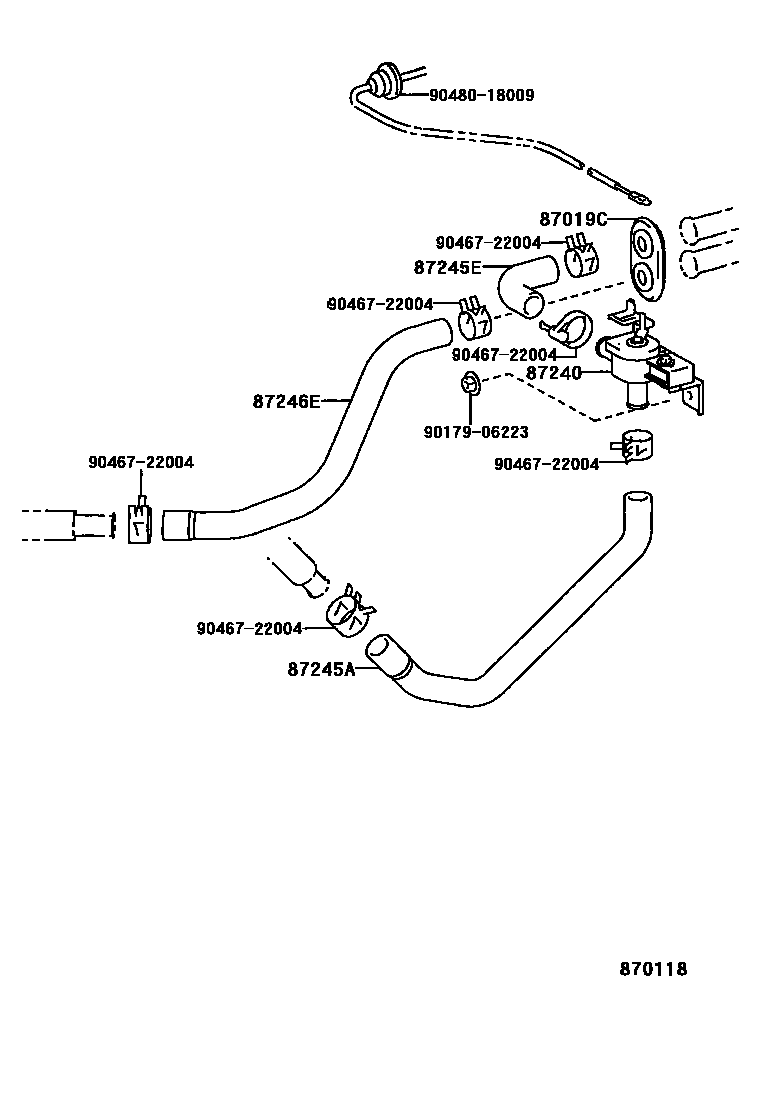

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87019CGROMMET, HEATER HOSE

main90480-01405iAT200,ST20#..RHD199311

main90480-01659iAT200,ST20#..LHD199311

INNER

main90480-36011iAT200,ST20#..LHD199311

OUTER

87240VALVE ASSY, HEATER WATER

main87240-20410iAT200,ST20#..RHD199311

main87240-20420iAT200,ST20#..LHD199311

87245AHOSE, HEATER WATER, INLET A

main87245-2D060iST20#..RHD199311

main87245-2D080iST20#..LHD199311

main87245-2D100iAT200..LHD199311

main87245-2D240iAT200..RHD199505

87245EHOSE, HEATER WATER, INLET E

main87245-2B510iAT200,ST20#..RHD199311

main99556-30100iAT200,ST20#..LHD199311

*H,L=55

87246EHOSE, HEATER WATER, OUTLET E

main87245-2D070iST20#..RHD199311

main87245-2D090iST20#..LHD199311

main87245-2D110iAT200..LHD199311

main87245-2D250iAT200..RHD199505

9017906223

main90179-06223

9046722004

main90467-22004

9048018009

main90480-18009

8 parts on this diagram · 2 diagrams in section
