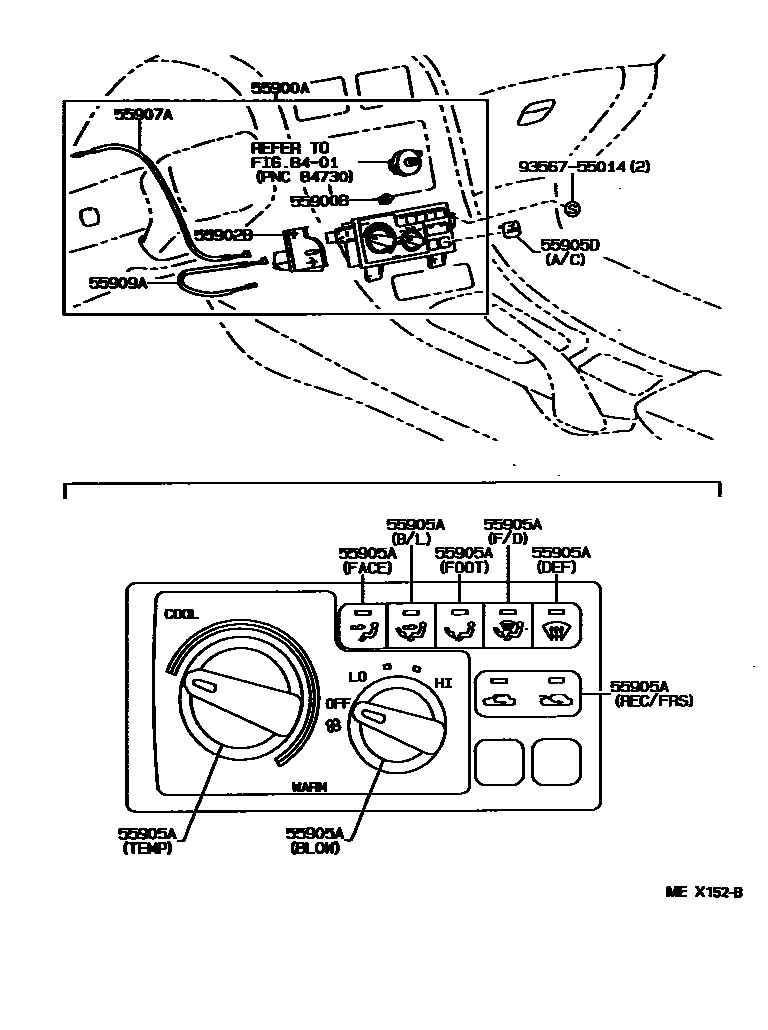

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL(MANUAL) 0002 1CONTROL(AUTO) 0003 1CONTROL(MANUAL) 0004 1CONTROL(AUTO) 0005 1DUCT 0006 1DUCT

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-2B200iAT200,ST20#..RHD199311

DEALER OPTION

main55900-2B210iAT200,ST20#..RHD199311

MAKER OPTION

main55900-2B230iAT200,ST20#..LHD199311

DEALER OPTION

main55900-2B240iAT200,ST20#..LHD199311

MAKER OPTION

55900BBULB, AIR CONDITIONER CONTROL

main84999-70007×3iAT200,ST20#199311

14V 1.4W

55902BCONTROL SUB-ASSY, HEATER

main55902-20140iAT200,ST20#..RHD199311

main55902-20150iAT200,ST20#..LHD199311

55905AKNOB, HEATER CONTROL

main55905-2B290iAT200,ST20#..LHD199311

A/C

main55905-2B300iAT200,ST20#..RHD199311

A/C

main55905-2B310iAT200,ST20#..RHD199311

ECON

main55905-2B320iAT200,ST20#199311

FACE

main55905-2B330iAT200,ST20#199311

BI-LEVEL

main55905-2B340iAT200,ST20#199311

FOOT

main55905-2B350iAT200,ST20#199311

FOOT/DEF

main55905-2B360iAT200,ST20#199311

DEF

main55905-2B370iAT200,ST20#..RHD199311

REAR DEF

main55905-2B380iAT200,ST20#199311

RECIRC/FRESH

main55905-2B390iAT200,ST20#..RHD199311

BLOW

main55905-33030iAT200,ST20#199311

TEMP

main55905-33040iAT200,ST20#..LHD199311

BLOW

55905DKNOB SUB-ASSY, CONTROL

main55905-2B290iAT200,ST20#..LHD199311

main55905-2B300iAT200,ST20#..RHD199311

A/C

main55905-2B310iAT200,ST20#..RHD199311

ECON

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-20370iAT200,ST20#..RHD199311

main55907-20380iAT200,ST20#..LHD199311

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-20230iAT200,ST20#..RHD199311

main55909-20240iAT200,ST20#..LHD199311

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9356755014

main93567-55014

9 parts on this diagram · 6 diagrams in section
