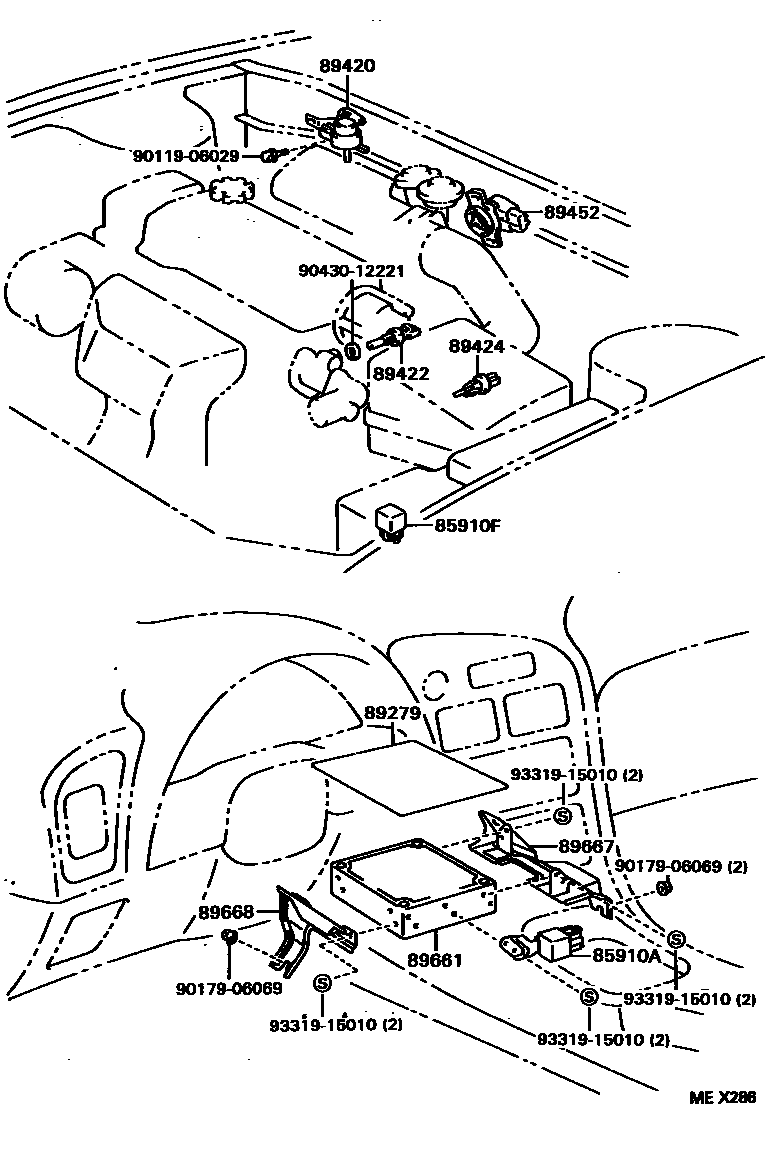

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-20040iAT200,ST20#..RHD199311

main85910-20050iAT200,ST20#..LHD199311

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iAT200,ST20#199311

89279COVER, ENGINE CONTROL COMPUTER

main89279-12020iAT200,ST20#199311-199508

main89279-20160iAT200199508

89420SENSOR ASSY, VACUUM

main89420-0W040iAT200,ST202199608

main89420-20300iAT200,ST202199311-199608

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iAT200,ST20#199311-199908

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAT200,ST20#199311

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22090iAT200,ST20#199311

89661COMPUTER, ENGINE CONTROL

main89661-2B790iAT200199311-199508

main89661-2B820iST202199311-199508

main89661-2B850iST205199402-199606

main89661-2D340iAT200..LHD199606-199712

main89661-2D470iAT200199606-199712

W(ENGINE IMMOBILIZER SYSTEM)

main89661-2D471iAT200199712

W(ENGINE IMMOBILIZER SYSTEM)

main89661-2D480iST202..LB199508-199512

main89661-2D530iAT200..LHD199508-199606

main89661-2D540iAT200199508-199606

W(ENGINE IMMOBILIZER SYSTEM)

main89661-2D660iST202199606-199712

main89661-2G100iST202199712

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-20320iAT200,ST205..RHD199402

main89667-20330iST202..RHD199311

main89667-20340iAT200,ST205..LHD199311-199508

main89667-20350iST202..LHD199311

main89667-20370iAT200..LHD199508

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20300iAT200,ST20#..RHD199311-199508

main89668-20310iAT200,ST20#..LHD199311

main89668-20330iAT200..RHD199508

9011906029

main90119-06029

9017906069

main90179-06069

9043012221

main90430-12221

9331915010

main93319-15010

14 parts on this diagram · 3 diagrams in section
