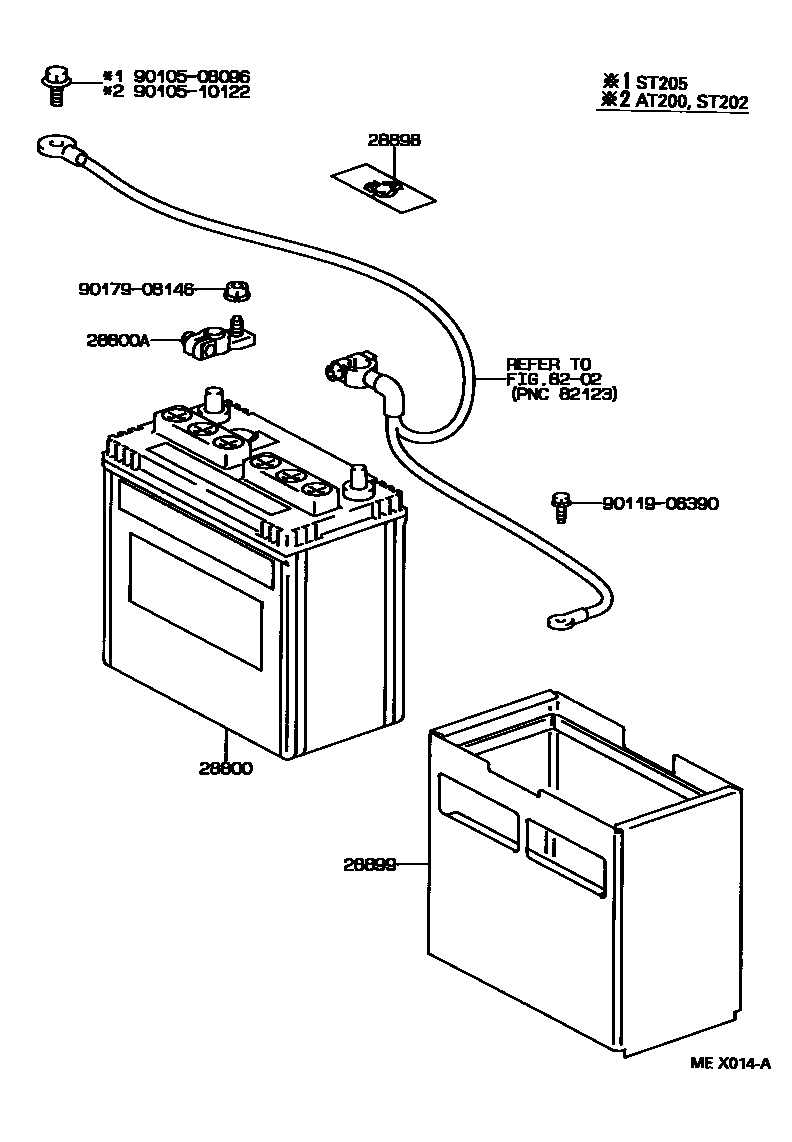

BATTERY & BATTERY CABLE

28800BATTERY

main28800-16130i7AFE,3SGE..AT200,ST202..LB199508

32B24L(S)

main28800-31010i7AFE,3SGE..AT200,ST202..LB199311-199508

32C24L

main28800-42030i7AFE,3SG#..AT200,ST20#199311-199606

55D23L

main28800-42031i7AFE,3SGE..AT200,ST202199606-199712

55D23L

main28800-64010i7AFE,3SGE..AT200,ST202199712

55D23L

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i7AFE,3SG#..AT200,ST20#199311-199508

main90982-05035i7AFE,3SGE..AT200,ST202199709

28898PLATE, BATTERY

main28898-46010i7AFE,3SGE..AT200,ST202..LHD199404-199508

main28898-50070i7AFE,3SGE..AT200,ST202..LHD199311-199404

28899INSULATOR, BATTERY

main28899-46020i7AFE,3SGE..AT200,ST202..LB199601

W(BATTERY=32B24L)

main28899-74120i7AFE,3SGE..AT200,ST202..LB199311-199508

W(BATTERY=32C24L)

main28899-74130i7AFE,3SG#..AT200,ST20#199311-199508

W(BATTERY=55D23L)

main28899-74160i7AFE,3SGE..AT200,ST202..LB199508-199601

W(BATTERY=32B24L)

main28899-74170i7AFE,3SG#..AT200,ST20#199512

W(BATTERY=55D23L)

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508096

main90105-08096

9010510122

main90105-10122

9011906390

main90119-06390

9017908146

main90179-08146

9 parts on this diagram · 1 diagram in section
