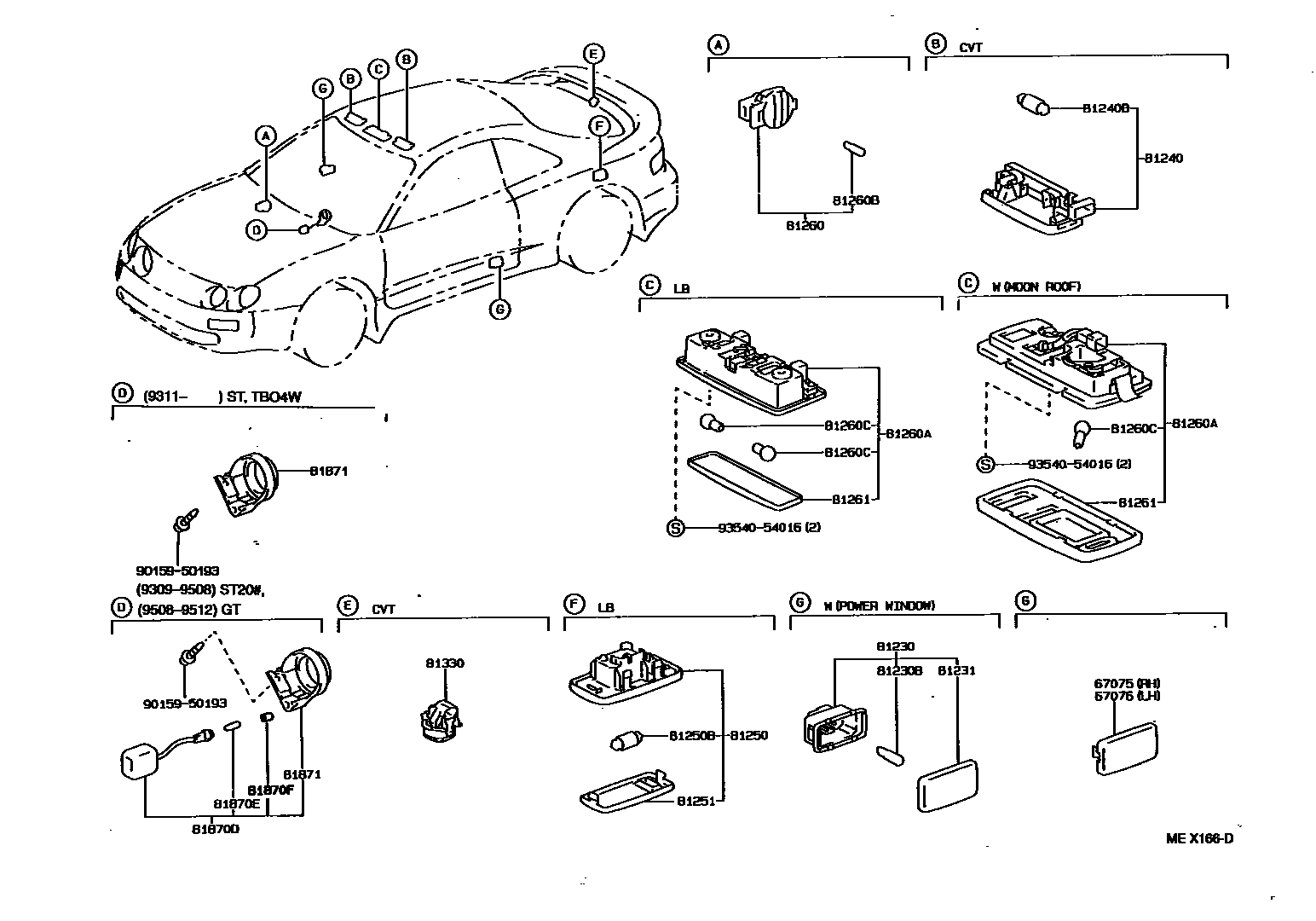

INTERIOR LAMP

67075REFLECTOR SUB-ASSY, FRONT DOOR TRIM, RH

main67665-20020iAT200..LHD199311

67076REFLECTOR SUB-ASSY, FRONT DOOR TRIM, LH

main67665-20020iAT200..LHD199311

81230LAMP ASSY, COURTESY

main81230-50040×2iAT200,ST20#199311

81230BBULB(FOR COURTESY LAMP)

main90981-11020×2iAT200,ST20#199311

12V 3.8W

81231LENS, COURTESY LAMP

main81231-50020×2iAT200,ST20#199311

81240LAMP ASSY, ROOM, NO.1

main81250-16040×2iST202..CVT199408-199512

main81260-20250×2iST202..CVT199512

81240BBULB, ROOM LAMP, NO.1

main90981-11016×2iST202..CVT199408

12V 5W

81250LAMP ASSY, ROOM, NO.2

main81250-12030-C0iAT200,ST20#..LB199311

BLACK,TRIM2#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAT200,ST20#..LB199311

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-12030iAT200,ST20#..LB199311

81260LAMP ASSY, GLOVE BOX

main81260-33010iAT200,ST20#199311

81260ALAMP ASSY, MAP

main81260-14080-B1iAT200,ST20#..LB199311-199508

LI.GRAY,TRIM2#

main81260-14080-B3iAT200,ST20#..LB199508

LT.GRAY,TRIM2#

main81260-20220-B0iAT200,ST20#..LB199311-199508

W(MOON ROOF),LI.GRAY,TRIM2#

main81260-20220-B1iAT200,ST202199712

W(MOON ROOF),LT.GRAY,TRIM2#

81260BBULB(FOR GLOVE BOX)

main90981-11018iAT200,ST20#199311

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90981-12005×2iAT200,ST20#..LB199311

12V 8W

main90981-12014iAT200,ST20#..LB199311

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-14080iAT200,ST20#..LB199311

main81261-20220-B0iAT200,ST20#..LB199311-199508

W(MOON ROOF),LI.GRAY,TRIM2#

main81261-20220-B2iAT200,ST20#..LB199508

W(MOON ROOF),LT.GRAY,TRIM2#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-0W010iST202..CVT199408

81870DLAMP ASSY, KEY CYLINDER

main81870-20040iST20#199311-199508

81870EBULB, KEY CYLINDER LAMP

main90981-11018iST20#199311-199508

12V 1.2W W/O SOCKET

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10080iST20#199311-199508

81871LENS, KEY ILLUMINATION

main81871-20030iAT200199311-199508

9015950193

main90159-50193

9354054016

main93540-54016

22 parts on this diagram · 1 diagram in section
