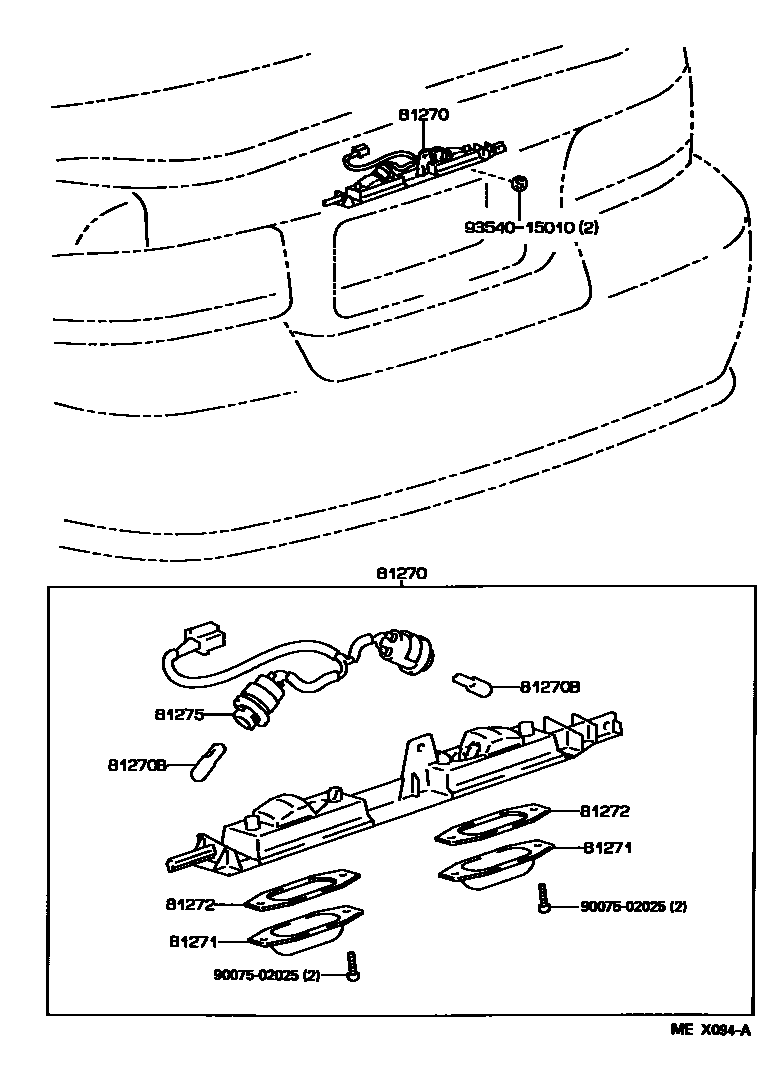

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-20590iAT200,ST20#199311

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iAT200,ST20#199311

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-20440×2iAT200,ST20#199311

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20590×2iAT200,ST20#199311

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-20590iAT200,ST20#199311

9007502025

main90075-02025

9354015010

main93540-15010

7 parts on this diagram · 1 diagram in section
