EPC Data

FRONT SEAT & SEAT TRACK

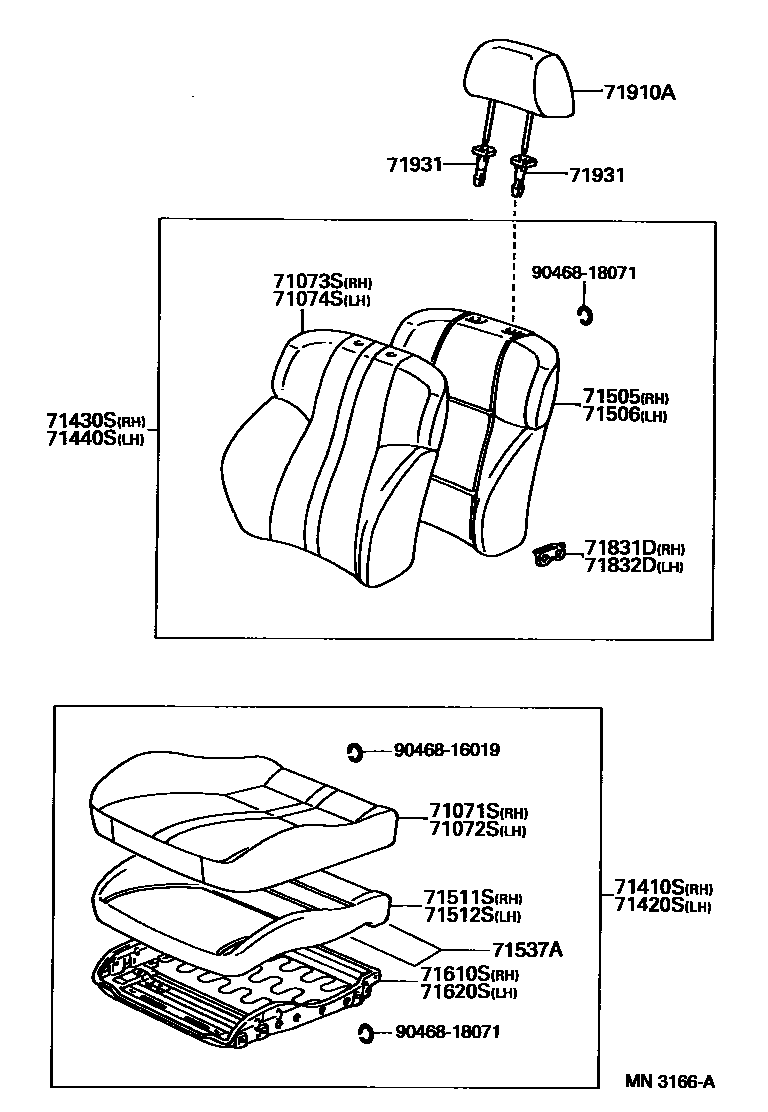

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-2G510-C1i199311-199508
BLACK,TRIM2#
main71071-2G540-C0i199311-199508
BLACK,TRIM2#
main71071-2G550-C0i199311-199508
W(SEAT HEATER),BLACK,TRIM2#
main71071-2G630-C0i199311-199508
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71071-2G640-C1i199508-199712
BLACK,TRIM2#
main71071-2G641-C2i199712
BLACK,TRIM2#
main71071-2G650-C1i199512-199712
BLACK,TRIM2#
main71071-2G670-C0i199508-199712
BLACK,TRIM2#
main71071-2G671-C1i199712
BLACK,TRIM2#
main71071-2G700-C3i199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71071-2G720-C0i199508-199712
W(SEAT HEATER),BLACK,TRIM2#
main71071-2G721-C1i199712
W(SEAT HEATER),BLACK,TRIM2#
main71071-2G730-C1i199508-199712
BLACK,TRIM2#
main71071-2G730-C4i199512-199712
BLACK,TRIM2#
main71071-2H100-C0i199712
BLACK,TRIM2#
main71071-2H130-C0i199712
BLACK,TRIM2#
main71072-2G060-C1i199505-199508
BLACK,TRIM2#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-2G510-C1i199505-199508
BLACK,TRIM2#
main71071-2G630-C0i199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71072-2D870-C0i199508-199512
BLACK,TRIM2#
main71072-2D880-C0i199311-199508
W(SEAT HEATER),BLACK,TRIM2#
main71072-2G050-C0i199508-199712
BLACK,TRIM2#
main71072-2G051-C1i199712
BLACK,TRIM2#
main71072-2G060-C1i199311-199508
BLACK,TRIM2#
main71072-2G090-C1i199508-199512
BLACK,TRIM2#
main71072-2G110-C1i199508-199512
BLACK,TRIM2#
main71072-2G111-C2i199712
BLACK,TRIM2#
main71072-2G120-C0i199508-199712
W(SEAT HEATER),BLACK,TRIM2#
main71072-2G121-C1i199712
W(SEAT HEATER),BLACK,TRIM2#
main71072-2G130-C0i199508-199712
W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
main71072-2G131-C1i199712
W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
main71072-2G160-C1i199508-199712
BLACK,TRIM2#
main71072-2G161-C2i199712
BLACK,TRIM2#
main71072-2G170-C1i199508-199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71072-2G440-C0i199712
BLACK,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-2G360-C1i199311-199508
BLACK,TRIM2#
main71073-2G390-C0i199311-199508
BLACK,TRIM2#
main71073-2G400-C0i199311-199508
W(SEAT HEATER),BLACK,TRIM2#
main71073-2G480-C0i199311-199508
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71073-2G520-C1i199512-199712
BLACK,TRIM2#
main71073-2G521-C3i199712
BLACK,TRIM2#
main71073-2G550-C0i199508-199712
BLACK,TRIM2#
main71073-2G551-C1i199712
BLACK,TRIM2#; W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
main71073-2G580-C3i199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71073-2G590-C1i199512-199712
BLACK,TRIM2#
main71073-2G591-C3i199712
BLACK,TRIM2#
main71073-2G600-C0i199508-199712
W(SEAT HEATER),BLACK,TRIM2#
main71073-2G601-C1i199712
W(SEAT HEATER),BLACK,TRIM2#
main71073-2G620-C1i199508-199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71073-2G640-C1i199508-199712
W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
main71073-2G641-C2i199712
BLACK,TRIM2#
main71073-2G830-C1i199508-199712
BLACK,TRIM2#
main71073-2H060-C0i199610-199612
25TH ANNIVERSARY(UK),BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-2G360-C1i199311-199508
BLACK,TRIM2#
main71073-2G480-C0i199508-199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71073-2G520-C1i199512-199712
BLACK,TRIM2#
main71073-2G521-C3i199712
BLACK,TRIM2#
main71073-2G530-C0i199508-199712
W(SEAT HEATER),BLACK,TRIM2#
main71073-2G531-C1i199712
W(SEAT HEATER),BLACK,TRIM2#
main71073-2G550-C0i199508-199712
W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
main71073-2G551-C1i199712
W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
main71073-2G580-C0i199508
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71073-2G580-C3i199508-199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71073-2G590-C1i199512-199712
BLACK,TRIM2#
main71073-2G591-C3i199712
BLACK,TRIM2#
main71073-2G620-C1i199508
LEATHER SEAT,BLACK,TRIM2#
main71073-2G640-C1i199508-199712
BLACK,TRIM2#; W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
main71073-2G641-C2i199712
BLACK,TRIM2#
main71073-2G831-C2i199712
BLACK,TRIM2#
main71073-2H070-C0i199610-199612
25TH ANNIVERSARY(UK),BLACK,TRIM2#
main71074-2D840-C0i199311-199504
BLACK,TRIM2#
main71074-2D840-C2i199408-199504
BLACK,TRIM2#
main71074-2D850-C0i199311-199508
W(SEAT HEATER),BLACK,TRIM2#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-2G580-C1i199508-199712
BLACK,TRIM2#
main71410-2G580-C4i199512-199712
XXXX,TRIM2#
main71410-2H070-C2i199508-199512
W(LEATHER SEAT),BLACK,TRIM2#
main71410-2H140-C1i199311-199508
BLACK,TRIM2#
main71410-2H150-C1i199508-199512
BLACK,TRIM2#
main71410-2H190-C0i199311-199508
W(SEAT HEATER),BLACK,TRIM2#
main71410-2H240-C1i199311-199508
BLACK,TRIM2#
main71410-2H300-C1i199508-199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71410-2H330-C1i199508-199512
BLACK,TRIM2#
main71410-2H350-C0i199508-199712
BLACK,TRIM2#
main71410-2H351-C1i199712
BLACK,TRIM2#
main71410-2H370-C1i199508-199712
BLACK,TRIM2#
main71410-2H371-C2i199712
BLACK,TRIM2#
main71410-2H380-C0i199508-199712
W(SEAT HEATER),BLACK,TRIM2#
main71410-2H381-C1i199712
W(SEAT HEATER),BLACK,TRIM2#
main71410-2H670-C0i199712
BLACK,TRIM2#
main71410-2H680-C0i199712
BLACK,TRIM2#
main71420-2G660-C1i199505-199508
BLACK,TRIM2#
main71420-2G830-C1i199311-199508
W(LEATHER SEAT),BLACK,TRIM2#
main71420-2G830-C3i199508-199512
W(LEATHER SEAT),BLACK,TRIM2#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71410-2H140-C1i199505-199508
BLACK,TRIM2#
main71410-2H300-C1i199311-199508
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71420-2G210-C0i199508-199712
BLACK,TRIM2#
main71420-2G211-C1i199712
BLACK,TRIM2#
main71420-2G580-C1i199512-199712
BLACK,TRIM2#
main71420-2G581-C2i199712
BLACK,TRIM2#
main71420-2G660-C1i199311-199508
BLACK,TRIM2#
main71420-2G670-C1i199311-199508
BLACK,TRIM2#
main71420-2G710-C0i199311-199508
W(SEAT HEATER),BLACK,TRIM2#
main71420-2G760-C1i199311-199508
BLACK,TRIM2#
main71420-2G830-C1i199311-199508
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71420-2G830-C3i199508-199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71420-2G870-C1i199508-199512
BLACK,TRIM2#
main71420-2H010-C1i199508-199712
BLACK,TRIM2#
main71420-2H011-C2i199712
BLACK,TRIM2#
main71420-2H020-C1i199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71420-2H050-C0i199508-199712
W(SEAT HEATER),BLACK,TRIM2#
main71420-2H051-C1i199712
W(SEAT HEATER),BLACK,TRIM2#
main71420-2H060-C0i199508-199712
W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
main71420-2H061-C1i199712
W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
main71420-2H320-C0i199712
BLACK,TRIM2#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-2H020-C1i199311-199508
BLACK,TRIM2#
main71430-2H030-C1i199311-199508
BLACK,TRIM2#
main71430-2H070-C0i199311-199508
W(SEAT HEATER),BLACK,TRIM2#
main71430-2H190-C1i199311-199508
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71430-2H220-C1i199512-199712
BLACK,TRIM2#
main71430-2H221-C3i199712
BLACK,TRIM2#
main71430-2H240-C0i199508-199712
BLACK,TRIM2#
main71430-2H241-C1i199712
BLACK,TRIM2#
main71430-2H250-C1i199508-199512
BLACK,TRIM2#
main71430-2H251-C3i199712
BLACK,TRIM2#
main71430-2H280-C1i199508-199712
BLACK,TRIM2#
main71430-2H281-C3i199712
BLACK,TRIM2#
main71430-2H290-C2i199508-199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71430-2H310-C0i199508-199712
W(SEAT HEATER),BLACK,TRIM2#
main71430-2H311-C1i199712
W(SEAT HEATER),BLACK,TRIM2#
main71430-2H320-C1i199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71430-2H710-C0i199610-199612
25TH ANNIVERSARY(UK),BLACK,TRIM2#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71430-2H020-C1i199311-199508
BLACK,TRIM2#
main71430-2H120-C1i199508-199512
BLACK,TRIM2#
main71430-2H130-C0i199311-199508
W(SEAT HEATER),BLACK,TRIM2#
main71430-2H190-C1i199508-199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71430-2H220-C1i199508-199512
BLACK,TRIM2#
main71430-2H221-C3i199712
BLACK,TRIM2#
main71430-2H240-C0i199508-199712
W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
main71430-2H241-C1i199712
W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
main71430-2H250-C1i199512-199712
BLACK,TRIM2#
main71430-2H251-C3i199712
BLACK,TRIM2#
main71430-2H280-C1i199508-199712
BLACK,TRIM2#
main71430-2H281-C3i199712
BLACK,TRIM2#
main71430-2H290-C2i199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71430-2H320-C1i199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71430-2H330-C0i199508-199712
W(SEAT HEATER),BLACK,TRIM2#
main71430-2H331-C1i199712
W(SEAT HEATER),BLACK,TRIM2#
main71430-2H610-C1i199508-199712
BLACK,TRIM2#
main71430-2H611-C2i199712
BLACK,TRIM2#
main71430-2H720-C0i199610-199612
25TH ANNIVERSARY(UK),BLACK,TRIM2#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-20280i199311-199508
main71505-20290i199311-199508
main71505-20360i199508-199512
main71505-20370i199508
main71505-20410i199508-199512
main71505-20420i199508
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71505-20280i199311-199508
main71505-20290i199311-199508
main71505-20360i199512
main71505-20370i199508
main71505-20410i199508-199512
main71505-20420i199508
W(KAIPER VERTICAL ADJUSTER)
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-20680i199508-199512
main71511-20730i199508-199512
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-20680i199508-199512
W(KAIPER VERTICAL ADJUSTER)
main71511-20720i199508
main71511-20730i199512
71537APROTECTOR, FRONT SEAT CUSHION
main71537-20090×2i199512
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-20520i199311-199508
main71610-20530i199311
main71610-20550i199508-199512
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-20520i199311-199508
main71610-20530i199311
W(KAIPER VERTICAL ADJUSTER)
main71610-20540i199508
main71610-20550i199508-199512
71831DCOVER, FRONT SEAT HINGE, RH
main71831-20030i199512
71832DCOVER, FRONT SEAT HINGE, LH
main71832-20010×2i199311-199508
71910AHEADREST ASSY, FRONT SEAT
main71910-2B760-C0×2i199508-199512
BLACK,TRIM2#
main71910-2B770-C0×2i199311-199507
BLACK,TRIM2#
main71910-2B771-C0×2i199507-199508
BLACK,TRIM2#
main71910-2B800-C1×2i199311-199507
BLACK,TRIM2#
main71910-2B801-C1×2i199508-199512
BLACK,TRIM2#
main71910-2B860-C0×2i199508
BLACK,TRIM2#
main71910-2B880-C0×2i199508-199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
main71910-2D150-C0×2i199508-199512
W(SPORTS SEAT & LEATHER SEAT),BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-12070-C0×2i199311-199412
W(LOCK),BLACK,TRIM2#
main71930-20120-C0×2i199508-199512
W(LOCK),BLACK,TRIM2#
main71930-21050-C0×2i199703
W(LOCK),BLACK,TRIM2#
main71930-32020-C0×2i199412-199703
W(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
main71930-44010-C0×2i199703
W(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
main71931-12040-C0×2i199311-199412
W/O(LOCK),BLACK,TRIM2#
main71931-20080-C0×2i199508-199512
W/O(LOCK),BLACK,TRIM2#
main71931-32020-C0×2i199412
W/O(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2#
9046816019
main90468-16019
9046818071
main90468-18071

21 parts on this diagram · 5 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
