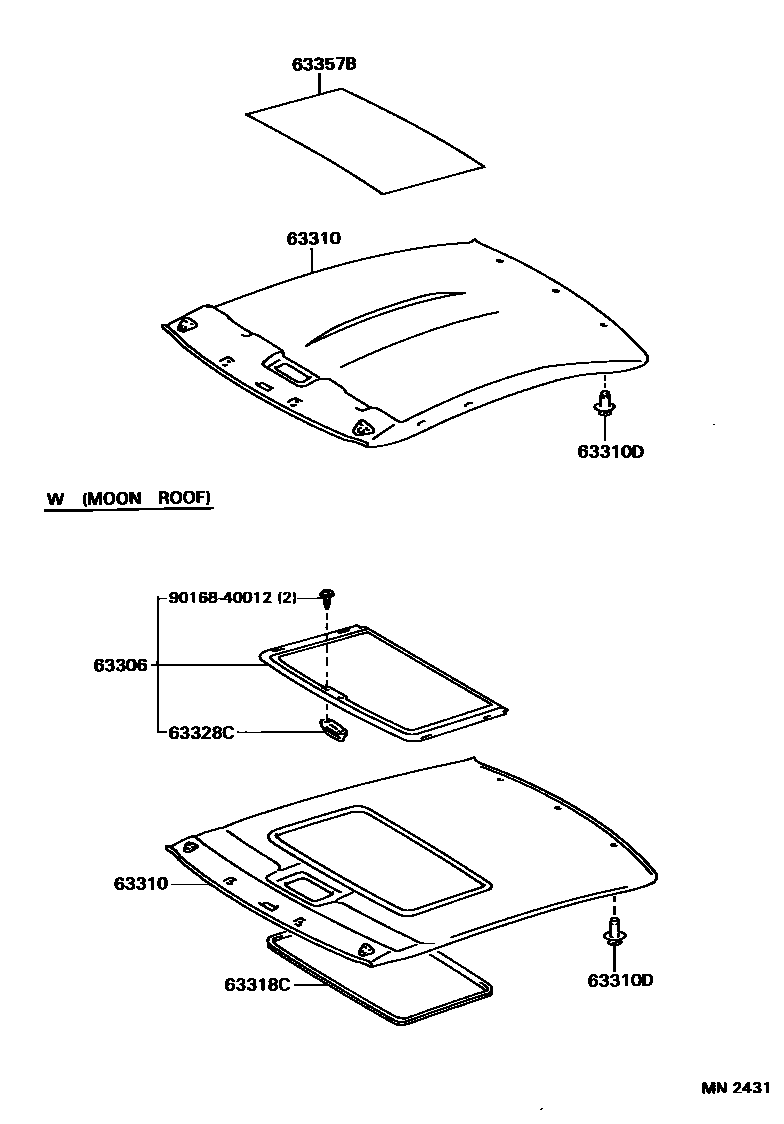

ROOF HEADLINING & SILENCER PAD

63306TRIM SUB-ASSY, SUNSHADE

main63306-20050-B0iAT200,ST20#..LB199311-199508

SHADOW GRAY,TRIM2#

main63306-20050-B1iAT200,ST20#..LB199508

LT. GRAY,TRIM2#

63310HEADLINING ASSY, ROOF

main63310-2B430-B0iAT200,ST20#..LB199311-199508

SHADOW GRAY,TRIM2#

main63310-2B440-B0iAT200,ST20#..LB199311-199508

W(MOON ROOF),SHADOW GRAY,TRIM2#

main63310-2B440-B1iAT200,ST20#..LB199508

W(MOON ROOF),LT. GRAY,TRIM2#

main63310-2B590-B0iAT200,ST20#..LB199508

LT. GRAY,TRIM2#

63310DCLIP, ROOF HEADLINING

main90467-09169-B0×3iAT200,ST20#..LB199311-199508

LI.GRAY,TRIM2#

main90467-09169-B2×3iAT200,ST20#..LB199508

LT.GRAY,TRIM2#

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-20120-B0iAT200,ST20#..LB199311-199508

SHADOW GRAY,TRIM2#

main63318-20120-B1iAT200,ST20#..LB199508

LT. GRAY,TRIM2#

63328CKNOB, SUNSHADE TRIM

main63328-33010-B1iAT200,ST20#..LB199311-199508

SHADOW GRAY,TRIM2#

main63328-33010-B5iAT200,ST20#..LB199508

LT.GRAY,TRIM2#

63357BSILENCER, ROOF

main63357-90B05×2iAT200,ST20#..LB199311

9016840012

main90168-40012

7 parts on this diagram · 1 diagram in section
