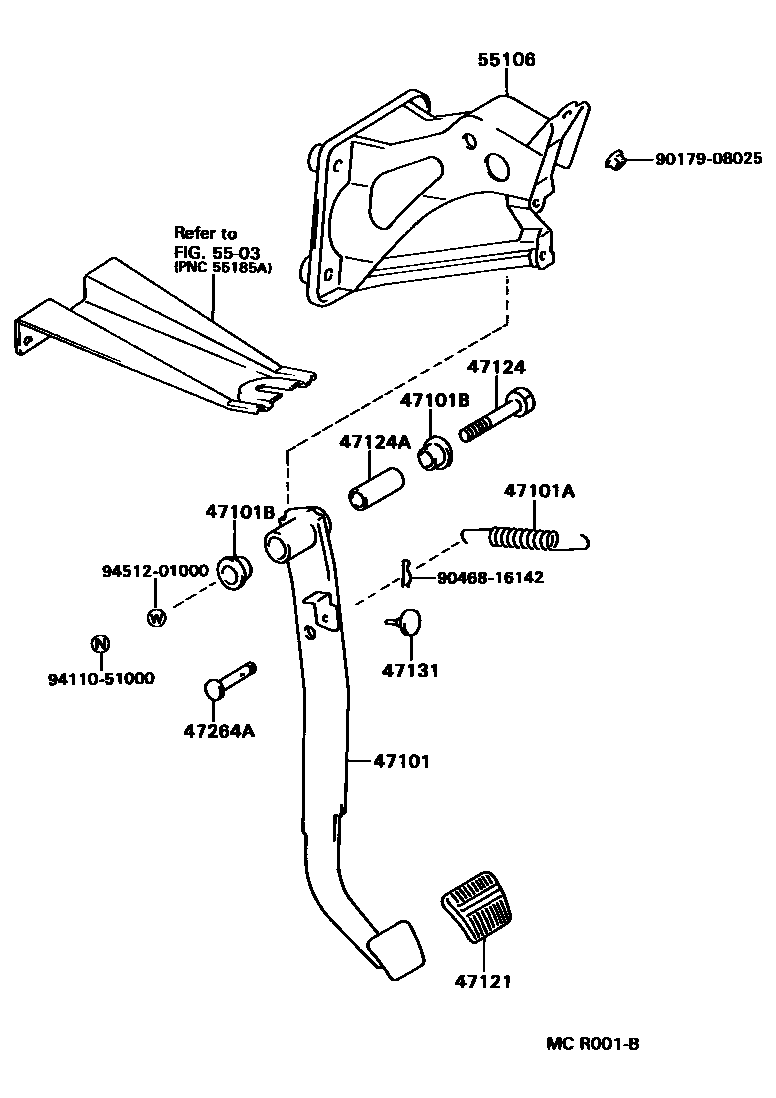

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-20520iAT200,ST20#..RHD199311

main47101-20540iAT200,ST20#..LHD199311

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-16016iAT200,ST20#199311

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iAT200,ST20#199311

47121PAD, BRAKE PEDAL

main31321-14020iAT200,ST20#199311

47124SHAFT, BRAKE PEDAL

main90101-10015iAT200,ST20#199311

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iAT200,ST20#199311

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iAT200,ST20#199311

47264APIN(FOR PUSH ROD)

main47148-12050iAT200,ST20#..RHD199311

main47148-20020iAT200,ST20#..LHD..LB; ST202..LHD..CVT199508-199512

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-20390iAT200,ST20#..RHD199311-199508

main55106-20400iAT200,ST20#..LHD199311

main55106-20410iAT200,ST20#..RHD199311

W(ABS)

9017908025

main90179-08025

9046816142

main90468-16142

9411051000

main94110-51000

9451201000

main94512-01000

14 parts on this diagram · 2 diagrams in section
