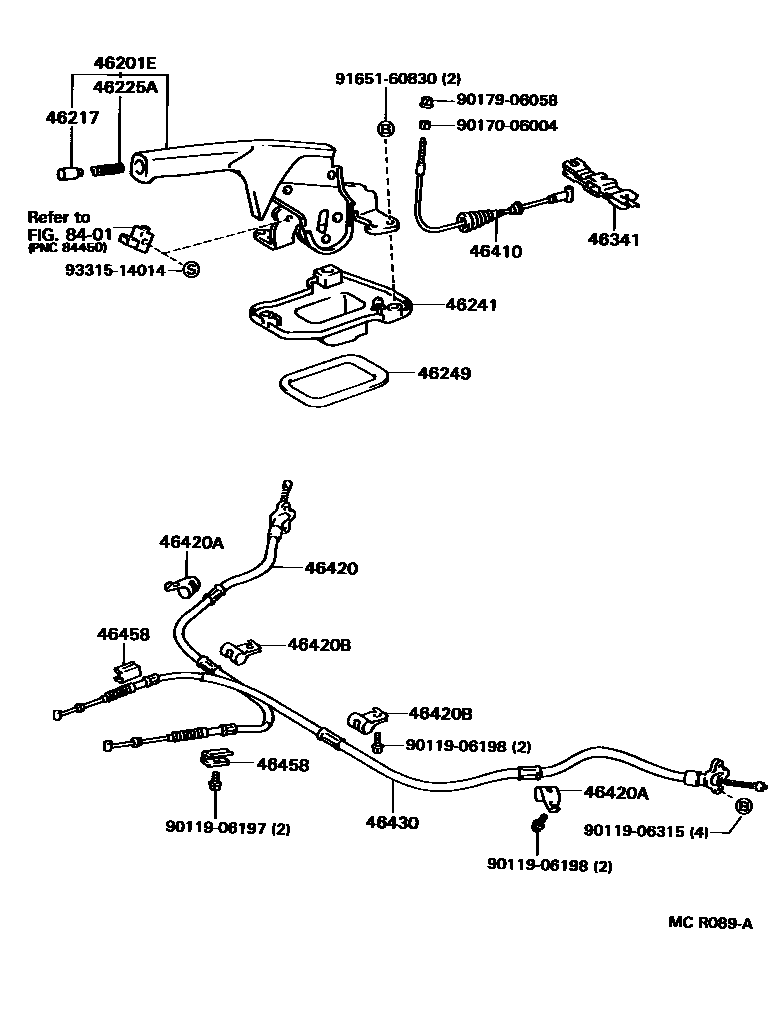

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-20310-C0iAT200,ST20#..RHD199311

BLACK,TRIM2#

main46201-20320-C0iAT200,ST20#..LHD199311

BLACK,TRIM2#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-20040-C0iAT200,ST20#199311

BLACK,TRIM2#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iAT200,ST20#199311

46241BOOT, PARKING BRAKE LEVER

main46241-20140iAT200,ST20#..RHD199311-199506

main46241-20150iAT200,ST20#..LHD199311

main46241-20160iAT200,ST20#..RHD199506

46249SHIELD, PARKING BRAKE HOLE

main46249-20070iAT200,ST20#199311

46341EQUALIZER, PARKING BRAKE

main46341-24010iAT200,ST20#199311

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20420iAT200,ST20#199311

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-20420iST205199402-199606

main46420-20440iAT200,ST202199311

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01554iST205199402-199606

RH

main90949-01555iST205199402-199606

LH

main90949-01746×2iAT200,ST202199311

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01552×2iAT200,ST202199311

main90949-01556iST205199402-199606

RH

main90949-01557iST205199402-199606

LH

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-20500iST205199402-199606

main46430-20520iAT200,ST202199311

46458RETAINER, CABLE

main46458-28010×2iAT200,ST20#199311

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906197

main90119-06197

9011906198

main90119-06198

9011906315

main90119-06315

9017006004

main90170-06004

9017906058

main90179-06058

9165160830

main91651-60830

9331514014

main93315-14014

20 parts on this diagram · 2 diagrams in section
