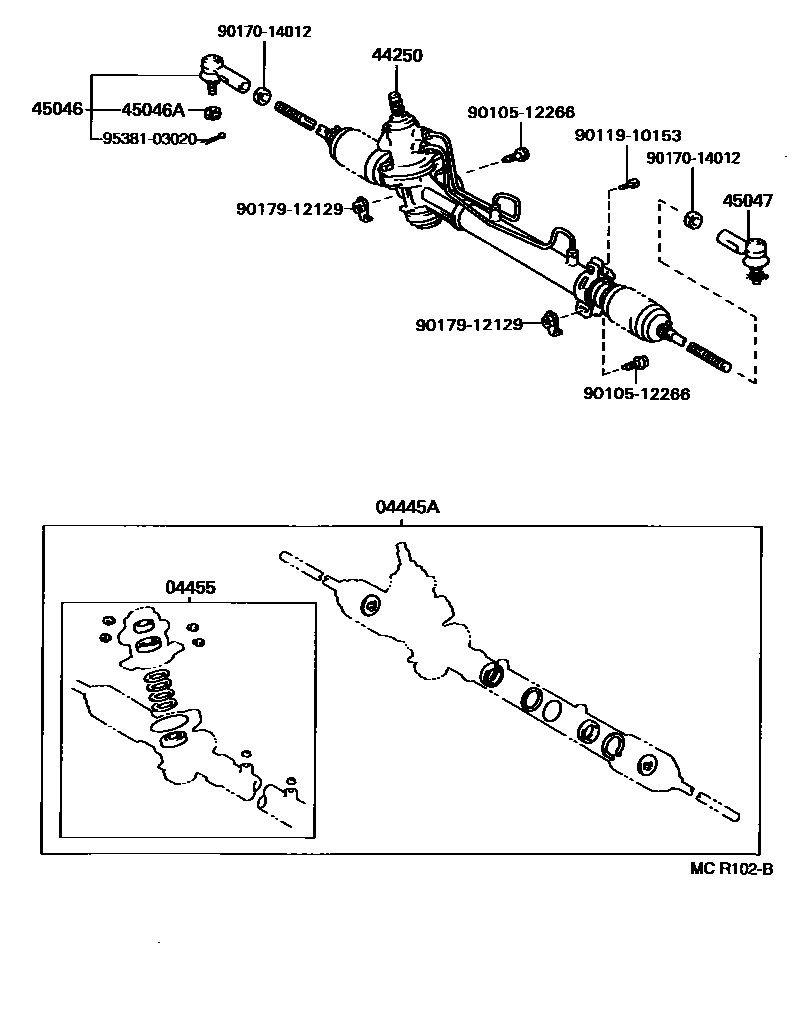

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20180iAT200,ST20#199311

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20140iAT200,ST20#199311

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20630iAT200,ST202..RHD199311-199908

main44250-20640iAT200,ST202..LHD199311-199908

main44250-20650iST20#..RHD..LB199311-199908

W(SUPER STRUT SUSPENSION)

main44250-20660iST202..LHD..LB199311-199908

W(SUPER STRUT SUSPENSION)

main44250-20700iST205..LHD199402-199606

45046END SUB-ASSY, TIE ROD, RH

main45046-29295iST20#..LB199311

W(SUPER STRUT SUSPENSION)

main45046-29305iAT200,ST202199311

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAT200,ST20#199311

45047END SUB-ASSY, TIE ROD, LH

main45046-29305iAT200,ST202199311

main45047-29085iST20#..LB199311

W(SUPER STRUT SUSPENSION)

9010512266

main90105-12266

9011910153

main90119-10153

9017014012

main90170-14012

9017912129

main90179-12129

9538103020

main95381-03020

11 parts on this diagram · 4 diagrams in section
