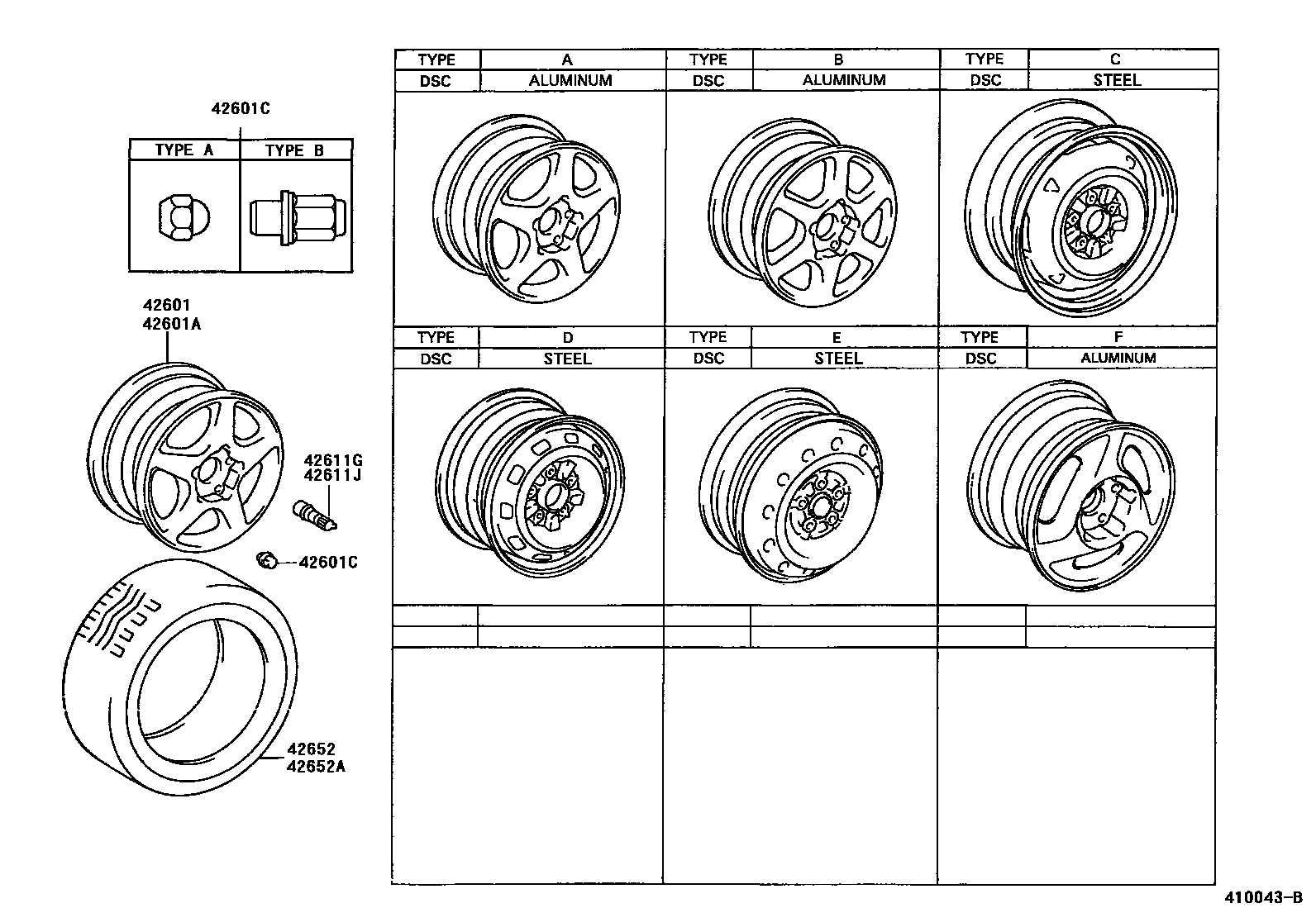

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-20880-01×4iAT200199311

14X6JJ,TYPE D:REFER TO ILLUSTRATION,BLACK

main42611-2B060×4iAT200,ST202199311-199508

15X7JJ TMH,TYPE A:REFER TO ILLUSTRATION

main42611-2B090×4iST205199402-199508

16X7.5JJ,TYPE F:REFER TO ILLUSTRATION

main42611-2B100×4iAT200199311

14X6JJ NO MARK,TYPE B:REFER TO ILLUSTRATION

main42611-2B130×4iAT200,ST202..LB199508-199512

15X7JJ TMH,TYPE A:REFER TO ILLUSTRATION

main42611-2B140×4iST205199508-199606

16X7.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-2B190×4iAT200199606

14X6JJ TMH,TYPE B:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-20800iAT200,ST202199311-199312

16X4T,SPARE,TYPE C:REFER TO ILLUSTRATION

main42611-20840iAT200,ST202199312

16X4T,TYPE C:REFER TO ILLUSTRATION

main42611-20880-01iAT200199311

14X6JJ,TYPE D:REFER TO ILLUSTRATION,BLACK

main42611-2B060iAT200,ST202199311-199508

15X7JJ TMH,TYPE A:REFER TO ILLUSTRATION

main42611-2B080iST205199402-199606

17X4T,TYPE E:REFER TO ILLUSTRATION

main42611-2B090iST205199402-199508

16X7.5JJ,TYPE F:REFER TO ILLUSTRATION

main42611-2B100iAT200199311

14X6JJ NO MARK,TYPE B:REFER TO ILLUSTRATION

main42611-2B130iAT200,ST202..LB199508-199512

15X7JJ TMH,TYPE A:REFER TO ILLUSTRATION

main42611-2B140iST205199508-199606

16X7.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-2B190iAT200199606

14X6JJ TMH,TYPE B:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01021×20iAT200199311

TYPE A:REFER TO ILLUSTRATION

main90942-01058×20iAT200,ST20#199508

TYPE B:REFER TO ILLUSTRATION

main90942-01062×20iST205199402-199508

TYPE B:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iAT200,ST20#199311

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAT200,ST20#199311

42652TIRE

main42652-2B350×4iAT200,ST202199311-199508

205/55R15

main42652-2B380×4iAT200199311-199508

195/65R14

main42652-2B381×4iAT200199508

195/65R14

main42652-2B390×4iST205199402-199606

215/50ZR16

42652ATIRE (FOR SPARE)

main42652-20760iAT200,ST202199311-199608

T135/70D16

main42652-24050iAT200,ST202199608

T135/70D16

main42652-2B350iST202..CVT199508-199512

205/55R15

main42652-2B380iAT200199311-199508

195/65R14

main42652-2B381iAT200199508

195/65R14

main42652-2B390iST205199402-199606

215/50ZR16

main42652-2B470iST205199402-199606

T125/70D17

7 parts on this diagram · 3 diagrams in section
