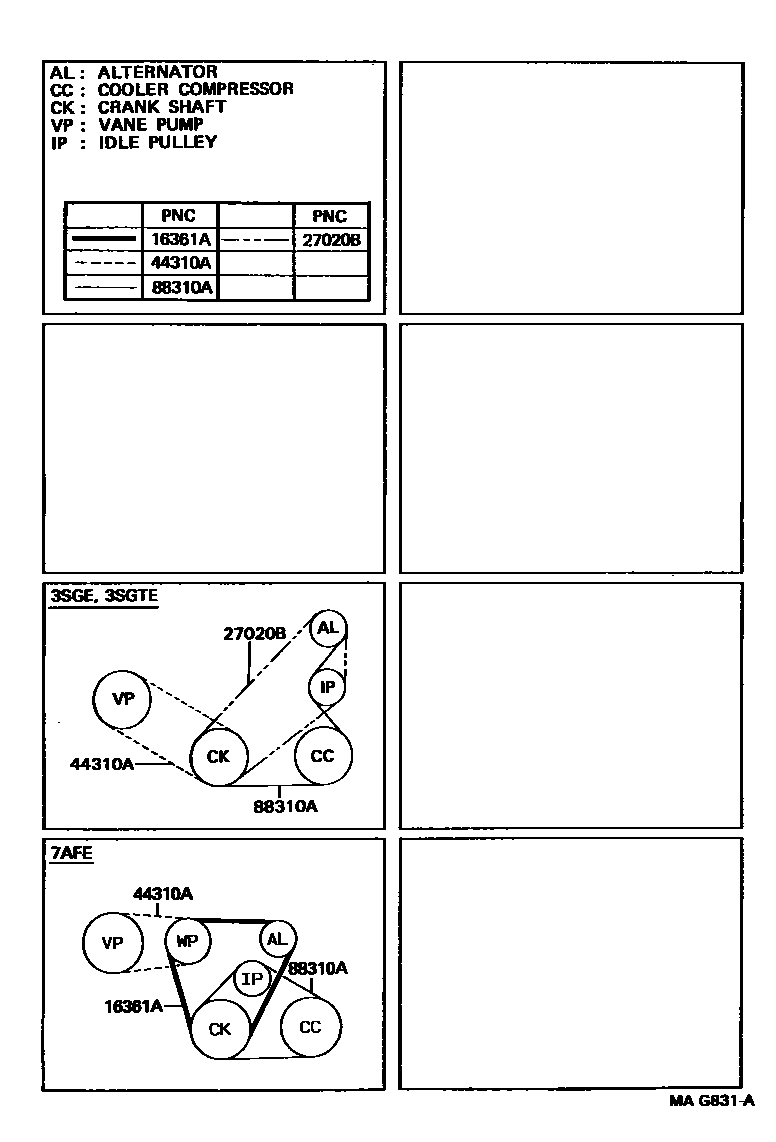

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91055i7AFE..AT200199311

(L)

main99365-20970i7AFE..AT200199311

(J)

27020BBELT, V(FOR ALTERNATOR)

main90916-02402i3SG#..ST20#199311-199508

MITSUBOSHI

main90916-02403i3SG#..ST20#199311-199508

BANDO

44310ABELT, V(FOR VANE PUMP)

main90916-02205iST20#199311-199406

main99363-10630iAT200199311-199406

main99363-80630iAT200199406-199604

main99363-80760iST20#199406-199604

main99363-90630iAT200199604

main99363-90760iST20#199604

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02354iAT200199508

main90916-02395iST205199508-199606

main90916-02396iST205199402-199508

MITSUBOSHI

main99364-20860iAT200199311-199508

MITSUBOSHI

main99364-80860iAT200199311-199508

BANDO

main99365-81120iST202199512

4 parts on this diagram · 1 diagram in section
