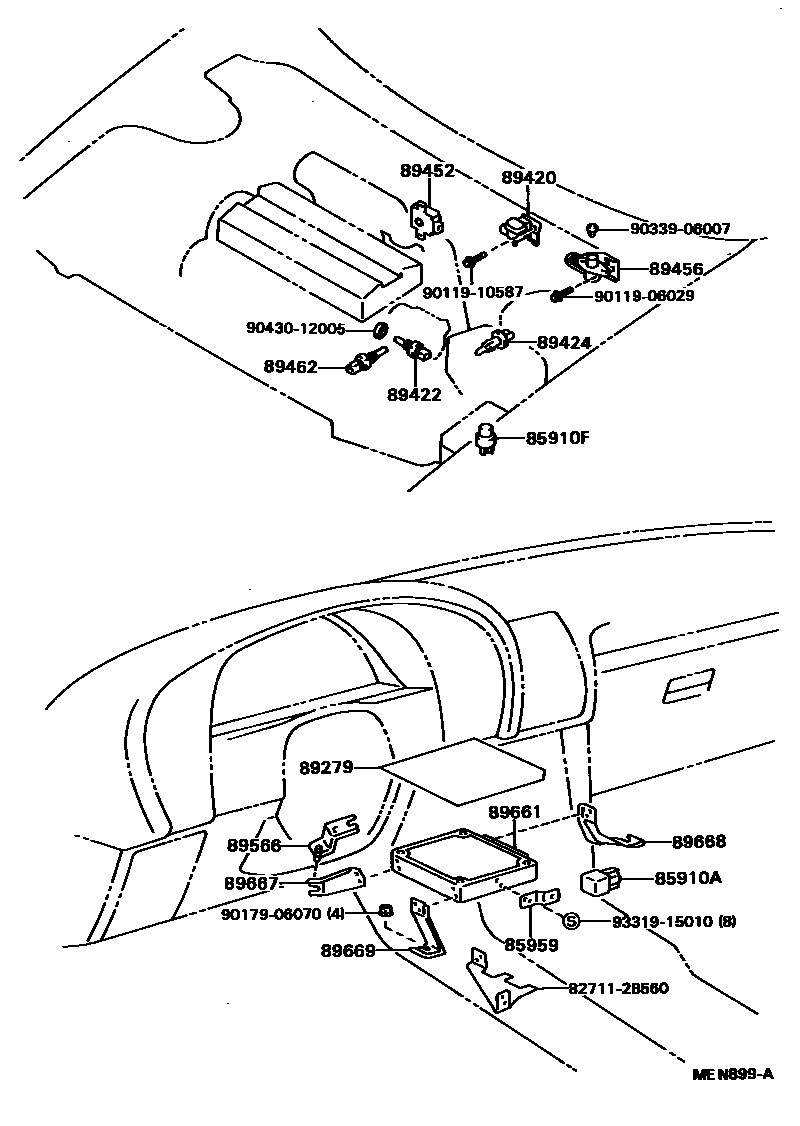

ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
85959HOLDER, RELAY
89279COVER, ENGINE CONTROL COMPUTER
89420SENSOR ASSY, VACUUM
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89462SWITCH, START INJECTOR TIME
89566BRACKET, FUEL INJECTION COMPUTER
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
827112B560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B560
9011906029
main90119-06029
9011910587
main90119-10587
9017906070
main90179-06070
9033906007
main90339-06007
9043012005
main90430-12005
9331915010
main93319-15010
22 parts on this diagram · 3 diagrams in section
