HEADLAMP

0001 1 0002 1W/LEVELING

81110HEADLAMP ASSY, RH

main81110-2B390iAT180,ST18#..LHD198910-199311

main81110-2B400iAT180,ST18#..LHD198910-199211

W(HALOGEN YELLOW HEADLAMP)

main81110-2B410iAT180..G198910-199008

*FRG & W(HALOGEN WHITE HEADLAMP)

main81110-2B420iST18#..RHD198910-199311

main81110-2B490iST18#..RHD198910-199311

UNITED KINGDOM SPEC

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iAT180,ST18#198910-199311

12V 60/55W,*HAL *WH

main90981-13016×2iAT180,ST18#..LHD198910-199211

12V 60/55W,*HAL *YE,W(HALOGEN YELLOW HEADLAMP)

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-2B360iAT180,ST18#..CP,LB; ST182..CVT199108-199109

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-2B360iAT180,ST18#198910-199211

main81113-2B410iST18#..LHD..G198911-199008

*FRG

81121SPRING, HEADLAMP TENSION

main81121-12570×2iAT180,ST18#..LHD..(CVT,LB)..G199109-199311

*FRG

main81121-17010×2iAT180,ST18#199109-199211

81131SCREW, HEADLAMP ADJUSTING

main90075-00003×4iAT180,ST18#199211-199311

81135UNIT ASSY, HEADLAMP, RH

main81130-2B390iAT180..G198910-199008

*FRG & W(HALOGEN WHITE HEAD LAMP)

main81130-2B400iAT180,ST18#..LHD198910-199211

W(HALOGEN YELLOW HEAD LAMP)

main81130-2B420iST18#..RHD198910-199311

main81130-2B490iST18#..RHD..LB199108-199311

UNITED KINGDOM SPEC

81150HEADLAMP ASSY, LH

main81150-2B340iST18#..RHD198910-199311

UNITED KINGDOM SPEC

main81150-2B390iAT180,ST18#..LHD198910-199311

main81150-2B400iAT180,ST18#..LHD198910-199211

W(HALOGEN YELLOW HEADLAMP)

main81150-2B410iAT180,ST18#..LHD..(CVT,LB)..G199008-199311

*FRG

main81150-2B420iST18#..RHD198910-199311

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-2B360iAT180,ST18#198910-199311

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-2B360iAT180,ST18#199211-199311

main81153-2B410iST18#..LHD..G198911-199008

*FRG

81175UNIT ASSY, HEADLAMP, LH

main81170-2B340iST18#..RHD..LB199108-199311

UNITED KINGDOM SPEC

main81170-2B390iST18#..RHD..LB198910-199108

RH TRAFFIC SPEC

main81170-2B400iAT180,ST18#..LHD198910-199211

W(HALOGEN YELLOW HEADLAMP)

main81170-2B420iST18#..RHD198910-199311

85660AMOTOR ASSY, LIGHT RETRACTOR, RH

main85660-20030iAT180,ST18#198910-199008

main85660-20031iAT180,ST18#199008-199311

main85660-20040iAT180,ST18#..LHD..G198910-199008

*FRG

main85660-20041iAT180,ST18#..LHD..(CVT,LB)..G199008-199311

*FRG

85690AMOTOR ASSY, LIGHT RETRACTOR, LH

main85690-20030iAT180,ST18#198910-199008

main85690-20031iAT180,ST18#199008-199311

main85690-20040iAT180,ST18#..LHD..G198910-199008

*FRG

main85690-20041iAT180,ST18#..LHD..(CVT,LB)..G199008-199311

*FRG

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9018905015

main90189-05015

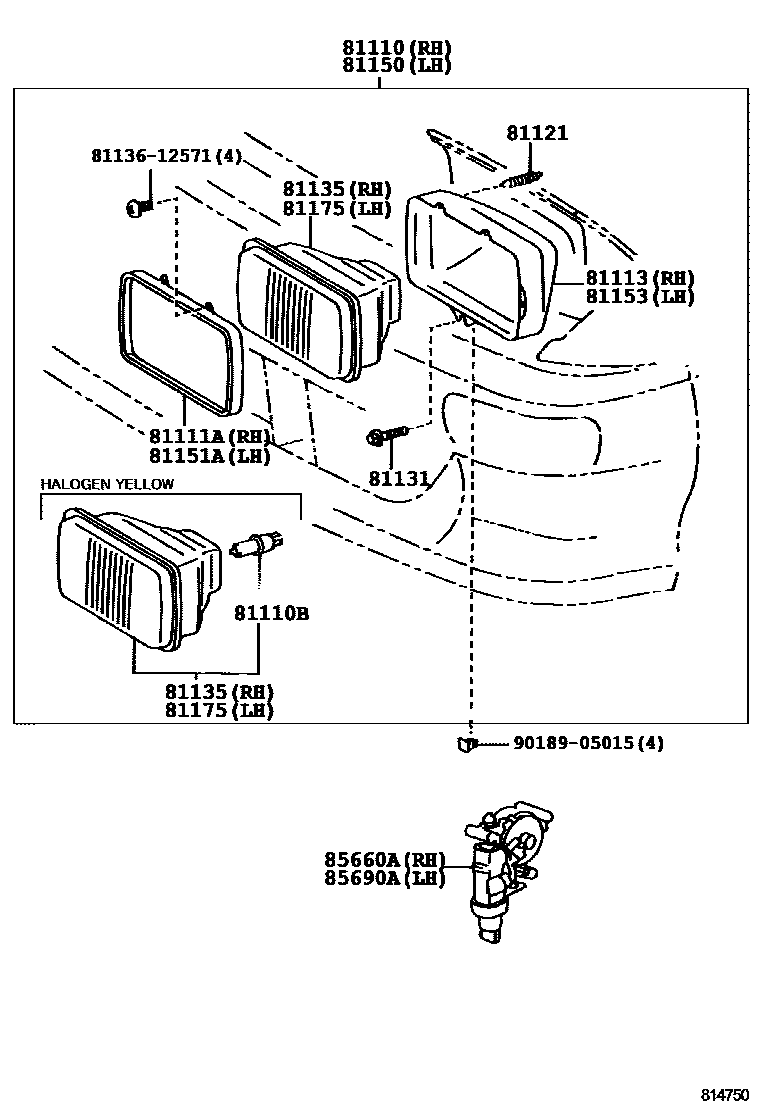

15 parts on this diagram · 2 diagrams in section
