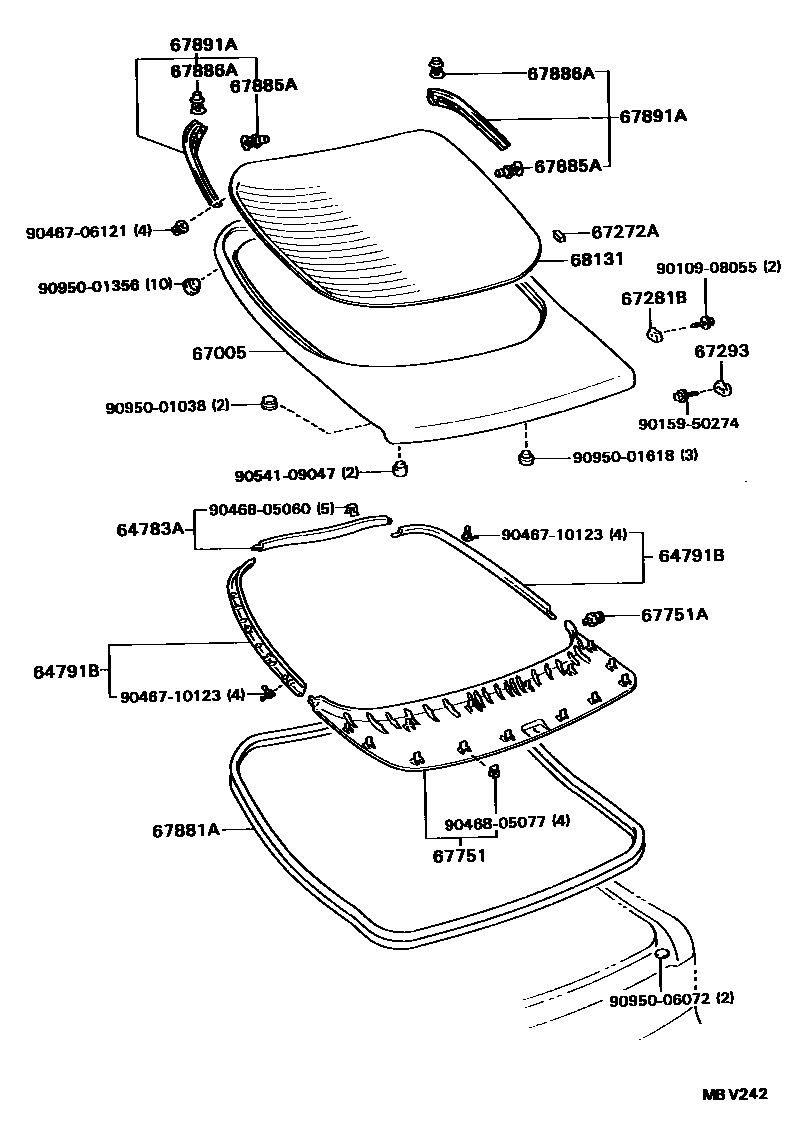

BACK DOOR PANEL & GLASS
64783ATRIM, BACK WINDOW PANEL, UPPER
64791BCOVER, BACK DOOR TRIM
SHADOW GRAY,TRIM1#,RH
DARK BLUE,TRIM8#,RH
67005PANEL SUB-ASSY, BACK DOOR
W(REAR WINDOW WIPER)
W(REAR SPOILER-BIG TYPE)
W(REAR SPOILER-BIG TYPE)
W(REAR SPOILER & REAR WINDOW WIPER)
W(REAR SPOILER-SMALL TYPE)
NORWAY SPEC
W(REAR SPOILER-SMALL TYPE)
W(REAR WINDOW WIPER)
W(REAR SPOILER-BIG TYPE)
W(REAR SPOILER-BIG TYPE)
W(REAR SPOILER & REAR WINDOW WIPER)
W(REAR SPOILER-SMALL TYPE)
67272ACUSHION, BACK DOOR STOPPER, NO.2
67281BSTOPPER, BACK DOOR, LOWER
67293CUSHION, BACK DOOR LOWER STOPPER
67751BOARD, BACK DOOR TRIM
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
67881AWEATHERSTRIP, BACK DOOR
67885ACLAMP, BACK DOOR WEATHERSTRIP, NO.1 RH
67886ACLAMP, BACK DOOR WEATHERSTRIP, NO.1 LH
67891ASEAL, BACK DOOR
RH
LH
68131GLASS, BACK DOOR
*EHTT,T=4.0,BLUE
*EHTT,T=4.0,BLUE,COLD SPEC
9010908055
main90109-08055
9015950274
main90159-50274
9046706121
main90467-06121
9046710123
main90467-10123
9046805060
main90468-05060
9046805077
main90468-05077
9054109047
main90541-09047
9095001038
main90950-01038
9095001356
main90950-01356
9095001618
main90950-01618
9095006072
main90950-06072
24 parts on this diagram · 1 diagram in section
