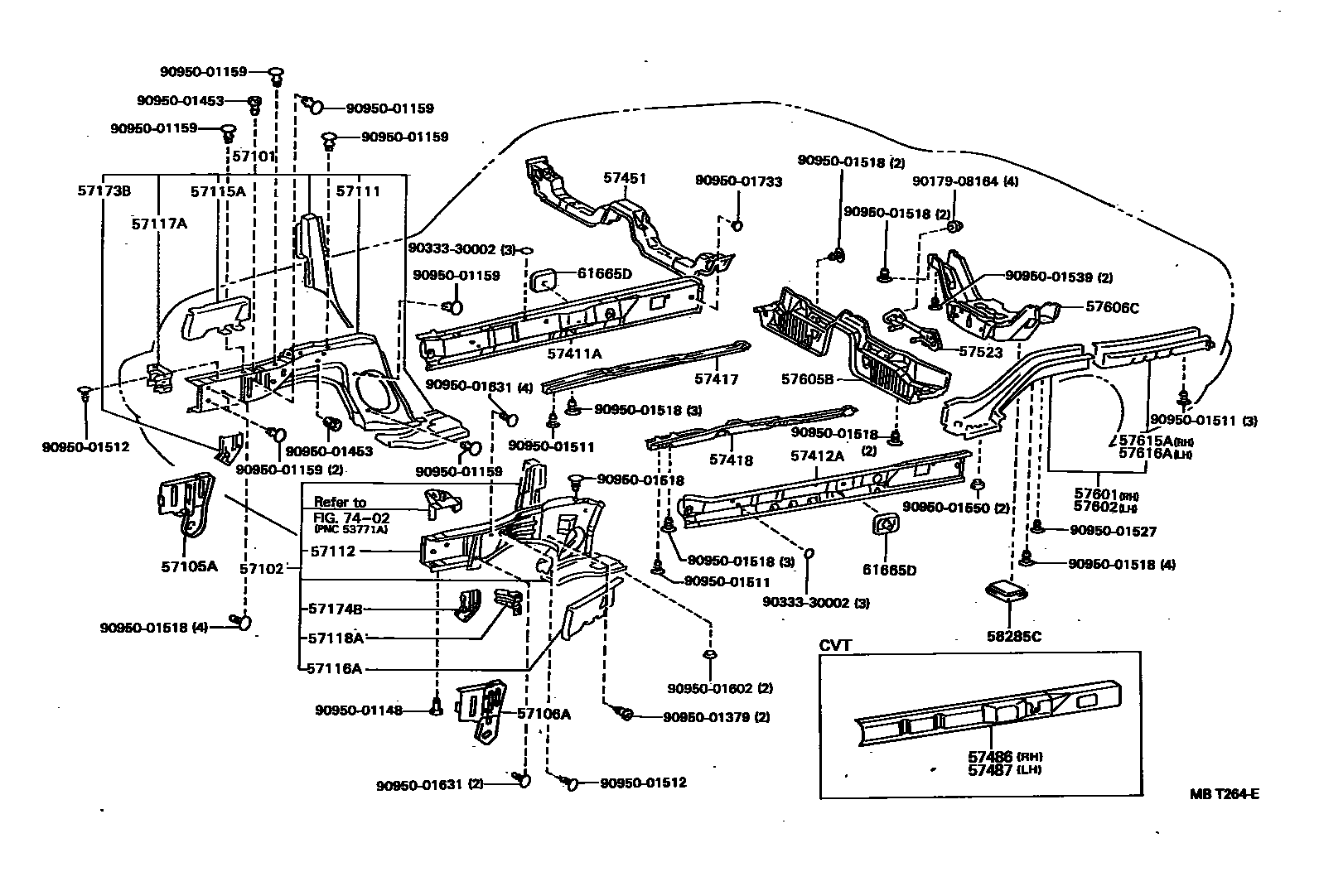

FLOOR SIDE MEMBER

0001 1 0002 1

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20680iST18#198910-199311

main57101-20700iAT180198910-199311

main57101-20730iST185..LHD199108-199202

WEST GERMANY SPEC

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20600iST18#198910-199311

main57102-20710iAT180198910-199311

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-20060iAT180,ST18#198910-199311

main57105-20080iST185..LHD199108-199202

WEST GERMANY SPEC

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-20060iAT180,ST18#198910-199311

57111MEMBER, FRONT SIDE, RH

main57111-20210iAT180,ST18#198910-199311

57112MEMBER, FRONT SIDE, LH

main57112-20220iAT180,ST18#198910-199106

main57112-20221iAT180,ST18#199106-199311

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-20140iAT180,ST18#198910-199311

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-20150iAT180,ST18#198910-199311

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-20070iAT180,ST18#198910-199311

main57117-20090iST185..LHD199108-199202

WEST GERMANY SPEC

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-20040iAT180,ST18#198910-199311

57173BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57173-20030iAT180,ST18#198910-199311

57174BREINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH

main57174-20030iAT180,ST18#198910-199311

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-20100iAT180,ST18#198910-199311

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-20220iAT180,ST18#198910-199311

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20030iST185198910-199311

main57417-20060iAT180,ST182198910-199311

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20040iST185198910-199311

main57418-20060iAT180,ST182198910-199311

57451MEMBER, FRONT FLOOR CROSS

main57408-20040iST185198910-199311

main57408-20050iAT180,ST182198910-199311

57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-20050iST182..CVT199010-199311

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-20050iST182..CVT199010-199311

57523BRACE, CENTER FLOOR CROSSMEMBER

main57503-20010iAT180,ST182198910-199311

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20240iAT180,ST182198910-199311

main57601-20340iST185198910-199311

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20240iAT180,ST182198910-199311

main57602-20330iST185198910-199311

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-20050iST185198910-199311

main57605-20080iAT180,ST182198910-199311

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-20100iAT180,ST182198910-199311

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-20907iAT180,ST182198910-199311

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-20906iAT180,ST182198910-199311

58285CCOVER, REAR FLOOR HOLE

main58285-20020iAT180,ST182198910-199311

61665DPLATE, SAFETY BELT ANCHORAGE

main61665-22010iAT180,ST18#..CP,LB198910-199311

7402BATTERY CARRIER

→ Go to FIG 74-02

9017908164

main90179-08164

9033330002

main90333-30002

9095001148

main90950-01148

9095001159

main90950-01159

9095001379

main90950-01379

9095001453

main90950-01453

9095001511

main90950-01511

9095001512

main90950-01512

9095001518

main90950-01518

9095001527

main90950-01527

9095001539

main90950-01539

9095001550

main90950-01550

9095001602

main90950-01602

9095001631

main90950-01631

9095001733

main90950-01733

44 parts on this diagram · 2 diagrams in section
