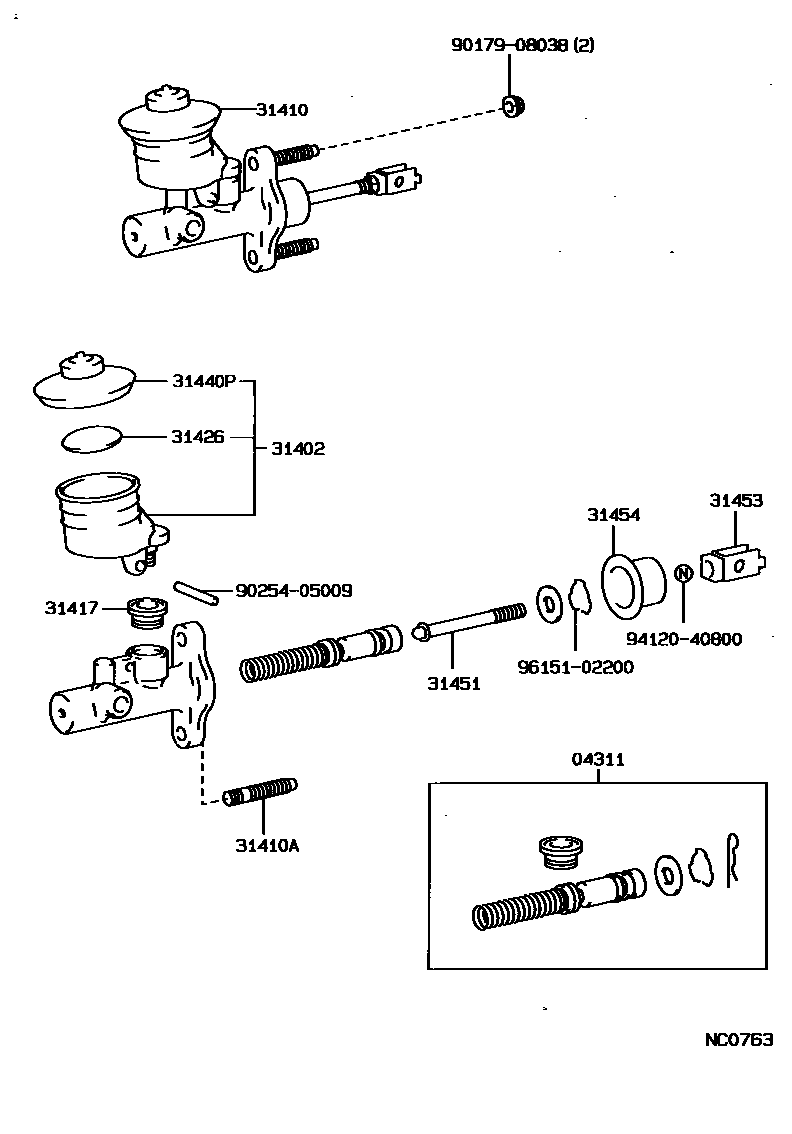

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-22040iAT180,ST18#..MTM198910-199311

sub04311-12080

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20040iST182..RHD..MTM198910-199311

main31402-20050iAT180,ST18#..LHD198910-199311

main31402-20060iST185..RHD198910-199311

31410CYLINDER ASSY, CLUTCH MASTER

main31410-20380iST182..RHD..MTM198910-199311

main31410-20470iAT180,ST18#..LHD198910-199311

main31410-20510iST185..RHD198910-199311

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAT180,ST18#..MTM198910-199311

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iAT180,ST18#..MTM198910-199311

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iAT180,ST18#..MTM198910-199311

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-36010iST185..RHD198910-199311

main47230-20040iST185..LHD;AT180,ST182..MTM198910-199311

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20090iST182..RHD..MTM198910-199311

main31451-20100iST185..RHD199008-199012

sub31451-22080

main31451-22080iST185..RHD199012-199311

main31451-35070iAT180,ST18#..LHD198910-199311

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-35010iAT180,ST18#..MTM198910-199311

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iST185..RHD199012-199311

main31454-16010iST185..LHD;AT180,ST182..MTM199204-199311

main31454-20040iST185..RHD199008-199012

sub31454-14010

main31454-24010iST182..RHD..G198910-199303

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

9615102200

main96151-02200

14 parts on this diagram · 2 diagrams in section
