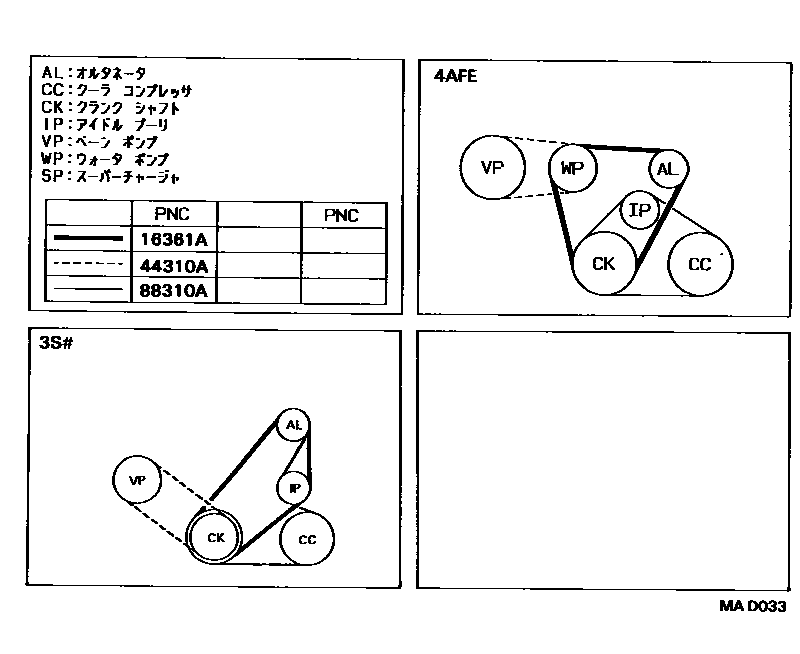

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02293i3SGE..ST182..LHD..NOB; 3SGE..ST182..LHD..WIB; 3SGE..ST182..RHD; 3SGTE..ST185198910-199206

main90916-02357i3SG#..ST18#199206-199311

MITSUBOSHI

main90916-02358i3SG#..ST18#199206-199311

BANDO

main99365-10970i4AFE..AT180198910-199005

main99365-20970i4AFE..AT180199005-199311

44310ABELT, V(FOR VANE PUMP)

main90916-02205iST18#198910-199311

main99363-10630iAT180199008-199311

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02116iST182..LHD..LB; ST182..RHD..LB; ST185198910-199011

W(AIR CONDITIONER)

main90916-02340iST185; ST185..TBO4W199011-199311

main99364-20850iAT180199008-199311

L=850

main99364-80850iAT180199211-199311

BANDO

main99365-21100iST182..RHD..LB198910-199011

L=1100,W(AIR CONDITIONER = DOP)

main99365-81100iST182..LB199211-199311

L=1100,BANDO

3 parts on this diagram · 1 diagram in section
