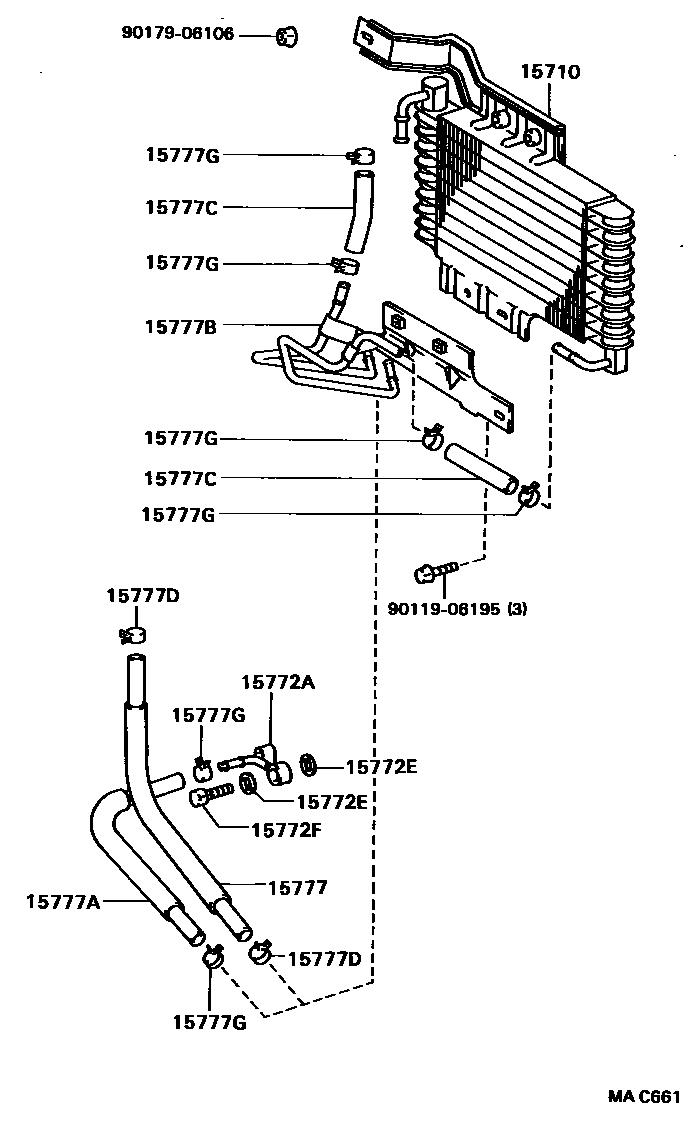

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15710COOLER ASSY, OIL

main15700-88360i3SGE..ST182198910-199311

main15700-88380i3SGTE..ST185198910-199311

main15710-16040i4AFE..AT180198910-199311

15772AUNION(FOR OIL PIPE)

main90405-10030i4AFE..AT180198910-199311

15772EGASKET(FOR OIL PIPE)

main90430-12018×2i4AFE..AT180198910-199004

main90430-12027×2i4AFE..AT180199004-199311

15772FBOLT, UNION(FOR OIL PIPE)

main90401-12009i4AFE..AT180198910-199311

15777HOSE, OIL COOLER

main15776-15030i4AFE..AT180198910-199311

15777AHOSE, OIL COOLER

main15778-16050i4AFE..AT180198910-199311

15777BPIPE, OIL COOLER

main15767-16100i4AFE..AT180198910-199311

15777CHOSE, OIL COOLER

main15779-16030×2i4AFE..AT180198910-199311

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main90467-15018×2i4AFE..AT180198910-199311

15777GCLAMP OR CRIP, HOSE

main90467-15018×6i4AFE..AT180198910-199311

9011906195

main90119-06195

9017906106

main90179-06106

12 parts on this diagram · 3 diagrams in section
