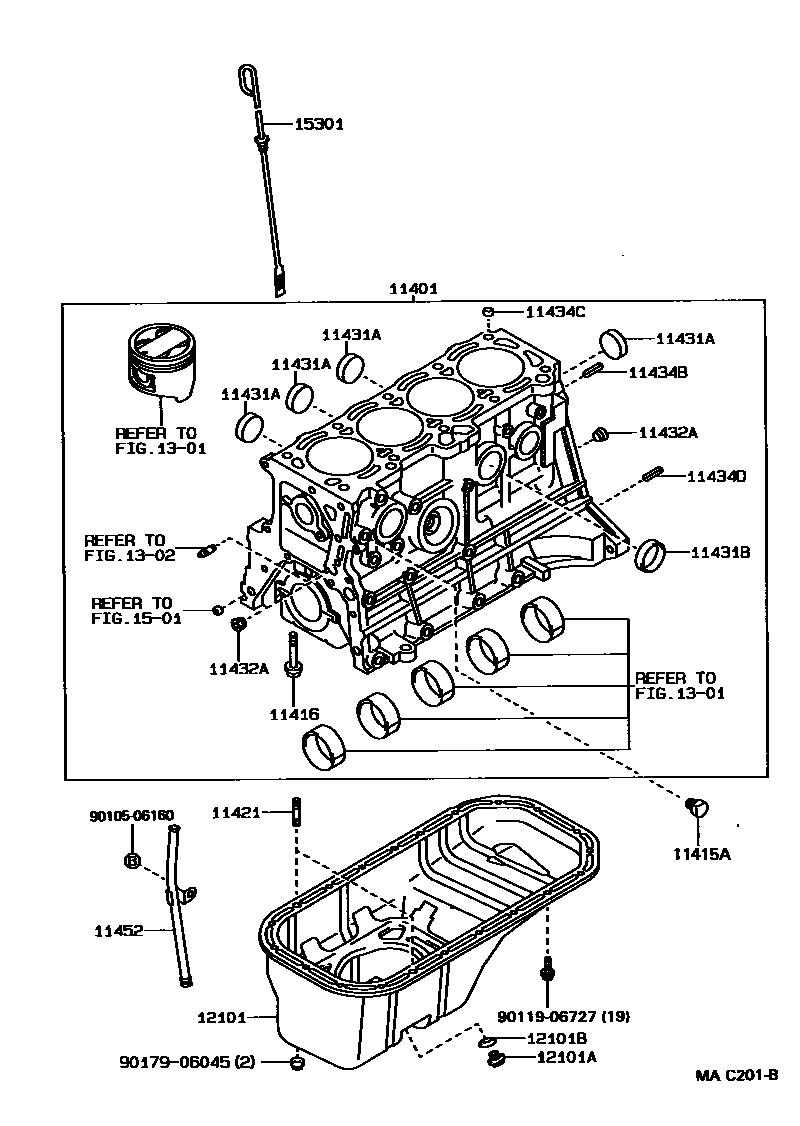

CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19505i4AFE..AT180198910-199101

sub11401-19506

main11401-19506i4AFE..AT180199101-199311

main11401-79455i3SGTE..ST185198910-199108

main11401-79456i3SGTE..ST185199108-199308

sub11401-79695

main11401-79495i3SGE..ST182198910-199009

sub11401-79496

main11401-79496i3SGE..ST182199009-199107

sub11401-79497

sub16268-88364

sub16281-88360

sub90406-14003

sub90467-20011

main11401-79497i3SGE..ST182199107-199311

main11401-79695i3SGTE..ST185199308-199311

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i3SGTE..ST185198910-199311

main90345-52003i4AFE..AT180199005-199311

main90345-52013i4AFE..AT180198910-199005

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007i4AFE..AT180198910-199311

main90105-10028i3SG#..ST18#198910-199311

11421BOLT, STUD(FOR OIL PAN)

main90116-06014i3SG#..ST18#198910-198911

main90116-06022i4AFE..AT180198910-199311

main90116-06119i3SG#..ST18#198911-199311

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500i3SG#..ST18#198910-199311

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000i3SG#..ST18#198910-199311

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53008i4AFE..AT180198910-199311

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i4AFE..AT180198910-199311

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-13017i4AFE..AT180198910-199311

L=12,OD=13

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i4AFE..AT180198910-199311

L=14,OD=6

main90250-06015i3SG#..ST18#198910-199311

L=11,OD=6

11452GUIDE, OIL LEVEL GAGE

main11452-15020i4AFE..AT180198910-199311

main11452-88361i3SGE..ST182198910-199311

main11452-88381i3SGTE..ST185198910-199311

12101PAN SUB-ASSY, OIL

main12101-16060i4AFE..AT180198910-199311

main12101-74070i3SGE..ST182198910-199311

main12101-74080i3SGTE..ST185198910-199311

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3SG#..ST18#198910-199005

main90341-12026i4AFE..AT180198910-199311

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12019i4AFE..AT180198910-199005

sub90430-12028

main90430-12027i4AFE..AT180199004-199311

sub90430-12031

1301

1302

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-15041i4AFE..AT180198910-199311

main15301-88363i3SGE..ST182198910-199311

main15301-88381i3SGTE..ST185198910-199311

9010506160

main90105-06160

9011906727

main90119-06727

9017906045

main90179-06045

21 parts on this diagram · 3 diagrams in section
