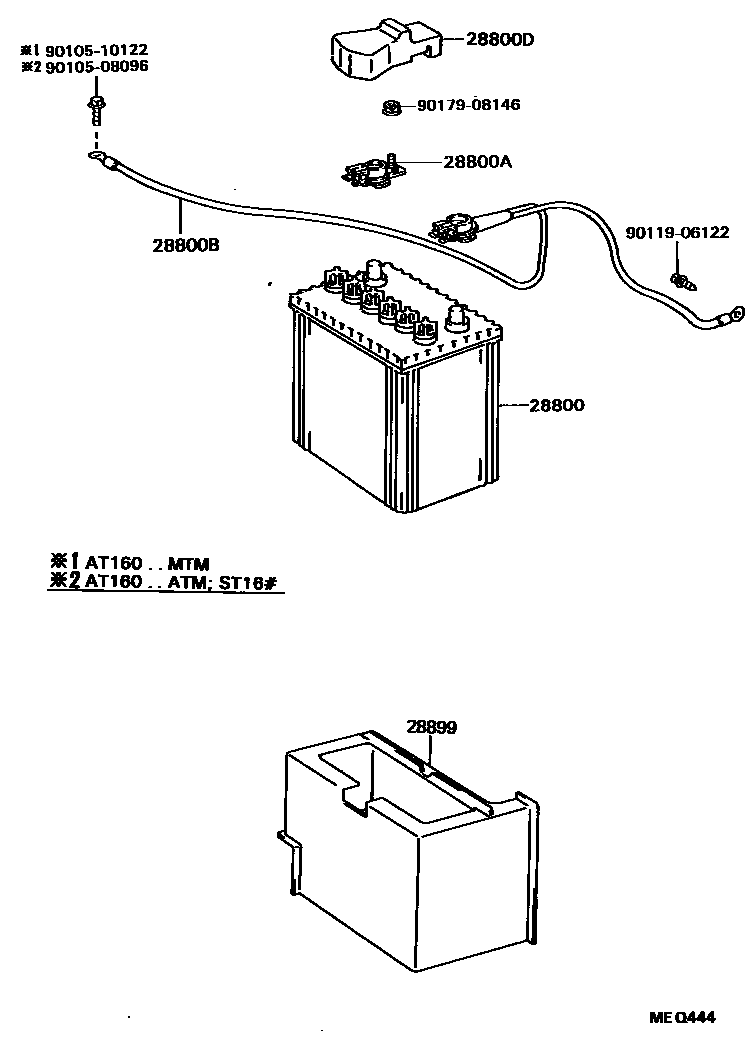

BATTERY & BATTERY CABLE

28800BATTERY

main28800-15050i3SGTE..ST165;3SGEL,3SGELC..ST162..CVT; 4AG#,4AL,3SGEL,3SGELC..AT160,ST162..CP,LB198708-198908

55D23L,GS

main28800-15060i3SGTE..ST165;3SGEL,3SGELC..ST162..CVT; 4AG#,4AL,3SGEL,3SGELC..AT160,ST162..CP,LB198708-198908

55D23L,YUASA

main28800-15070i3SGTE..ST165;3SGEL,3SGELC..ST162..CVT; 4AG#,4AL,3SGEL,3SGELC..AT160,ST162..CP,LB198708-198908

55D23L,KOBE

main28800-15080i3SGTE..ST165;3SGEL,3SGELC..ST162..CVT; 4AG#,4AL,3SGEL,3SGELC..AT160,ST162..CP,LB198708-198908

55D23L,PANASONIC

main28800-15090i3SGTE..ST165;3SGEL,3SGELC..ST162..CVT; 4AG#,4AL,3SGEL,3SGELC..AT160,ST162..CP,LB198708-198908

55D23L,FB(FURUKAWA)

main28800-31020i4AG#,4AL,3SGEL,3SGELC..AT160,ST162..CP,LB198708-198908

32C24L,KOBE

main28800-31031i4AG#,4AL,3SGEL,3SGELC..AT160,ST162..CP,LB198708-198908

32C24L,GS

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i4AG#,4AL,3SG#..AT160,ST162198708-198710

28800BCABLE, BATTERY TO GROUND

main82123-20090i4AG#,4AL,3SG#..AT160,ST16#198708-198805

main82123-20091i4AG#,4AL,3SG#..AT160,ST16#198805-198908

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12190i4AG#,4AL,3SGEL,3SGELC..AT160,ST162198708-198908

28899INSULATOR, BATTERY

main28899-74020i3SGTE..ST165198710-198908

9010508096

main90105-08096

9010510122

main90105-10122

9011906122

main90119-06122

9017908146

main90179-08146

9 parts on this diagram · 1 diagram in section
