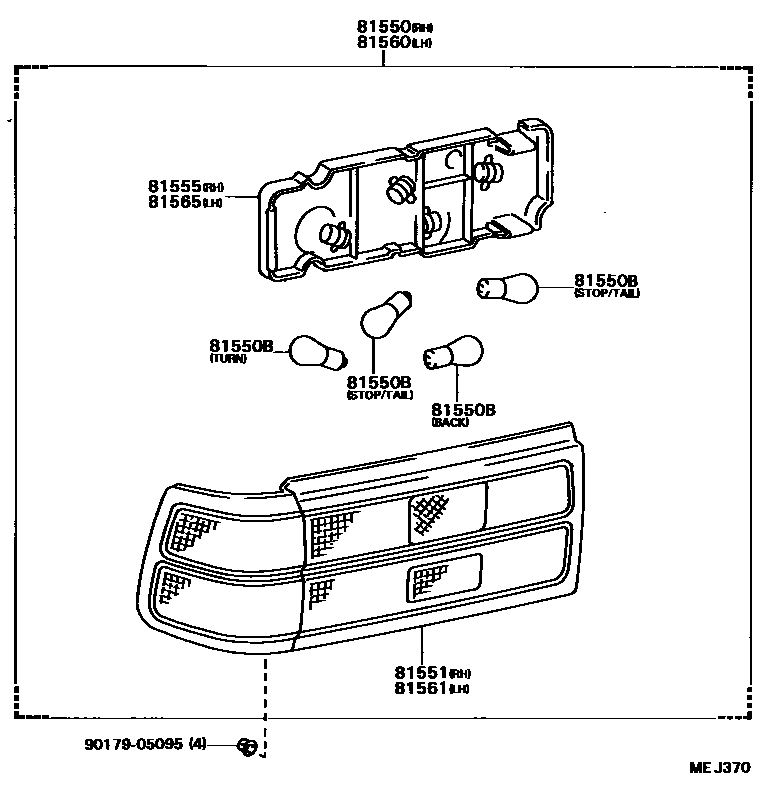

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-20671iST16#..LB..RHD198708-198908

main81550-20691iST162..(CP,CVT)..RHD198708-198908

main81550-20781iAT160,ST16#..LB..LHD198708-198908

main81550-20791iAT160,ST162..(CP,CVT)..LHD198708-198908

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×5iST16#..LB..RHD; ST162..CP,CVT;ST162..LB..LHD;AT160,ST165..LHD198708-198908

12V 21W,TURN OR BACK; 12V 21W,TURN OR BACK OR FOG

main99132-21210×2iAT160,ST16#198708-198908

12V 21/5W,STOP/TAIL

81551LENS, REAR COMBINATION LAMP, RH

main81551-20671iST16#..LB..RHD198708-198908

main81551-20691iST162..(CP,CVT)..RHD198708-198908

main81551-20781iAT160,ST16#..LB..LHD198708-198908

main81551-20791iAT160,ST162..(CP,CVT)..LHD198708-198908

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-20670iST16#..LB..RHD198708-198908

main81555-20690iST162..(CP,CVT)..RHD198708-198908

main81555-20780iAT160,ST16#..LB..LHD198708-198908

main81555-20790iAT160,ST162..(CP,CVT)..LHD198708-198908

81560LAMP ASSY, REAR COMBINATION, LH

main81560-20611iAT160,ST16#..LB..LHD198708-198908

main81560-20631iAT160,ST162..(CP,CVT)..LHD198708-198908

main81560-20721iST16#..LB..RHD198708-198908

main81560-20731iST162..(CP,CVT)..RHD198708-198908

81561LENS, REAR COMBINATION LAMP, LH

main81561-20611iAT160,ST16#..LB..LHD198708-198908

main81561-20631iAT160,ST162..(CP,CVT)..LHD198708-198908

main81561-20721iST16#..LB..RHD198708-198908

main81561-20731iST162..(CP,CVT)..RHD198708-198908

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-20610iAT160,ST16#..LB..LHD198708-198908

main81565-20630iAT160,ST162..(CP,CVT)..LHD198708-198908

main81565-20720iST16#..LB..RHD198708-198908

main81565-20730iST162..(CP,CVT)..RHD198708-198908

9017905095

main90179-05095

8 parts on this diagram · 2 diagrams in section
