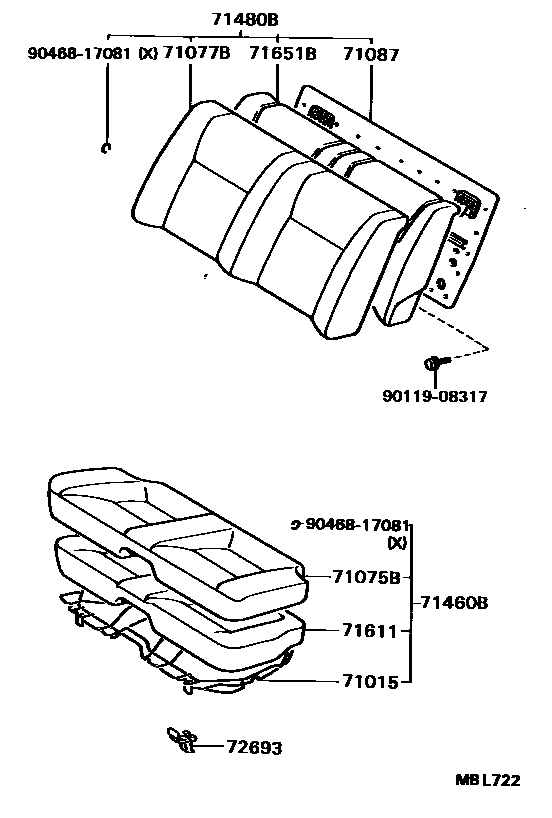

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-20190iAT160,ST162198708-198908

main71015-20280iST165198710-198908

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-20491-04iAT160..TWC; ST162..CP,LB198708-198908

DEEP BLUE,TRIM8#; W(SPORTS SEAT),DEEP BLUE,TRIM8#

main71065-20491-05iST162..CP,LB198908-198908

DARK BEIGE,TRIM4#

main71065-20491-13iAT160..TWC; ST162198708-198908

GRAY,TRIM2#; W(SPORTS SEAT),GRAY,TRIM2#

main71065-20541-01iAT160..CBR198708-198908

BLACK,TRIM2#

main71065-20541-04iAT160..CBR198708-198908

DEEP BLUE,TRIM8#

main71065-20541-05iAT160..CBR198708-198908

DARK BEIGE,TRIM4#

main71065-20551iAT160..TWC198810-198908

main71065-20551-04iAT160..TWC198708-198908

DEEP BLUE,TRIM8#

main71065-20551-05iAT160..TWC198708-198908

DARK BEIGE,TRIM4#

main71065-20551-13iAT160..TWC198708-198908

GRAY,TRIM2#

main71065-20620-04iAT160,ST162..(CP,LB)..LHD..TWC198708-198908

W(SPORTS SEAT & SEAT HEATER),DEEP BLUE,TRIM8#

main71065-20620-05iAT160,ST162..(CP,LB)..LHD..TWC198908-198908

W(SPORTS SEAT & SEAT HEATER),DARK BEIGE,TRIM4#

main71065-20620-13iAT160,ST162..(CP,LB)..LHD..TWC198908-198908

W(SPORTS SEAT & SEAT HEATER),GRAY,TRIM2#

main71075-2B130-03iST165..LHD198710-198908

W(SEAT HEATER),GRAY,TRIM2#

main71075-2B130-04iST165..LHD198710-198908

W(SEAT HEATER),DEEP BLUE,TRIM8#

main71075-2B130-05iST165..LHD198710-198908

W(SEAT HEATER),DARK BEIGE,TRIM4#

main71075-2B280-03iST165198710-198908

GRAY,TRIM2#

main71075-2B280-04iST165198710-198908

DEEP BLUE,TRIM8#

main71075-2B280-05iST165198710-198908

DARK BEIGE,TRIM4#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-2B721-01iAT160..CP..CBR198708-198908

BLACK,TRIM2#

main71077-2B721-04iAT160..CP..CBR198708-198908

DEEP BLUE,TRIM8#

main71077-2B721-05iAT160..CP..CBR198708-198908

DARK BEIGE,TRIM4#

71087BOARD SUB-ASSY, REAR SEATBACK

main71087-20010iAT160..CP..CBR198708-198908

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71560-20381-01iAT160..CBR198708-198908

BLACK,TRIM2#

main71560-20381-04iAT160..CBR198708-198908

DEEP BLUE,TRIM8#

main71560-20381-05iAT160..CBR198708-198908

DARK BEIGE,TRIM4#

main71560-20471-04iAT160..TWC198708-198908

DEEP BLUE,TRIM8#

main71560-20471-05iAT160..TWC198708-198908

DARK BEIGE,TRIM4#

main71560-20471-13iAT160..TWC198708-198908

GRAY,TRIM2#

main71560-20481-04iAT160..TWC; ST162..CP,LB198708-198908

DEEP BLUE,TRIM8#; W(SPORTS SEAT),DEEP BLUE,TRIM8#

main71560-20481-05iAT160..TWC; ST162..CP,LB198708-198908

DARK BEIGE,TRIM4#; W(SPORTS SEAT),DARK BEIGE,TRIM4#

main71560-20481-13iAT160..TWC; ST162198708-198908

GRAY,TRIM2#; W(SPORTS SEAT),GRAY,TRIM2#

main71560-20580-04iAT160,ST162..(CP,LB)..LHD..TWC198708-198908

W(SPORTS SEAT & SEAT HEATER),DEEP BLUE,TRIM8#

main71560-20580-05iAT160,ST162..(CP,LB)..LHD..TWC198708-198908

W(SPORTS SEAT & SEAT HEATER),DARK BEIGE,TRIM4#

main71560-20580-13iAT160,ST162..(CP,LB)..LHD..TWC198708-198908

W(SPORTS SEAT & SEAT HEATER),GRAY,TRIM2#

main71560-20720-03iST165198710-198908

GRAY,TRIM2#

main71560-20720-04iST165198710-198908

DEEP BLUE,TRIM8#

main71560-20720-05iST165198710-198908

DARK BEIGE,TRIM4#

main71560-20760-03iST165..LHD198710-198908

W(SEAT HEATER),GRAY,TRIM2#

main71560-20760-04iST165..LHD198710-198908

W(SEAT HEATER),DEEP BLUE,TRIM8#

main71560-20760-05iST165..LHD198710-198908

W(SEAT HEATER),DARK BEIGE,TRIM4#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-2B611-01iAT160..CP..CBR198708-198908

BLACK,TRIM2#

main71480-2B611-04iAT160..CP..CBR198708-198908

DEEP BLUE,TRIM8#

main71480-2B611-05iAT160..CP..CBR198708-198908

DARK BEIGE,TRIM4#

main71480-2D280-03iST165..RHD198710-198908

GRAY,TRIM4#

main71480-2D280-04iST165..RHD198710-198908

DEEP BLUE,TRIM8#

main71480-2D280-05iST165..RHD198710-198908

DARK BEIGE,TRIM4#

71611PAD, REAR SEAT CUSHION

main71611-20340iAT160,ST162198708-198908

main71611-20381iST165198710-198908

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-20370iAT160..CP..CBR198708-198908

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20010×2iAT160,ST16#198708-198908

9011908317

main90119-08317

9046817081

main90468-17081

11 parts on this diagram · 3 diagrams in section
