EPC Data

FRONT SEAT & SEAT TRACK

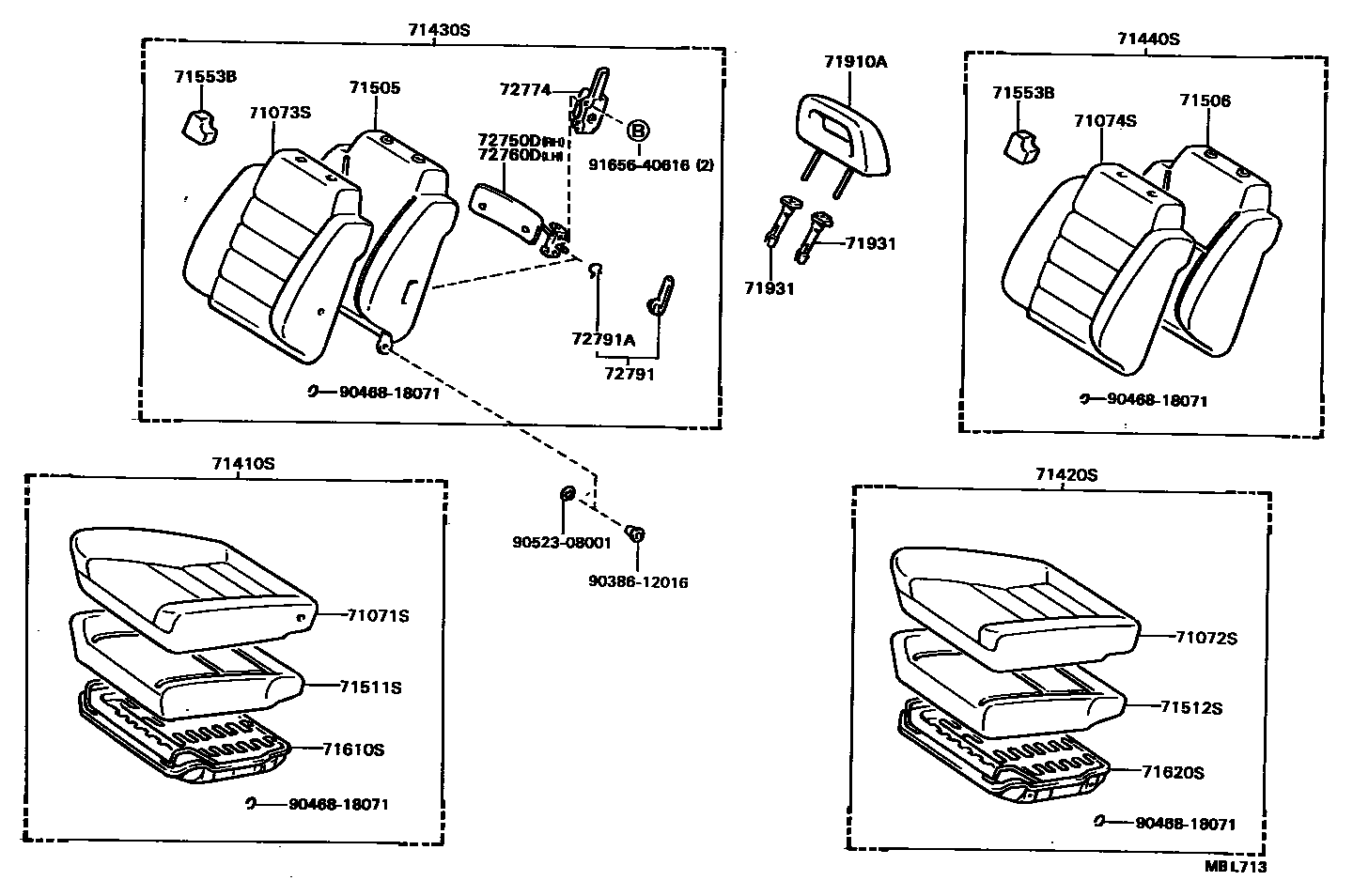

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-2B711-01i198708-198908
BLACK,TRIM2#
main71071-2B711-04i198708-198908
DEEP BLUE,TRIM8#
main71071-2B711-05i198708-198908
DARK BEIGE,TRIM4#
main71071-2B721i198810-198908
main71071-2B721-04i198708-198908
DEEP BLUE,TRIM8#
main71071-2B721-05i198708-198908
DARK BEIGE,TRIM4#
main71071-2B721-13i198708-198908
GRAY,TRIM2#
main71071-2B751-04i198708-198908
DEEP BLUE,TRIM8#; W(SPORTS SEAT),DEEP BLUE,TRIM8#
main71071-2B751-05i198708-198908
DARK BEIGE,TRIM4#; W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71071-2B751-13i198708-198908
GRAY,TRIM2#; W(SPORTS SEAT),GRAY,TRIM2#
main71071-2B860-04i198710-198908
DEEP BLUE,TRIM8#
main71071-2B860-05i198710-198908
DARK BEIGE,TRIM4#
main71071-2B860-13i198710-198908
GRAY,TRIM2#
main71071-2B870-04i198708-198908
W(SPORTS SEAT & SEAT HEATER),DEEP BLUE,TRIM8#
main71071-2B870-05i198708-198908
W(SPORTS SEAT & SEAT HEATER),DARK BEIGE,TRIM4#
main71071-2B870-13i198908-198908
W(SPORTS SEAT & SEAT HEATER),GRAY,TRIM2#
main71071-2D260-03i198710-198908
W(SEAT HEATER),GRAY,TRIM2#
main71071-2D260-04i198710-198908
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71071-2D260-05i198710-198908
W(SEAT HEATER),DARK BEIGE,TRIM4#
main71071-2D280-03i198710-198908
W(8-WAY SPORTS SEAT),GRAY,TRIM2#
main71071-2D280-04i198710-198908
W(8-WAY SPORTS SEAT),DEEP BLUE,TRIM8#
main71071-2D280-05i198710-198908
W(8-WAY SPORTS SEAT),DARK BEIGE,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-2B121-01i198708-198908
BLACK,TRIM2#
main71072-2B121-04i198708-198908
DEEP BLUE,TRIM8#
main71072-2B121-05i198708-198908
DARK BEIGE,TRIM4#
main71072-2B141i198810-198908
main71072-2B141-04i198708-198908
DEEP BLUE,TRIM8#
main71072-2B141-05i198708-198908
DARK BEIGE,TRIM4#
main71072-2B141-13i198708-198908
GRAY,TRIM2#
main71072-2B211-04i198708-198908
DEEP BLUE,TRIM8#; W(SPORTS SEAT),DEEP BLUE,TRIM8#
main71072-2B211-05i198708-198808
W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71072-2B211-13i198708-198908
GRAY,TRIM2#; W(SPORTS SEAT),GRAY,TRIM2#
main71072-2B290-04i198908-198908
W(SPORTS SEAT & SEAT HEATER),DEEP BLUE,TRIM8#
main71072-2B290-05i198708-198908
W(SPORTS SEAT & SEAT HEATER),DARK BEIGE,TRIM4#
main71072-2B290-13i198708-198908
W(SPORTS SEAT & SEAT HEATER),GRAY,TRIM2#
main71072-2B560-03i198710-198908
GRAY,TRIM2#
main71072-2B560-04i198710-198908
DEEP BLUE,TRIM8#
main71072-2B560-05i198710-198908
DARK BEIGE,TRIM4#
main71072-2B570-03i198710-198908
W(SEAT HEATER),GRAY,TRIM2#
main71072-2B570-04i198710-198908
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71072-2B570-05i198710-198908
W(SEAT HEATER),DARK BEIGE,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-2B652-03i198708-198908
GRAY,TRIM2#; W(SPORTS SEAT),GRAY,TRIM2#
main71073-2B652-04i198708-198908
DEEP BLUE,TRIM8#; W(SPORTS SEAT),DEEP BLUE,TRIM8#
main71073-2B652-05i198708-198908
DARK BEIGE,TRIM4#; W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71073-2B701-01i198708-198908
BLACK,TRIM2#
main71073-2B701-04i198708-198908
DEEP BLUE,TRIM8#
main71073-2B701-05i198708-198908
DARK BEIGE,TRIM4#
main71073-2B721i198810-198908
main71073-2B721-04i198708-198908
DEEP BLUE,TRIM8#
main71073-2B721-05i198708-198908
DARK BEIGE,TRIM4#
main71073-2B721-13i198708-198908
GRAY,TRIM2#
main71073-2B781-03i198710-198908
GRAY,TRIM2#
main71073-2B781-04i198710-198908
DEEP BLUE,TRIM8#
main71073-2B781-05i198710-198908
DARK BEIGE,TRIM4#
main71073-2B802-03i198908-198908
W(SPORTS SEAT & SEAT HEATER),GRAY,TRIM2#
main71073-2B802-04i198908-198908
W(SPORTS SEAT & SEAT HEATER),DEEP BLUE,TRIM8#
main71073-2B802-05i198908-198908
W(SPORTS SEAT & SEAT HEATER),DARK BEIGE,TRIM4#
main71073-2D180-03i198710-198908
W(SEAT HEATER),GRAY,TRIM2#
main71073-2D180-04i198710-198908
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71073-2D180-05i198710-198908
W(SEAT HEATER),DARK BEIGE,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-2B312-03i198708-198908
GRAY,TRIM2#; W(SPORTS SEAT),GRAY,TRIM2#
main71074-2B312-04i198708-198908
DEEP BLUE,TRIM8#; W(SPORTS SEAT),DEEP BLUE,TRIM8#
main71074-2B312-05i198708-198908
DARK BEIGE,TRIM4#; W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71074-2B371-01i198708-198908
BLACK,TRIM2#
main71074-2B371-04i198708-198908
DEEP BLUE,TRIM8#
main71074-2B371-05i198708-198908
DARK BEIGE,TRIM4#
main71074-2B391-04i198708-198908
DEEP BLUE,TRIM8#
main71074-2B391-05i198708-198908
DARK BEIGE,TRIM4#
main71074-2B391-13i198708-198908
GRAY,TRIM2#
main71074-2B451-03i198710-198908
GRAY,TRIM2#
main71074-2B451-04i198710-198908
DEEP BLUE,TRIM8#
main71074-2B451-05i198710-198908
DARK BEIGE,TRIM4#
main71074-2B472-03i198708-198908
W(SPORTS SEAT & SEAT HEATER),GRAY,TRIM2#
main71074-2B472-04i198708-198908
W(SPORTS SEAT & SEAT HEATER),DEEP BLUE,TRIM8#
main71074-2B472-05i198908-198908
W(SPORTS SEAT & SEAT HEATER),DARK BEIGE,TRIM4#
main71074-2B750-03i198710-198908
W(SEAT HEATER),GRAY,TRIM2#
main71074-2B750-04i198710-198908
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71074-2B750-05i198710-198908
W(SEAT HEATER),DARK BEIGE,TRIM4#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-2B691-04i198708-198908
DEEP BLUE,TRIM8#
main71410-2B691-05i198708-198908
DARK BEIGE,TRIM4#
main71410-2B691-13i198708-198908
GRAY,TRIM2#
main71410-2B701-04i198708-198908
DEEP BLUE,TRIM8#; W(SPORTS SEAT),DEEP BLUE,TRIM8#
main71410-2B701-05i198708-198908
DARK BEIGE,TRIM4#; W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71410-2B701-13i198708-198908
GRAY,TRIM2#; W(SPORTS SEAT),GRAY,TRIM2#
main71410-2B791-04i198708-198908
DEEP BLUE,TRIM8#
main71410-2B791-05i198708-198908
DARK BEIGE,TRIM4#
main71410-2B791-13i198708-198908
GRAY,TRIM2#
main71410-2B841-01i198708-198908
BLACK,TRIM2#
main71410-2B841-04i198708-198908
DEEP BLUE,TRIM8#
main71410-2B841-05i198708-198908
DARK BEIGE,TRIM4#
main71410-2B851-04i198708-198908
W(8-WAY SPORTS SEAT),DEEP BLUE,TRIM8#
main71410-2B851-05i198708-198908
W(8-WAY SPORTS SEAT),DARK BEIGE,TRIM4#
main71410-2B851-13i198708-198908
W(8-WAY SPORTS SEAT),GRAY,TRIM2#
main71410-2B871-04i198708-198908
W(8-WAY SPORTS SEAT),DEEP BLUE,TRIM8#
main71410-2B871-05i198708-198908
W(8-WAY SPORTS SEAT),DARK BEIGE,TRIM4#
main71410-2B871-13i198708-198908
GRAY,TRIM2#; W(8-WAY SPORTS SEAT),GRAY,TRIM2#
main71410-2D050-04i198708-198908
W(SPORTS SEAT & SEAT HEATER),DEEP BLUE,TRIM8#
main71410-2D050-05i198708-198908
W(SPORTS SEAT & SEAT HEATER),DARK BEIGE,TRIM4#
main71410-2D050-13i198708-198908
W(SPORTS SEAT & SEAT HEATER),GRAY,TRIM2#
main71410-2D380-03i198710-198908
GRAY,TRIM2#
main71410-2D380-04i198710-198908
DEEP BLUE,TRIM8#
main71410-2D380-05i198710-198908
DARK BEIGE,TRIM4#
main71410-2D390-03i198710-198908
W(SEAT HEATER),GRAY,TRIM2#
main71410-2D390-04i198710-198908
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71410-2D390-05i198710-198908
W(SEAT HEATER),DARK BEIGE,TRIM4#
main71410-2D410-03i198710-198908
GRAY,TRIM2#
main71410-2D410-04i198710-198908
DEEP BLUE,TRIM8#
main71410-2D410-05i198710-198908
DARK BEIGE,TRIM4#
main71410-2D420-03i198710-198908
W(8-WAY SPORTS SEAT),GRAY,TRIM2#
main71410-2D420-04i198710-198908
W(8-WAY SPORTS SEAT),DEEP BLUE,TRIM8#
main71410-2D420-05i198710-198908
W(8-WAY SPORTS SEAT),DARK BEIGE,TRIM4#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-2B161-04i198708-198908
DEEP BLUE,TRIM8#
main71420-2B161-05i198708-198908
DARK BEIGE,TRIM4#
main71420-2B161-13i198708-198908
GRAY,TRIM2#
main71420-2B171-04i198708-198908
DEEP BLUE,TRIM8#; W(SPORTS SEAT),DEEP BLUE,TRIM8#
main71420-2B171-05i198708-198908
DARK BEIGE,TRIM4#; W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71420-2B171-13i198708-198908
GRAY,TRIM2#; W(SPORTS SEAT),GRAY,TRIM2#
main71420-2B211-01i198708-198908
BLACK,TRIM2#
main71420-2B211-04i198708-198908
DEEP BLUE,TRIM8#
main71420-2B211-05i198708-198908
DARK BEIGE,TRIM4#
main71420-2B281-04i198708-198908
DEEP BLUE,TRIM8#
main71420-2B281-05i198708-198908
DARK BEIGE,TRIM4#
main71420-2B281-13i198708-198908
GRAY,TRIM2#
main71420-2B301-04i198708-198908
W(8-WAY SPORTS SEAT),DEEP BLUE,TRIM8#
main71420-2B301-05i198708-198908
W(8-WAY SPORTS SEAT),DARK BEIGE,TRIM4#
main71420-2B301-13i198708-198908
GRAY,TRIM2#; W(8-WAY SPORTS SEAT),GRAY,TRIM2#
main71420-2B390-04i198708-198908
W(SPORTS SEAT & SEAT HEATER),DEEP BLUE,TRIM8#
main71420-2B390-05i198708-198908
W(SPORTS SEAT & SEAT HEATER),DARK BEIGE,TRIM4#
main71420-2B390-13i198708-198908
W(SPORTS SEAT & SEAT HEATER),GRAY,TRIM2#
main71420-2B690-03i198710-198908
BLACK,TRIM2#
main71420-2B690-04i198710-198908
DEEP BLUE,TRIM8#
main71420-2B690-05i198710-198908
DARK BEIGE,TRIM4#
main71420-2B700-03i198710-198908
W(8-WAY SPORTS SEAT),GRAY,TRIM2#
main71420-2B700-04i198710-198908
W(8-WAY SPORTS SEAT),DEEP BLUE,TRIM8#
main71420-2B700-05i198710-198908
W(8-WAY SPORTS SEAT),DARK BEIGE,TRIM4#
main71420-2B710-03i198710-198908
W(SEAT HEATER),GRAY,TRIM2#
main71420-2B710-04i198710-198908
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71420-2B710-05i198710-198908
W(SEAT HEATER),DARK BEIGE,TRIM4#
main71420-2B740-03i198710-198908
GRAY,TRIM2#
main71420-2B740-04i198710-198908
DEEP BLUE,TRIM8#
main71420-2B740-05i198710-198908
DARK BEIGE,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-2B631-01i198708-198908
BLACK,TRIM2#
main71430-2B631-04i198708-198908
DEEP BLUE,TRIM8#
main71430-2B631-05i198708-198908
DARK BEIGE,TRIM4#
main71430-2B691-04i198708-198908
DEEP BLUE,TRIM8#
main71430-2B691-05i198708-198908
DARK BEIGE,TRIM4#
main71430-2B691-13i198708-198908
GRAY,TRIM2#
main71430-2B802-03i198708-198908
GRAY,TRIM2#; W(SPORTS SEAT),GRAY,TRIM2#
main71430-2B802-04i198708-198908
DEEP BLUE,TRIM8#; W(SPORTS SEAT),DEEP BLUE,TRIM8#
main71430-2B802-05i198708-198908
DARK BEIGE,TRIM4#; W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71430-2B812-03i198708-198908
W(8-WAY SPORTS SEAT),GRAY,TRIM2#
main71430-2B812-04i198708-198908
W(8-WAY SPORTS SEAT),DEEP BLUE,TRIM8#
main71430-2B812-05i198708-198908
W(8-WAY SPORTS SEAT),DARK BEIGE,TRIM4#
main71430-2D032-03i198708-198908
W(SPORTS SEAT & SEAT HEATER),GRAY,TRIM2#
main71430-2D032-04i198708-198908
W(SPORTS SEAT & SEAT HEATER),DEEP BLUE,TRIM8#
main71430-2D032-05i198708-198908
W(SPORTS SEAT & SEAT HEATER),DARK BEIGE,TRIM4#
main71430-2D360-03i198710-198908
GRAY,TRIM2#
main71430-2D360-04i198710-198908
DEEP BLUE,TRIM8#
main71430-2D360-05i198710-198908
DARK BEIGE,TRIM4#
main71430-2D370-03i198710-198908
W(SEAT HEATER),GRAY,TRIM2#
main71430-2D370-04i198710-198908
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71430-2D370-05i198710-198908
W(SEAT HEATER),DARK BEIGE,TRIM4#
main71430-2D390-03i198710-198908
W(8-WAY SPORTS SEAT),GRAY,TRIM2#
main71430-2D390-04i198710-198908
W(8-WAY SPORTS SEAT),DEEP BLUE,TRIM8#
main71430-2D390-05i198710-198908
W(8-WAY SPORTS SEAT),DARK BEIGE,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-2B381-01i198708-198908
BLACK,TRIM2#
main71440-2B381-04i198708-198908
DEEP BLUE,TRIM8#
main71440-2B381-05i198708-198908
DARK BEIGE,TRIM4#
main71440-2B431-04i198708-198908
DEEP BLUE,TRIM8#
main71440-2B431-05i198708-198908
DARK BEIGE,TRIM4#
main71440-2B431-13i198708-198908
GRAY,TRIM2#
main71440-2B512-03i198708-198908
GRAY,TRIM2#; W(8-WAY SPORTS SEAT),GRAY,TRIM2#
main71440-2B512-04i198708-198908
W(8-WAY SPORTS SEAT),DEEP BLUE,TRIM8#
main71440-2B512-05i198708-198908
W(8-WAY SPORTS SEAT),DARK BEIGE,TRIM4#
main71440-2B552-03i198708-198908
GRAY,TRIM2#; W(SPORTS SEAT),GRAY,TRIM2#
main71440-2B552-04i198708-198908
DEEP BLUE,TRIM8#; W(SPORTS SEAT),DEEP BLUE,TRIM8#
main71440-2B552-05i198708-198908
DARK BEIGE,TRIM4#; W(SPORTS SEAT),DARK BEIGE,TRIM4#
main71440-2B672-03i198708-198908
W(SPORTS SEAT & SEAT HEATER),GRAY,TRIM2#
main71440-2B672-04i198708-198908
W(SPORTS SEAT & SEAT HEATER),DEEP BLUE,TRIM8#
main71440-2B672-05i198708-198908
W(SPORTS SEAT & SEAT HEATER),DARK BEIGE,TRIM4#
main71440-2D110-03i198710-198908
GRAY,TRIM2#
main71440-2D110-04i198710-198908
DEEP BLUE,TRIM8#
main71440-2D110-05i198710-198908
DARK BEIGE,TRIM4#
main71440-2D120-03i198710-198908
W(8-WAY SPORTS SEAT),GRAY,TRIM2#
main71440-2D120-04i198710-198908
W(8-WAY SPORTS SEAT),DEEP BLUE,TRIM8#
main71440-2D120-05i198710-198908
W(8-WAY SPORTS SEAT),DARK BEIGE,TRIM4#
main71440-2D130-03i198710-198908
W(SEAT HEATER),GRAY,TRIM2#
main71440-2D130-04i198710-198908
W(SEAT HEATER),DEEP BLUE,TRIM8#
main71440-2D130-05i198710-198908
W(SEAT HEATER),DARK BEIGE,TRIM4#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-20050i198708-198908
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71505-20050i198708-198908
main71506-20030i198708-198908
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-20400i198708-198908
main71511-20410i198708-198908
W(SPORTS SEAT) OR W(SPORTS SEAT & SEAT HEATER)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-20400i198708-198908
main71511-20410i198708-198908
W(SPORTS SEAT) OR W(SPORTS SEAT & SEAT HEATER)
71553BPAD, FRONT SEATBACK, B
main71553-20130i198708-198908
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-20270i198708-198908
main71610-20300i198708-198908
W(SPORTS SEAT)
main71610-20350i198708-198908
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-20270i198708-198908
main71610-20300i198708-198908
main71620-20170i198708-198908
main71620-20180i198708-198908
W(SPORTS SEAT)
71910AHEADREST ASSY, FRONT SEAT
main71910-20560-01×2i198708-198908
BLACK,TRIM2#
main71910-20560-04×2i198708-198908
DEEP BLUE,TRIM8#
main71910-20560-05×2i198708-198908
DARK BEIGE,TRIM4#
main71910-20580-01×2i198710-198908
BLACK,TRIM2#
main71910-20580-04×2i198710-198908
DEEP BLUE,TRIM8#
main71910-20580-05×2i198710-198908
DARK BEIGE,TRIM4#
main71910-20720-01×2i198708-198908
BLACK,TRIM2#; W(SPORTS SEAT),BLACK,TRIM2#
main71910-20720-04×2i198708-198908
DEEP BLUE,TRIM8#; W(SPORTS SEAT),DEEP BLUE,TRIM8#
main71910-20720-05×2i198708-198908
BEIGE,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-10060-01×2i198708-198908
W(LOCK),BLACK,TRIM2#
main71930-10060-16×2i198708-198908
W(LOCK),BROWN,TRIM4#
main71930-10060-44×2i198708-198901
W(LOCK),DEEP BLUE,TRIM8#
main71930-14080-01×2i198708-198908
W(LOCK),BLACK,TRIM2#; W(LOCK),W(SPORTS SEAT) OR W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2#
main71930-14080-06×2i198708-198908
W(LOCK),SABLE,TRIM4#; W(LOCK),W(SPORTS SEAT) OR W(SPORTS SEAT & SEAT HEATER),SABLE,TRIM4#
main71930-14080-14×2i198708-198908
W(LOCK),DEEP BLUE,TRIM8#; W(LOCK),W(SPORTS SEAT) OR W(SPORTS SEAT & SEAT HEATER),DEEP BLUE,TRIM8#
main71931-10010-01×2i198708-198908
W/O(LOCK),BLACK,TRIM2#
main71931-10010-16×2i198708-198908
W/O(LOCK),SABLE,TRIM4#
main71931-10010-44×2i198708-198901
W/O(LOCK),DEEP BLUE,TRIM8#
main71931-14010-01×2i198708-198908
W/O(LOCK),BLACK,TRIM2#; W/O(LOCK),W(SPORTS SEAT) OR W(SPORTS SEAT & SEAT HEATER),BLACK,TRIM2#
main71931-14010-06×2i198708-198908
W/O(LOCK),SABLE,TRIM4#; W/O(LOCK),W(SPORTS SEAT) OR W(SPORTS SEAT & SEAT HEATER),SABLE,TRIM4#
main71931-14010-14×2i198708-198908
W/O(LOCK),DEEP BLUE,TRIM8#; W/O(LOCK),W(SPORTS SEAT) OR W(SPORTS SEAT & SEAT HEATER),DEEP BLUE,TRIM8#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-20070i198708-198908
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-20070i198708-198908
main72760-20030i198708-198908
72774PROTECTOR, LUMBAR SUPPORT SPRING
main72775-12010i198708-198908
72791LEVER, LUMBAR SUPPORT
main72791-20030-01i198708-198908
BLACK,TRIM2#
main72791-20030-04i198708-198908
DEEP BLUE,TRIM8#
main72791-20030-05i198708-198908
DARK BEIGE,TRIM4#
72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
main90520-01274i198708-198908
9038612016
main90386-12016
9046818071
main90468-18071
9052308001
main90523-08001
9165640616
main91656-40616

26 parts on this diagram · 3 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
