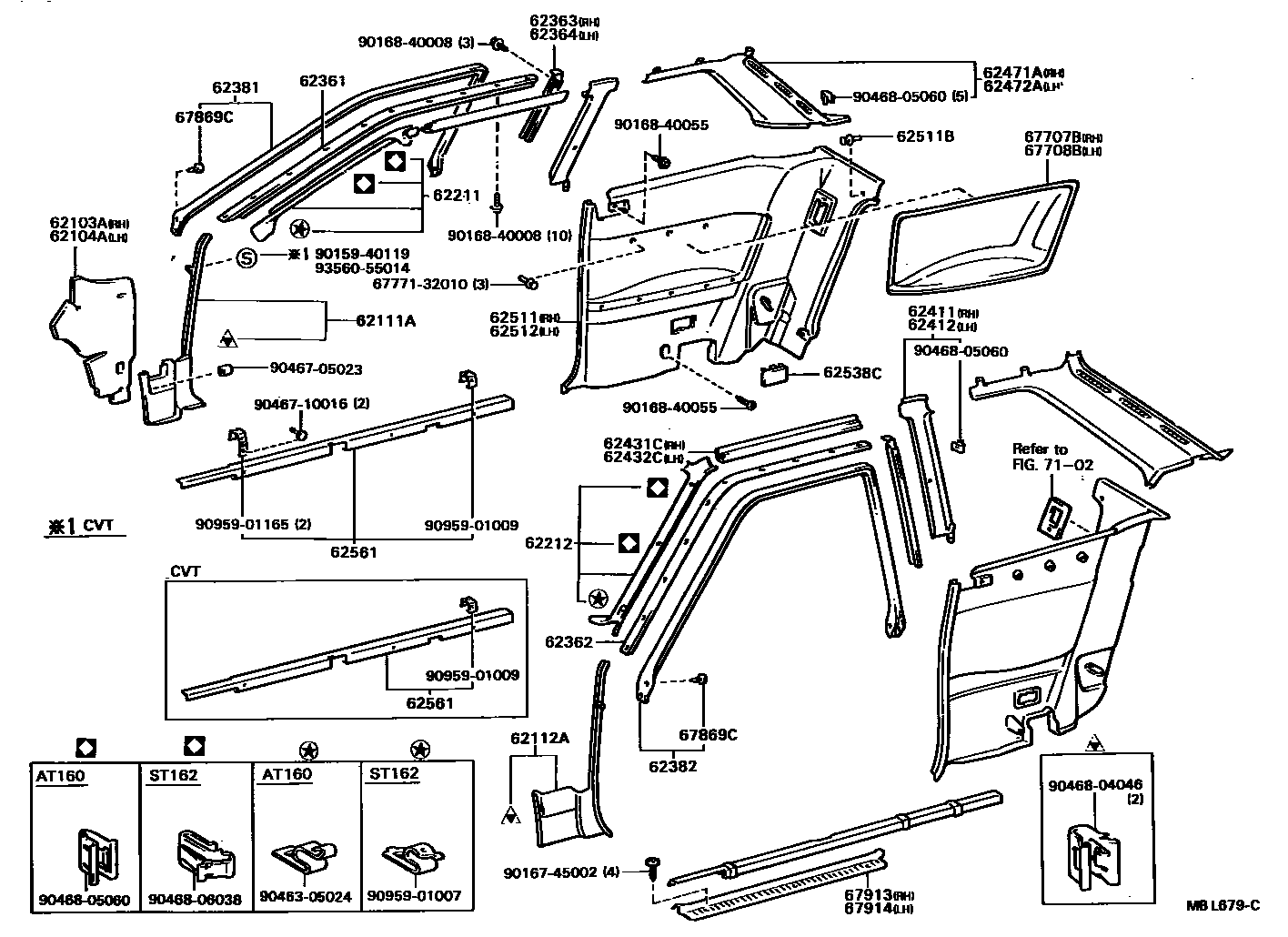

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-20080iST16#..RHD198708-198908

main62105-20090iAT160,ST16#..LHD198708-198908

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-20080iST16#..RHD198708-198908

main62106-20090iAT160,ST16#..LHD198708-198908

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-20150-01iST16#..RHD198708-198908

BLACK,TRIM2#

sub62101-20150

main62101-20150-04iST16#..(CP,LB)..RHD198708-198908

DEEP BLUE,TRIM8#

sub62101-20150

main62101-20150-05iST16#..(CP,LB)..RHD198708-198908

DARK BEIGE,TRIM4#

sub62101-20150

main62101-20160-01iAT160,ST16#..LHD198708-198908

BLACK,TRIM2#

sub62101-20160

main62101-20160-04iAT160,ST16#..(CP,LB)..LHD198708-198908

DEEP BLUE,TRIM8#

sub62101-20160

main62101-20160-05iAT160,ST16#..(CP,LB)..LHD198708-198908

DARK BEIGE,TRIM4#

sub62101-20160

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-20120-01iST16#..RHD198708-198908

BLACK,TRIM2#

sub62102-20120

main62102-20120-04iST16#..(CP,LB)..RHD198708-198908

DEEP BLUE,TRIM8#

sub62102-20120

main62102-20120-05iST16#..(CP,LB)..RHD198708-198908

DARK BEIGE,TRIM4#

sub62102-20120

main62102-20130-01iAT160,ST16#..LHD198708-198908

BLACK,TRIM2#

sub62102-20130

main62102-20130-04iAT160,ST16#..(CP,LB)..LHD198708-198908

DEEP BLUE,TRIM8#

sub62102-20130

main62102-20130-05iAT160,ST16#..(CP,LB)..LHD198708-198908

DARK BEIGE,TRIM4#

sub62102-20130

62211GARNISH, FRONT PILLAR, RH

main62210-20020-01iST16#198708-198908

BLACK,TRIM2#

main62210-20020-04iST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#

main62210-20020-05iST16#..CP,LB198708-198908

DARK BEIGE,TRIM4#

main62211-20140-01iAT160198708-198908

BLACK,TRIM2#

main62211-20140-04iAT160198708-198908

DEEP BLUE,TRIM8#

main62211-20140-05iAT160198708-198908

DARK BEIGE,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-20140-01iAT160198708-198908

BLACK,TRIM2#

main62212-20140-04iAT160198708-198908

DEEP BLUE,TRIM8#

main62212-20140-05iAT160198708-198908

DARK BEIGE,TRIM4#

main62220-20020-01iST16#198708-198908

BLACK,TRIM2#

main62220-20020-04iST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#

main62220-20020-05iST16#..CP,LB198708-198908

DARK BEIGE,TRIM4#

62361RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH

main62361-20030iAT160,ST16#198708-198908

62362RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH

main62362-20030iAT160,ST16#198708-198908

62363RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR RH

main62371-20040iAT160,ST16#198708-198908

62364RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR LH

main62372-20030iAT160,ST16#198708-198908

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-20040iAT160,ST16#198708-198908

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-20040iAT160,ST16#198708-198908

62411GARNISH, CENTER PILLAR, RH

main62411-20230-01iAT160,ST16#..CP,LB198708-198908

BLACK,TRIM2#

sub62411-20230

main62411-20230-04iAT160,ST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#

sub62411-20230

main62411-20230-05iAT160,ST16#..CP,LB198708-198908

DARK BEIGE,TRIM4#

sub62411-20230

62412GARNISH, CENTER PILLAR, LH

main62412-20230-01iAT160,ST16#..CP,LB198708-198908

BLACK,TRIM2#

sub62412-20230

main62412-20230-04iAT160,ST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#

sub62412-20230

main62412-20230-05iAT160,ST16#..CP,LB198708-198908

DARK BEIGE,TRIM4#

sub62412-20230

62431CGARNISH, ROOF SIDE RAIL, FRONT RH

main62431-20030-01iAT160,ST162..CP,LB198708-198908

BLACK,TRIM2#

sub62431-20030

main62431-20030-04iAT160,ST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#

sub62431-20030

main62431-20030-05iAT160,ST16#..CP,LB198708-198908

DARK BEIGE,TRIM4#

sub62431-20030

62432CGARNISH, ROOF SIDE RAIL, FRONT LH

main62431-20030-01iAT160,ST16#198708-198908

BLACK,TRIM2#

sub62431-20030

main62431-20030-04iAT160,ST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#

sub62431-20030

main62431-20030-05iAT160,ST16#..CP,LB198708-198908

DARK BEIGE,TRIM4#

sub62431-20030

62471AGARNISH, ROOF SIDE, INNER RH

main62471-20210-01iAT160,ST162..CP198708-198908

BLACK,TRIM2#

main62471-20210-04iAT160,ST162..CP198708-198908

DEEP BLUE,TRIM8#

main62471-20210-05iAT160,ST162..CP198708-198908

DARK BEIGE,TRIM4#

main62471-20230-01iAT160,ST16#..LB198708-198908

BLACK,TRIM2#

main62471-20230-04iAT160,ST16#..LB198708-198908

DEEP BLUE,TRIM8#

main62471-20230-05iAT160,ST16#..LB198708-198908

DARK BEIGE,TRIM4#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-20230-01iAT160,ST162..CP198708-198908

BLACK,TRIM2#

main62472-20230-04iAT160,ST162..CP198708-198908

DEEP BLUE,TRIM8#

main62472-20230-05iAT160,ST162..CP198708-198908

DARK BEIGE,TRIM4#

main62472-20250-01iAT160,ST16#..LB198708-198908

BLACK,TRIM2#

main62472-20250-04iAT160,ST16#..LB198708-198908

DEEP BLUE,TRIM8#

main62472-20250-05iAT160,ST16#..LB198708-198908

DARK BEIGE,TRIM4#

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-20090-01iAT160..CP..CBR198708-198908

BLACK,TRIM2#

main62511-20090-04iAT160..CP..CBR198708-198908

DEEP BLUE,TRIM8#

main62511-20090-05iAT160..CP..CBR198708-198908

DARK BEIGE,TRIM4#

main62511-20100-01iAT160,ST162..(CP,CVT)..TWC198708-198908

BLACK,TRIM2#

main62511-20100-04iAT160,ST162..CP..TWC198708-198908

DEEP BLUE,TRIM8#

main62511-20100-05iAT160,ST162..CP..TWC198708-198908

DARK BEIGE,TRIM4#

main62511-20110-01iAT160..CP..CBR198708-198908

W(REAR 3-POINT SEAT BELT),BLACK,TRIM2#

main62511-20110-04iAT160..CP..CBR198708-198908

W(REAR 3-POINT SEAT BELT),DEEP BLUE,TRIM8#

main62511-20110-05iAT160..CP..CBR198708-198908

W(REAR 3-POINT SEAT BELT),DARK BEIGE,TRIM4#

main62511-20120-01iAT160,ST162..CP..TWC198708-198908

W(REAR 3-POINT SEAT BELT),BLACK,TRIM2#

main62511-20120-04iAT160,ST162..CP..TWC198708-198908

W(REAR 3-POINT SEAT BELT),DEEP BLUE,TRIM8#

main62511-20120-05iAT160,ST162..CP..TWC198708-198908

W(REAR 3-POINT SEAT BELT),DARK BEIGE,TRIM4#

main62511-20130-01iAT160..LB..CBR198708-198908

BLACK,TRIM2#

main62511-20130-04iAT160..LB..CBR198708-198908

DEEP BLUE,TRIM8#

main62511-20130-05iAT160..LB..CBR198708-198908

DARK BEIGE,TRIM4#

main62511-20140-01iAT160,ST16#..LB..TWC198708-198908

BLACK,TRIM2#

main62511-20140-04iAT160,ST16#..LB..TWC198708-198908

DEEP BLUE,TRIM8#

main62511-20140-05iAT160,ST16#..LB..TWC198708-198908

DARK BEIGE,TRIM4#

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-06016-11iAT160,ST162..(CP,CVT)..TWC198708-198808

BLACK,TRIM2#

sub90467-06016

sub90467-07049

main90467-06016-30iAT160,ST162..CP..TWC198708-198808

BLUE,TRIM8#

sub90467-06016

sub90467-07049

main90467-06016-45iAT160,ST162..CP..TWC198708-198808

DARK BEIGE,TRIM4#

sub90467-06016

sub90467-07049

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-20090-01iAT160..CP..CBR198708-198908

BLACK,TRIM2#

main62512-20090-04iAT160..CP..CBR198708-198908

DEEP BLUE,TRIM8#

main62512-20090-05iAT160..CP..CBR198708-198908

DARK BEIGE,TRIM4#

main62512-20100-01iAT160,ST162..(CP,CVT)..TWC198708-198908

BLACK,TRIM2#

main62512-20100-04iAT160,ST162..CP..TWC198708-198908

DEEP BLUE,TRIM8#

main62512-20100-05iAT160,ST162..CP..TWC198708-198908

DARK BEIGE,TRIM4#

main62512-20110-01iAT160..CP..CBR198708-198908

W(REAR 3-POINT SEAT BELT),BLACK,TRIM2#

main62512-20110-04iAT160..CP..CBR198708-198908

W(REAR 3-POINT SEAT BELT),DEEP BLUE,TRIM8#

main62512-20110-05iAT160..CP..CBR198708-198908

W(REAR 3-POINT SEAT BELT),DARK BEIGE,TRIM4#

main62512-20120-01iAT160,ST162..CP..TWC198708-198908

W(REAR 3-POINT SEAT BELT),BLACK,TRIM2#

main62512-20120-04iAT160,ST162..CP..TWC198708-198908

W(REAR 3-POINT SEAT BELT),DEEP BLUE,TRIM8#

main62512-20120-05iAT160,ST162..CP..TWC198708-198908

W(REAR 3-POINT SEAT BELT),DARK BEIGE,TRIM4#

main62512-20130-01iAT160..LB..CBR198708-198908

BLACK,TRIM2#

main62512-20130-04iAT160..LB..CBR198708-198908

DEEP BLUE,TRIM8#

main62512-20130-05iAT160..LB..CBR198708-198908

DARK BEIGE,TRIM4#

main62512-20140-01iAT160,ST16#..LB..TWC198708-198908

BLACK,TRIM2#

main62512-20140-04iAT160,ST16#..LB..TWC198708-198908

DEEP BLUE,TRIM8#

main62512-20140-05iAT160,ST16#..LB..TWC198708-198908

DARK BEIGE,TRIM4#

62538CCOVER, QUARTER TRIM, HOLE

main62538-14010-05iAT160,ST16#..CP,LB198708-198908

DARK BEIGE,TRIM4#

sub62538-14010

main62538-14010-11iAT160,ST16#198708-198908

BLACK,TRIM2#

sub62538-14010

main62538-14010-14iAT160,ST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#

sub62538-14010

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-20061iAT160,ST16#..CP,LB198708-198908

RH

main62561-20080iST162..CVT198708-198908

RH

main62562-20041iAT160,ST16#..CP,LB198708-198908

LH

main62562-20060iST162..CVT198708-198908

LH

67707BORNAMENT SUB-ASSY, QUARTER TRIM, RH

main67707-20130-04iST165198710-198908

DEEP BLUE,TRIM8#

main67707-20130-05iST165198710-198908

DARK BEIGE,TRIM4#

main67707-20130-13iST165198710-198908

GRAY,TRIM2#

main67707-20140-04iAT160,ST162..(CP,LB)..TWC198708-198908

DEEP BLUE,TRIM8#

main67707-20140-05iAT160,ST162..(CP,LB)..TWC198708-198908

DARK BEIGE,TRIM4#

main67707-20140-13iAT160,ST162..TWC198708-198908

GRAY,TRIM2#

67708BORNAMENT SUB-ASSY, QUARTER TRIM, LH

main67708-20140-04iST165198710-198908

DEEP BLUE,TRIM8#

main67708-20140-05iST165198710-198908

DARK BEIGE,TRIM4#

main67708-20140-13iST165198710-198908

GRAY,TRIM2#

main67708-20150-04iAT160,ST162..(CP,LB)..TWC198708-198908

DEEP BLUE,TRIM8#

main67708-20150-05iAT160,ST162..(CP,LB)..TWC198708-198908

DARK BEIGE,TRIM4#

main67708-20150-13iAT160,ST162..TWC198708-198908

GRAY,TRIM2#

67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-30020iAT160,ST16#198708-198908

67913PLATE, FRONT DOOR SCUFF, RH

main67913-20140-01iAT160,ST16#198708-198908

BLACK,TRIM2#

sub67913-20140

main67913-20140-04iAT160,ST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#

sub67913-20140

main67913-20140-05iAT160,ST16#..CP,LB198708-198908

DARK BEIGE,TRIM4#

sub67913-20140

67914PLATE, FRONT DOOR SCUFF, LH

main67913-20140-01iAT160,ST16#198708-198908

BLACK,TRIM2#

sub67913-20140

main67913-20140-04iAT160,ST16#..CP,LB198708-198908

DEEP BLUE,TRIM8#

sub67913-20140

main67913-20140-05iAT160,ST16#..CP,LB198708-198908

DARK BEIGE,TRIM4#

sub67913-20140

7102

6777132010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32010

9015940119

main90159-40119

9016745002

main90167-45002

9016840008

main90168-40008

9016840055

main90168-40055

9046305024

main90463-05024

9046705023

main90467-05023

9046710016

main90467-10016

9046804046

main90468-04046

9046805060

main90468-05060

9046806038

main90468-06038

9095901007

main90959-01007

9095901009

main90959-01009

9095901165

main90959-01165

9356055014

main93560-55014

44 parts on this diagram · 2 diagrams in section
