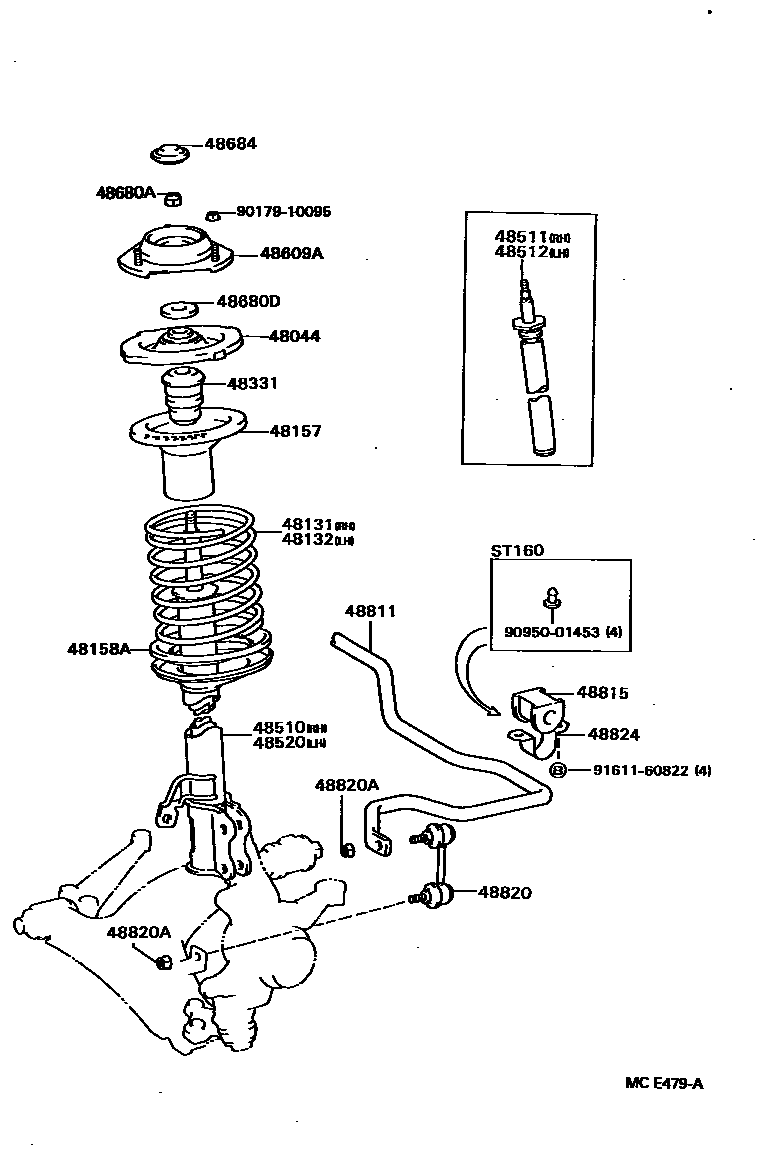

FRONT SPRING & SHOCK ABSORBER

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-32010iAT160,ST16#198708-198908

48131SPRING, FRONT COIL, RH

main48131-2D330iAT160..CBR198708-198908

sub48131-1E720

main48131-2D430iAT160..TWC198708-198908

main48131-2D470iST162..(CP,LB)..5F198708-198908

main48131-2D500iST162..4FC198708-198908

main48131-2D700iST162..CVT198708-198908

main48131-2G770iST165198710-198908

48132SPRING, FRONT COIL, LH

main48131-2D330iAT160..CBR198708-198908

sub48131-1E720

main48131-2D430iAT160..TWC198708-198908

main48131-2D460iST162..(CP,LB)..RHD..5F198708-198908

main48131-2D470iST162..RHD..4FC;ST162..(CP,LB)..LHD..5F198708-198908

main48131-2D500iST162..LHD..4FC198708-198908

main48131-2D680iST162..CVT..RHD198708-198908

main48131-2D700iST162..CVT..LHD198708-198908

main48131-2G770iST165198710-198908

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-20040iAT160,ST16#198708-198908

48158AINSULATOR, FRONT COIL SPRING, LOWER

main48158-12020iAT160,ST16#198708-198711

main48158-12030iAT160,ST16#198711-198908

48331BUMPER, FRONT SPRING, NO.1

main48331-20040iAT160,ST16#198708-198908

sub48331-12130

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-20261iAT160,ST162..TWC198708-198711

sub48510-20262

sub90561-15006

main48510-20262iAT160,ST162..TWC198711-198908

sub48510-20392

main48510-20271iAT160..CBR198708-198711

sub48510-20272

sub90561-15006

main48510-20272iAT160..CBR198711-198908

sub48510-20392

main48510-20392iST165198711-198908

sub48510-20393

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-20140iAT160..CBR198708-198908

sub48511-20150

main48511-20150iAT160,ST162..TWC198708-198711

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-20140iAT160..CBR198708-198908

sub48511-20150

main48511-20150iAT160,ST162..TWC198708-198908

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-20251iAT160,ST162..TWC198708-198711

sub48520-20252

sub90561-15006

main48520-20252iAT160,ST162..TWC198711-198908

sub48520-20382

main48520-20261iAT160..CBR198708-198711

sub48520-20262

sub90561-15006

main48520-20262iAT160..CBR198711-198908

sub48520-20382

main48520-20381iST165198710-198711

sub48520-20382

sub90561-15006

main48520-20382iST165198711-198908

sub48520-20383

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-20090iAT160,ST162198708-198908

main48609-20100iST165198710-198908

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iAT160,ST16#198708-198908

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iAT160,ST16#198708-198908

48684COVER, BEARING DUST

main48684-32010iAT160,ST16#198708-198908

48811BAR, STABILIZER, FRONT

main48811-20250iAT160..CBR198708-198908

main48811-20320iAT160,ST162..TWC198708-198908

main48811-20370iST165198710-198908

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14160iAT160,ST162..TWC198708-198908

main48815-20120iST165198710-198908

main48815-24010iAT160..CBR198708-198908

48820LINK ASSY, FRONT STABILIZER

main48820-20010iAT160,ST162198708-198908

main48820-20020iST165198710-198908

sub48820-20021

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10054iAT160,ST16#198708-198908

48824BRACKET, STABILIZER, FRONT

main48824-20040iAT160,ST16#198708-198908

9017910095

main90179-10095

9095001453

main90950-01453

9161160822

main91611-60822

22 parts on this diagram · 1 diagram in section
