MANIFOLD

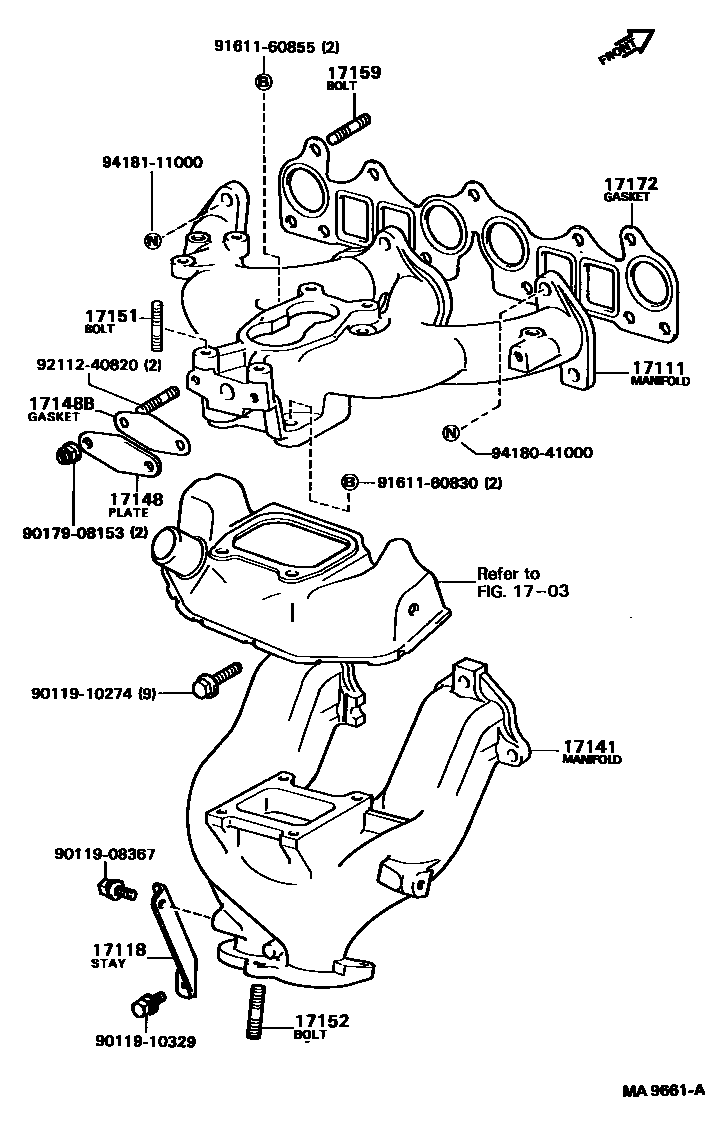

Parts diagram

1703

17111MANIFOLD, INTAKE

main17101-16041i198708-198908

main17101-16130i198708-198908

main17101-88381i198710-198908

main17101-88383i198710-198908

main17111-15030i198708-198908

main17111-74050i198708-198908

main17111-88360i198708-198908

17118STAY, MANIFOLD

main17118-16030i198708-198908

main17118-88362i198708-198908

main17118-88381i198710-198908

main17139-16040i198708-198908

17141MANIFOLD, EXHAUST

main17141-16030i198708-198908

main17141-16180i198708-198908

main17141-16190i198708-198908

main17141-74070i198708-198908

main17141-88362i198708-198908

main17141-88380i198710-198908

17148PLATE, EXHAUST MANIFOLD(FOR EGR INLET)

main17148-88380i198710-198711

main25617-14010i198708-198908

17148BGASKET, EGR INLET

main25629-15011i198708-198908

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main92112-40832i198708-198808

main92112-60832i198808-198908

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i198708-198908

main90116-10146i198805-198908

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08186i198708-198908

INTAKE SIDE

main90116-08218i198708-198908

INTAKE SIDE

main90116-10037i198708-198908

EXHAUST SIDE

main90116-10063i198708-198710

EXHAUST SIDE *54

main90116-10113i198710-198908

EXHAUST SIDE

main90116-10113i198710-198908

EXHAUST SIDE *54

main92112-61032i198708-198908

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-14010i198708-198908

9011908367

main90119-08367

9011910274

main90119-10274

9011910329

main90119-10329

9017908153

main90179-08153

9161160830

main91611-60830

9161160855

main91611-60855

9211240820

main92112-40820

9418041000

main94180-41000

9418111000

main94181-11000

19 parts on this diagram · 5 diagrams in section
