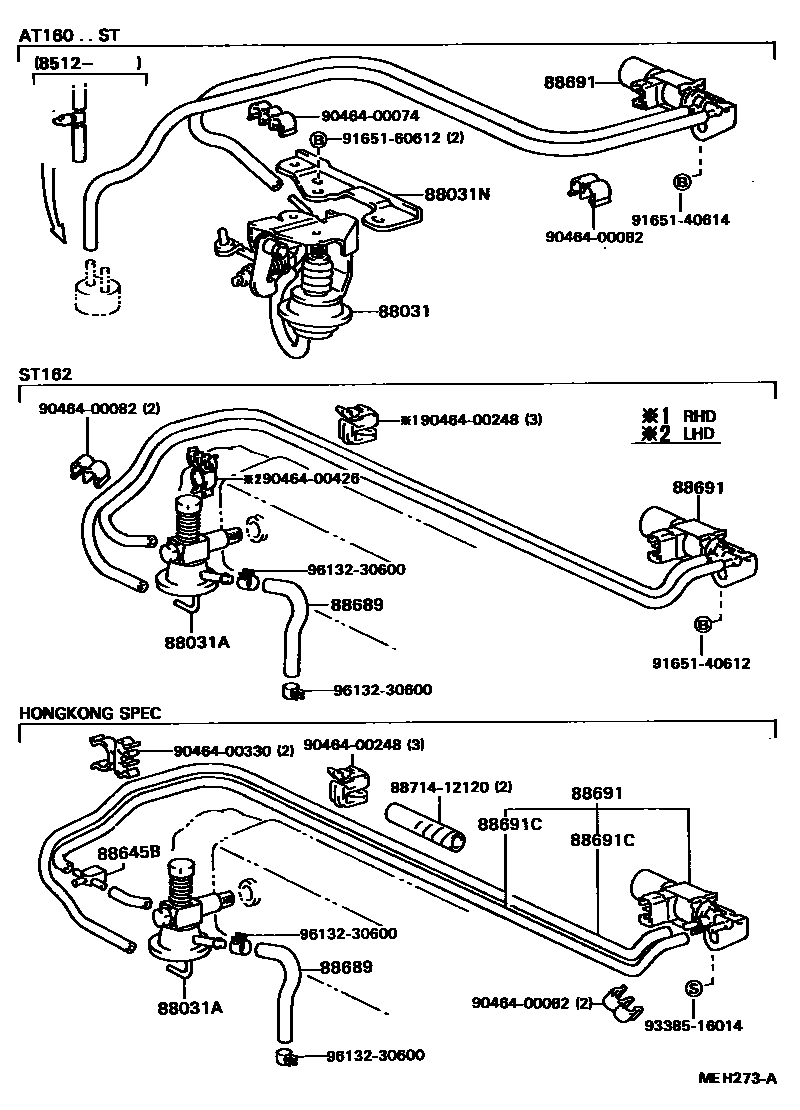

HEATING & AIR CONDITIONING - VACUUM PIPING

88031ACTUATOR SET, IDLE-UP

main88031-12140iAT160..CBR198508-198708

88031ADIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR

main88606-24020iST162..(CP,LB)..RHD; ST162..EUG,FRG198508-198708

HONGKONG SPEC

88031NBRACKET, IDLE-UP ACTUATOR

main88688-20440iAT160..CBR198508-198708

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04005iST162..(CP,LB)..RHD198508-198708

HONGKONG SPEC

88689HOSE, DAMPER CONTROL DIAPHRAGM VACUUM

main88689-40030iST162..(CP,LB)..RHD; ST162..EUG,FRG198508-198708

HONGKONG SPEC

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-20620iAT160..CBR198508-198512

main88690-20621iAT160..CBR198512-198708

main88690-20660iST162..RHD198508-198708

main88690-20670iST162..LHD..(EUG,FRG)198508-198708

main88690-20700iST162..(CP,LB)..RHD198508-198708

HONGKONG SPEC

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90445-08194iST162..(CP,LB)..RHD198508-198708

*H,L=1100,HONGKONG SPEC

main90445-08207iST162..(CP,LB)..RHD198508-198708

L=1450(*H,L=1150),HONG KONG SPEC

8871412120HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-12120

9046400074

main90464-00074

9046400082

main90464-00082

9046400248

main90464-00248

9046400330

main90464-00330

9046400426

main90464-00426

9165140612

main91651-40612

9165140614

main91651-40614

9165160612

main91651-60612

9338516014

main93385-16014

9613230600

main96132-30600

18 parts on this diagram · 1 diagram in section
