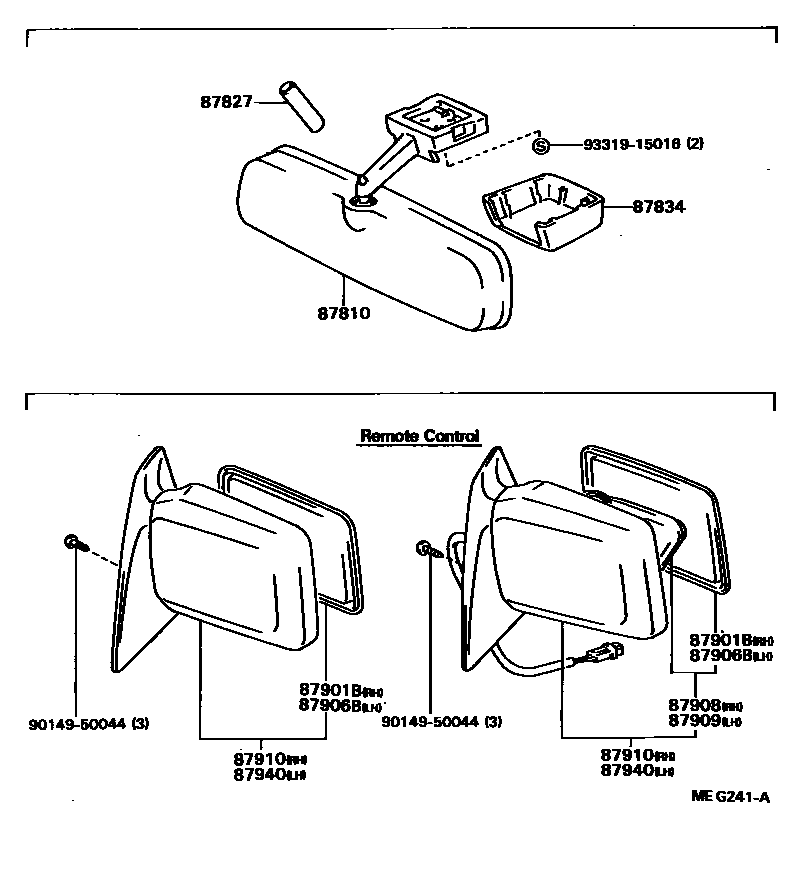

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-12220-13iAT160,ST162198508-198605

GRAY,GRAY,TRIM1#

main87810-12220-14iAT160,ST162198508-198605

BLUE,BLUE,TRIM8#

main87810-12220-16iAT160,ST162198508-198605

BROWN,BROWN,TRIM4#

main87810-12221-13iAT160,ST162198605-198708

GRAY,GRAY,TRIM1#

main87810-12221-14iAT160,ST162..CP,LB198605-198708

BLUE,BLUE,TRIM8#

main87810-12221-16iAT160,ST162..CP,LB198605-198708

BROWN,BROWN,TRIM4#

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22020iAT160,ST162198508-198708

L=34.5

main87828-87002iAT160,ST162198704-198708

L=32

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-06iAT160,ST162..CP,LB198508-198708

BROWN,BROWN,TRIM4#

main87834-20080-34iAT160,ST162..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

main87834-20080-53iAT160,ST162198508-198708

GRAY,SHADOW GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87908-20040iAT160198508-198708

main87931-20400iAT160,ST162..TWC198508-198608

*RCM

main87931-20660iST162..CP,LB198508-198708

W/MIRROR HEATER

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87909-20690iAT160198508-198708

main87961-20680iST162..CVT..RHD198610-198708

*RCM

main87961-20720iST162..CP,LB198508-198708

W/MIRROR HEATER

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-20400iAT160,ST162..CP,LB198608-198708

*RCM

main87908-20660iST162..CVT..LHD198610-198708

W/MIRROR HEATER

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-20680iST162..CVT..RHD198610-198708

*RCM

main87909-20720iST162..CVT198610-198708

W/MIRROR HEATER

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-20400iST162..RHD198508-198606

main87910-20401iST162..RHD198606-198708

main87910-20630iAT160198508-198606

main87910-20631iAT160198606-198708

main87910-20640iAT160,ST162..LHD..TWC198508-198606

*RCM

main87910-20641iAT160,ST162..(CP,LB)..LHD198608-198708

*RCM

main87910-20660iST162..RHD198508-198606

W/HEATER

main87910-20661iST162..(CP,LB)..RHD198606-198708

W/HEATER

main87910-20670iST162..LHD198508-198606

W/HEATER

main87910-20671iST162..LHD198606-198708

W/HEATER

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-20680iST162..RHD198508-198606

main87940-20681iST162..RHD198606-198708

main87940-20690iAT160198508-198606

main87940-20691iAT160198606-198708

main87940-20700iAT160,ST162..LHD..TWC198508-198606

*RCM

main87940-20701iAT160,ST162..(CP,LB)..LHD198608-198708

*RCM

main87940-20720iST162..RHD198508-198606

W/HEATER

main87940-20721iST162..(CP,LB)..RHD198606-198708

W/HEATER

main87940-20730iST162..LHD198508-198606

W/HEATER

main87940-20731iST162..LHD198606-198708

W/HEATER

9014950044

main90149-50044

9331915016

main93319-15016

11 parts on this diagram · 1 diagram in section
