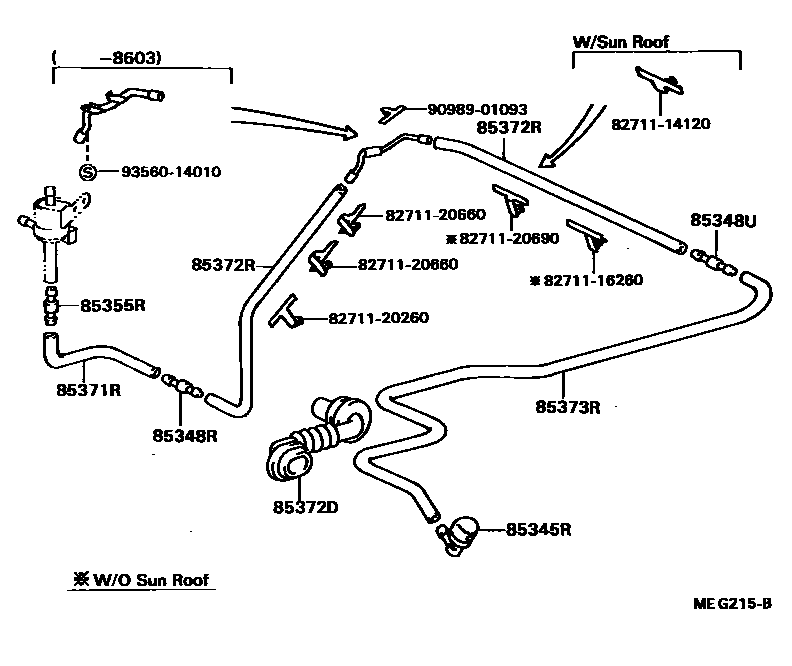

REAR WASHER

85345RNOZZLE, REAR WASHER

main85035-20160iAT160,ST162..LB198508-198708

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iAT160,ST162..LB198508-198708

85348UJOINT, REAR WASHER HOSE, NO.3

main85355-20080iAT160,ST162..LB198508-198708

85355RVALVE, REAR WASHER HOSE

main85031-12250iAT160,ST162..LB198508-198708

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001iAT160,ST162..LB198508-198708

L=1000(*H,L=300)

85372DGROMMET, REAR WASHER HOSE

main85372-14020iAT160,ST162..LB198508-198708

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33299iAT160,ST162..LB198508-198510

L=1100(*H,L=725)

main90099-33382iAT160,ST162..LB198508-198510

*H,L=1040

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAT160,ST162..LB198508-198708

L=1450(*H,L=600)

8271114120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14120

8271116260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16260

8271120260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20260

8271120660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20660

8271120690WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20690

9098901093

main90989-01093

9356014010

main93560-14010

15 parts on this diagram · 1 diagram in section
