REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-14220×2iST162..FRG,SDZ198508-198708

SIDE LIGHTING

main81270-20200iAT160,ST162198508-198708

LOWER LIGHTING

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12012×2iST162..FRG,SDZ198508-198708

12V 7.5W,12V 7.5W,SIDE LIGHTING

main99132-12050×2iAT160,ST162198508-198708

12V 5W,12V 5W,LOWER LIGHTING

81271LENS, LICENSE PLATE LAMP

main81271-14220×2iST162..FRG,SDZ198508-198708

SIDE LIGHTING

main81271-20200iAT160,ST162198508-198708

LOWER LIGHTING

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20210×2iST162..FRG,SDZ198508-198708

SIDE LIGHTING

main81272-20240iAT160,ST162198508-198708

LOWER LIGHTING

81278BGUARD, LICENSE PLATE LAMP

main81277-20210×2iST162..FRG,SDZ198508-198708

SIDE LIGHTING

8127920210WASHER, SIDE TURN SIGNAL LAMP

main81279-20210

8127924010WASHER, SIDE TURN SIGNAL LAMP

main81279-24010

8127995700WASHER, SIDE TURN SIGNAL LAMP

main81279-95700

9016450014

main90164-50014

9018906006

main90189-06006

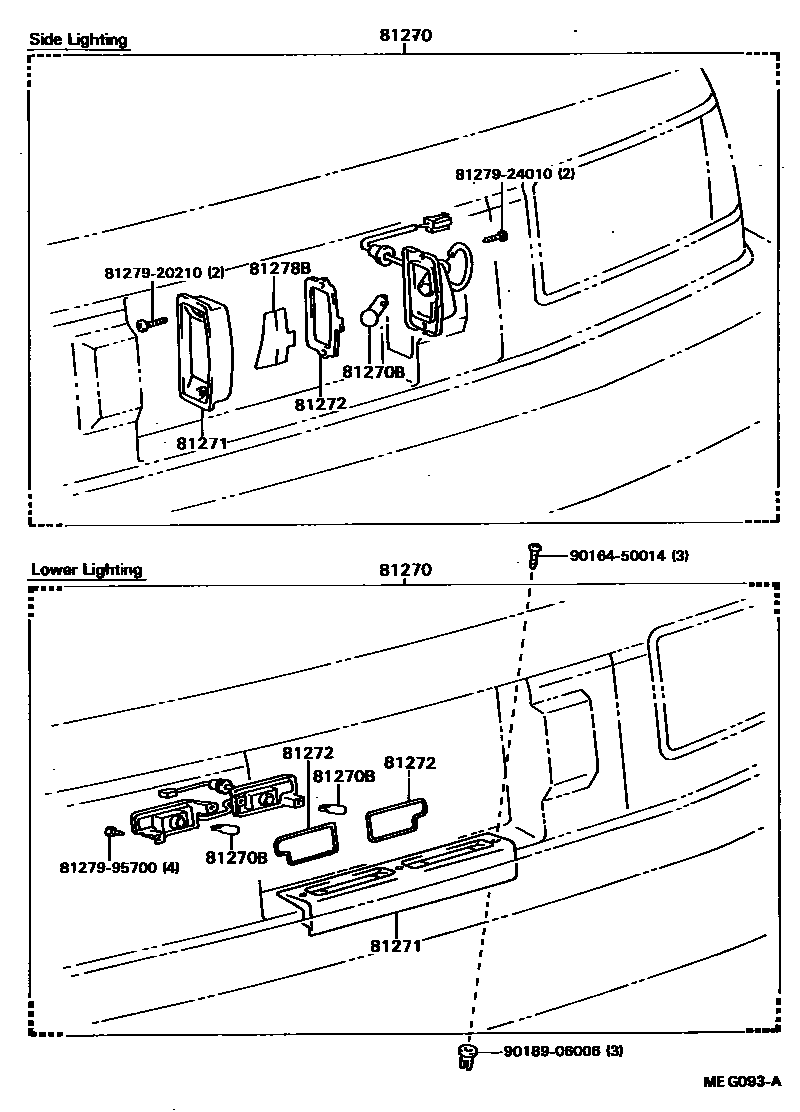

10 parts on this diagram · 1 diagram in section
