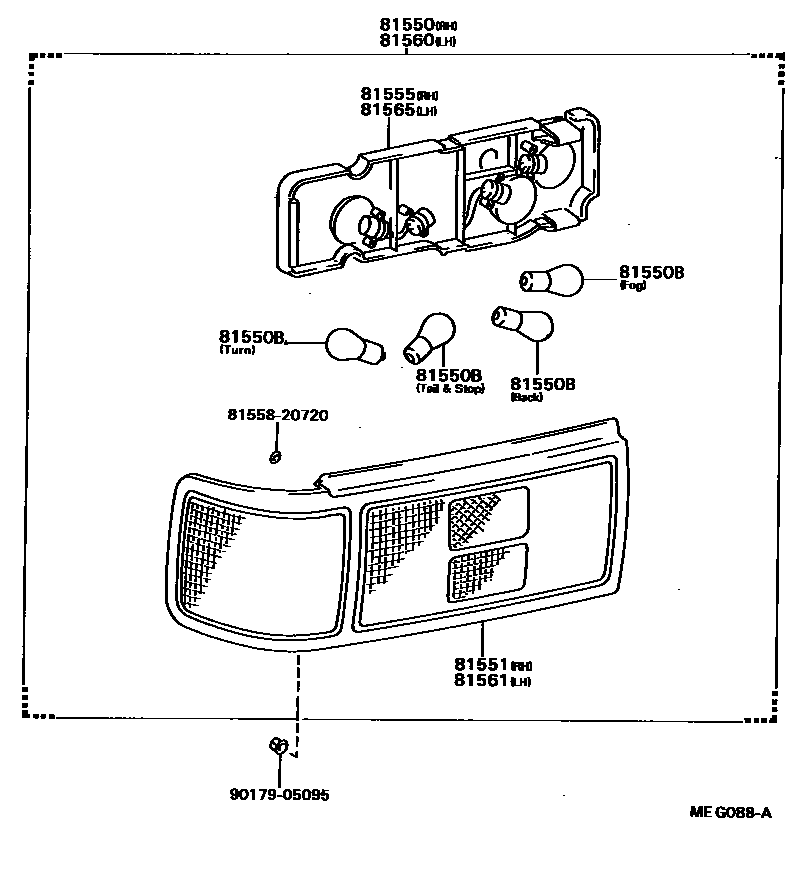

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-20670iST162..LB..RHD198508-198708

main81550-20690iST162..(CP,CVT)..RHD198508-198708

main81550-20780iAT160,ST162..LB..LHD198508-198708

main81550-20790iAT160,ST162..(CP,CVT)..LHD198508-198708

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×5iAT160,ST162198508-198708

12V 21W,12V 21W(TURN,BACK & FOG)

main99132-21210×2iAT160,ST162198508-198708

12V 21/5W,12V 21/5W(TAIL & STOP)

81551LENS, REAR COMBINATION LAMP, RH

main81551-20670iST162..LB..RHD198508-198708

main81551-20690iST162..(CP,CVT)..RHD198508-198708

main81551-20780iAT160,ST162..LB..LHD198508-198708

main81551-20790iAT160,ST162..(CP,CVT)..LHD198508-198708

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-20670iST162..LB..RHD198508-198708

main81555-20690iST162..(CP,CVT)..RHD198508-198708

main81555-20780iAT160,ST162..LB..LHD198508-198708

main81555-20790iAT160,ST162..(CP,CVT)..LHD198508-198708

81560LAMP ASSY, REAR COMBINATION, LH

main81560-20610iAT160,ST162..LB..LHD198508-198708

main81560-20630iAT160,ST162..(CP,CVT)..LHD198508-198708

main81560-20720iST162..LB..RHD198508-198708

main81560-20730iST162..(CP,CVT)..RHD198508-198708

81561LENS, REAR COMBINATION LAMP, LH

main81561-20610iAT160,ST162..LB..LHD198508-198708

main81561-20630iAT160,ST162..(CP,CVT)..LHD198508-198708

main81561-20720iST162..LB..RHD198508-198708

main81561-20730iST162..(CP,CVT)..RHD198508-198708

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-20610iAT160,ST162..LB..LHD198508-198708

main81565-20630iAT160,ST162..(CP,CVT)..LHD198508-198708

main81565-20720iST162..LB..RHD198508-198708

main81565-20730iST162..(CP,CVT)..RHD198508-198708

8155820720SHADE, REAR COMBINATION LAMP, NO.1 RH

main81558-20720

9017905095

main90179-05095

9 parts on this diagram · 2 diagrams in section
