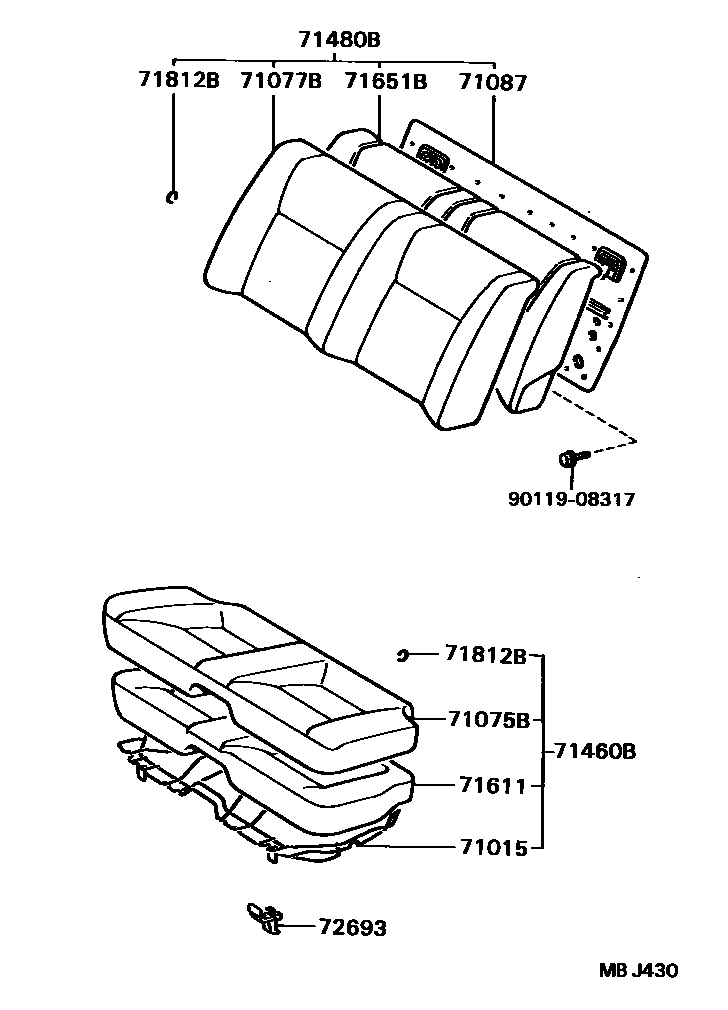

REAR SEAT & SEAT TRACK
71015FRAME SUB-ASSY, REAR SEAT CUSHION
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1#
W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8#
W/SEAT HEATER,FB,BROWN,BROWN,TRIM4#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
71087BOARD SUB-ASSY, REAR SEATBACK
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
W/SEAT HEATER,FB,GRAY,SHADOW GRAY,TRIM1#
W/SEAT HEATER,FB,BLUE,DEEP BLUE,TRIM8#
W/SEAT HEATER,FB,BROWN,BROWN,TRIM4#
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
FB,GRAY,SHADOW GRAY,TRIM1#
FB,BLUE,DEEP BLUE,TRIM8#
FB,BROWN,BROWN,TRIM4#
71611PAD, REAR SEAT CUSHION
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
71812BCLIP(FOR REAR SEAT CUSHION COVER)
72693HOOK, REAR SEAT CUSHION LOCK
9011908317
main90119-08317
11 parts on this diagram · 3 diagrams in section
