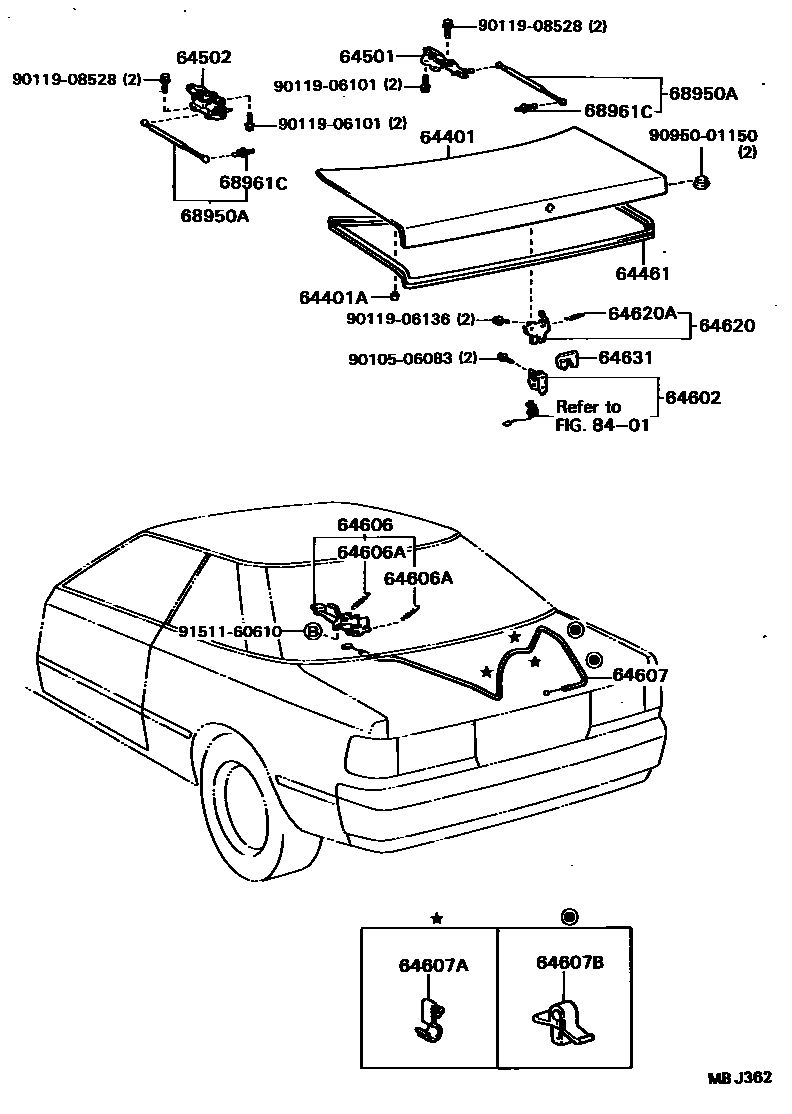

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-2B070iAT160,ST162..(CP,CVT)..TWC198508-198708

W/SPOILER

main64401-2B220iAT160,ST162..CP198508-198708

W/O SPOILER

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09043×2iAT160,ST162..CP,CVT198508-198708

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20230iAT160,ST162..CP,CVT198508-198708

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-20120iAT160,ST162..CP,CVT198508-198708

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-20110iAT160,ST162..CP,CVT198508-198708

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-20040iAT160,ST162..CP..TWC198508-198708

main64621-20050iAT160..CP..CBR198508-198708

main64621-20070iST162..CVT198610-198708

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20060iAT160,ST162..(CP,CVT)..LHD198508-198708

main64606-20070iST162..(CP,CVT)..RHD198508-198708

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004×2iAT160,ST162..CP,CVT198508-198708

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20200iAT160,ST162..(CP,CVT)..LHD198508-198708

main64607-20260iST162..CP..RHD198508-198511

main64607-20280iST162..(CP,CVT)..RHD198511-198708

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010×3iAT160,ST162..CP,CVT198508-198708

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90959-01209×2iAT160,ST162..CP,CVT198508-198708

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20090iAT160,ST162..CP198508-198708

main64610-20100iST162..CVT198610-198708

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iAT160,ST162..CP,CVT198508-198708

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12010iAT160,ST162..CP,CVT198508-198708

68950ASTAY ASSY, LUGGAGE DOOR

main68950-29415×2iAT160,ST162..CP198508-198708

main68950-29425×2iAT160,ST162..(CP,CVT)..TWC198508-198708

W/RR SPOILER

68961CBOLT, LUGGAGE DOOR STAY

main68961-20050×2iAT160,ST162..CP198508-198510

main68961-20051×2iAT160,ST162..CP,CVT198510-198708

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506083

main90105-06083

9011906101

main90119-06101

9011906136

main90119-06136

9011908528

main90119-08528

9095001150

main90950-01150

9151160610

main91511-60610

23 parts on this diagram · 1 diagram in section
