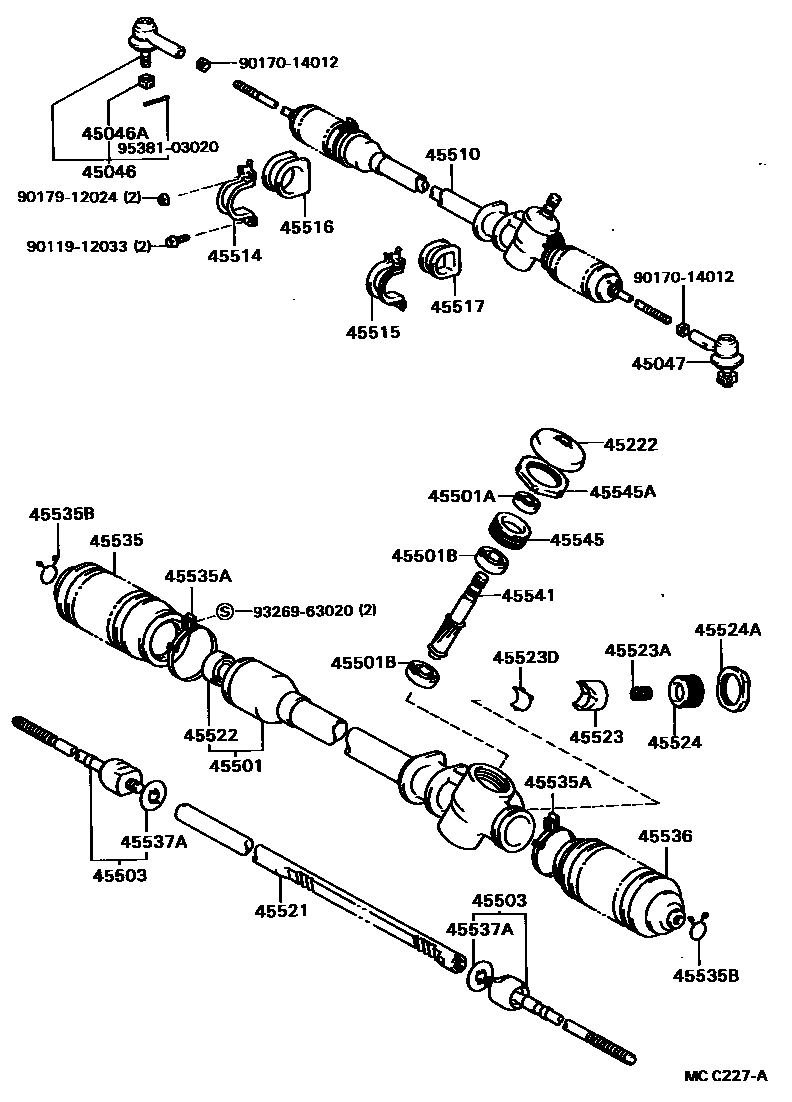

FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45222COVER, STEERING GEAR DUST
45501HOUSING SUB-ASSY, STEERING RACK
sub45501-12120
45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
sub90311-15002
45501BBEARING, RADIAL BALL(FOR STEERING RACK HOUSING)
LWR
UPR
45503END SUB-ASSY, STEERING RACK
45510GEAR ASSY, STEERING
45514BRACKET, STEERING RACK HOUSING, NO.1
45515BRACKET, STEERING RACK HOUSING, NO.2
45516GROMMET, STEERING RACK HOUSING, NO.1
W/POWER STEERING
45517GROMMET, STEERING RACK HOUSING, NO.2
45521RACK, STEERING
45522BUSH, STEERING RACK
45523GUIDE, RACK(FOR STEERING GEAR)
sub45523-12040
45523ASPRING(FOR STEERING GEAR RACK GUIDE)
45523DSEAT, RACK GUIDE
45524CAP, STEERING RACK GUIDE SPRING
45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)
45535BOOT, STEERING RACK, NO.1
45535ACLAMP(FOR STEERING RACK BOOT)
LH
RH
45535BCLIP(FOR STEERING RACK BOOT)
45536BOOT, STEERING RACK, NO.2
45537AWASHER, CLAW(FOR STEERING RACK END LOCK)
45541PINION, STEERING
45545SCREW, PINION BEARING ADJUSTING
45545ANUT(FOR PINION BEARING ADJUSTING SCREW)
9011912033
main90119-12033
9017014012
main90170-14012
9017912024
main90179-12024
9326963020
main93269-63020
9538103020
main95381-03020
33 parts on this diagram · 3 diagrams in section
