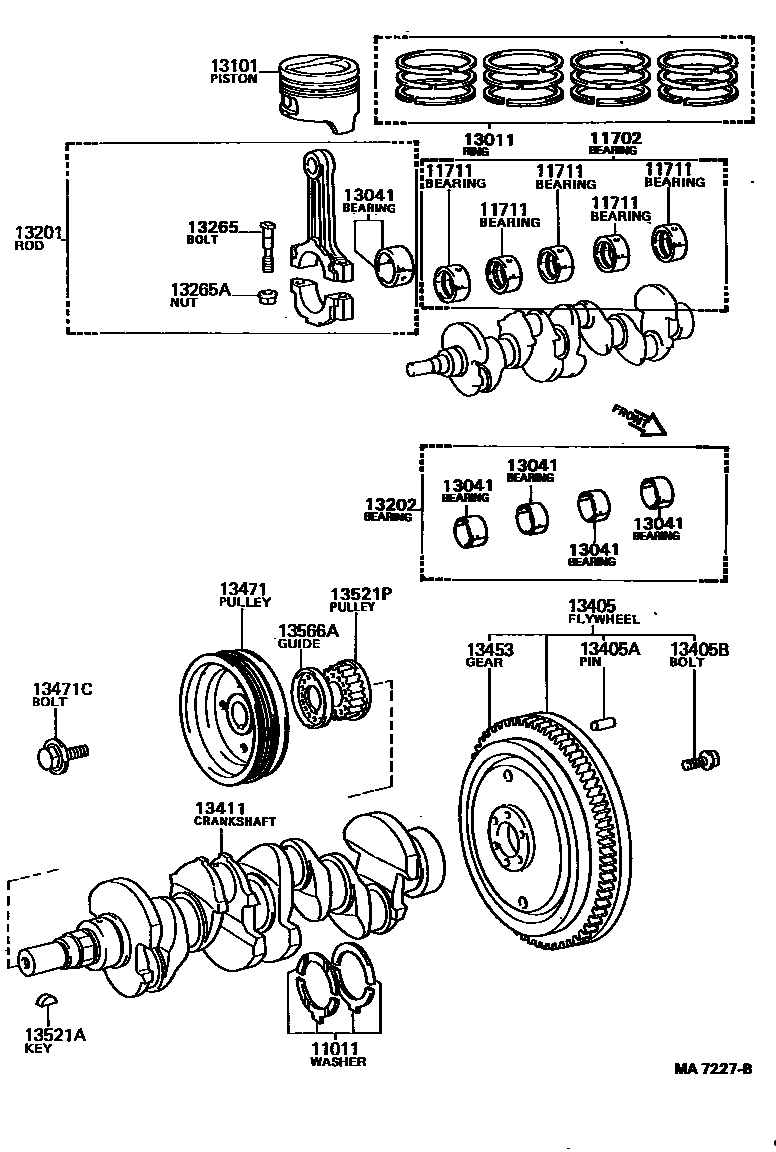

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
11702BEARING SET, CRANKSHAFT
U/S 0.25,U/S 0.25
11711BEARING, CRANKSHAFT
NO.3 MARK"1",MARK 1
NO.3 MARK"2",MARK 2
NO.3 MARK"3",MARK 3
NO.3 MARK"4",MARK 4
NO.3 MARK"5",MARK 5
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
MARK"4",MARK 4
MARK"5",MARK 5
NO.1,2,4,5 MARK"1",MARK 1
NO.1,2,4,5 MARK"2",MARK 2
NO.1,2,4,5 MARK"3",MARK 3
NO.1,2,4,5 MARK"4",MARK 4
NO.1,2,4,5 MARK"5",MARK 5
13011RING SET, PISTON
STD,STD
STD,STD
STD,STD
STD
STD
O/S 0.50,O/S 0.50
O/S 0.50,O/S 0.50
13041BEARING, CONNECTING ROD
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
MARK"1",MARK 1
MARK"2",MARK 2
MARK"3",MARK 3
13101PISTON SUB-ASSY, W/PIN
STD,STD
STD,STD
STD
STD
O/S 0.50
O/S 0.50,O/S 0.50
13201ROD SUB-ASSY, CONNECTING
13202BEARING SET, CONNECTING ROD
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
L=18,OD=8,L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13521PPULLEY, CRANKSHAFT TIMING
13566AGUIDE, TIMING BELT
