ENGINE OVERHAUL GASKET KIT

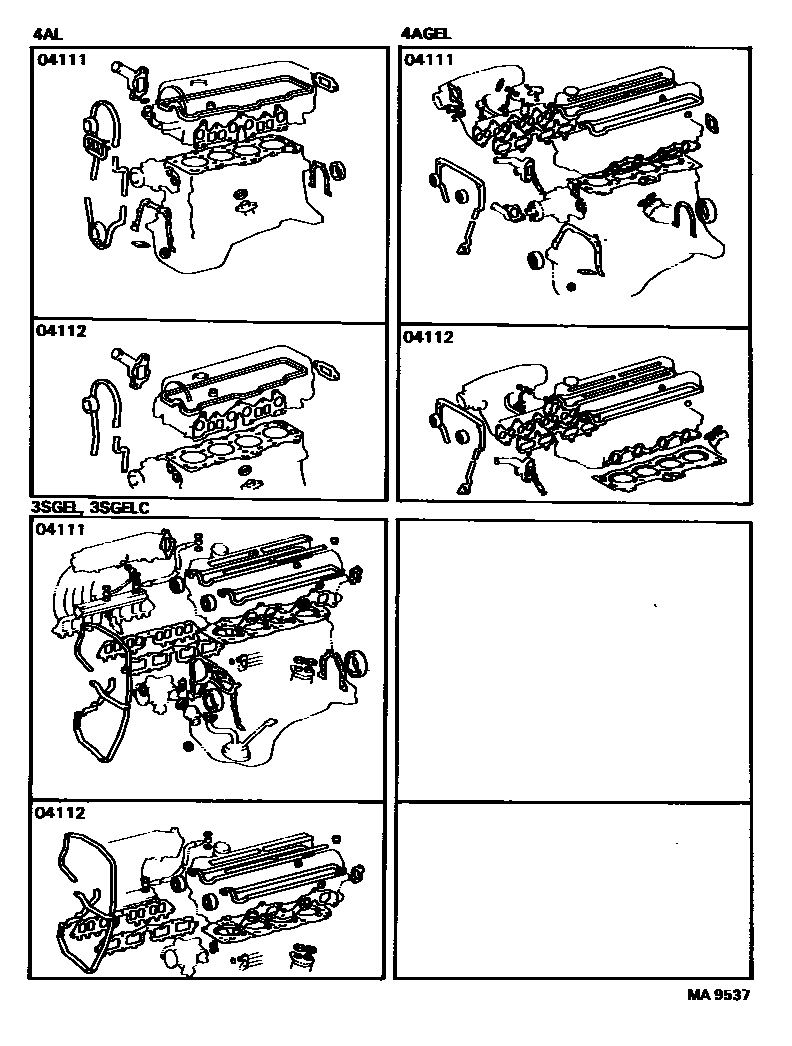

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-16071i198508-198708
sub04111-16072
main04111-16090i198508-198708
sub04111-16091
main04111-74031i198508-198610
sub04111-74032
main04111-74032i198610-198708
sub04111-74033
04112GASKET KIT, ENGINE VALVE GRIND
main04112-16071i198508-198708
sub04112-16072
main04112-16090i198508-198708
sub04112-16091
main04112-74031i198508-198708
sub04112-74032

2 parts on this diagram · 1 diagram in section
