SHORT BLOCK ASSEMBLY

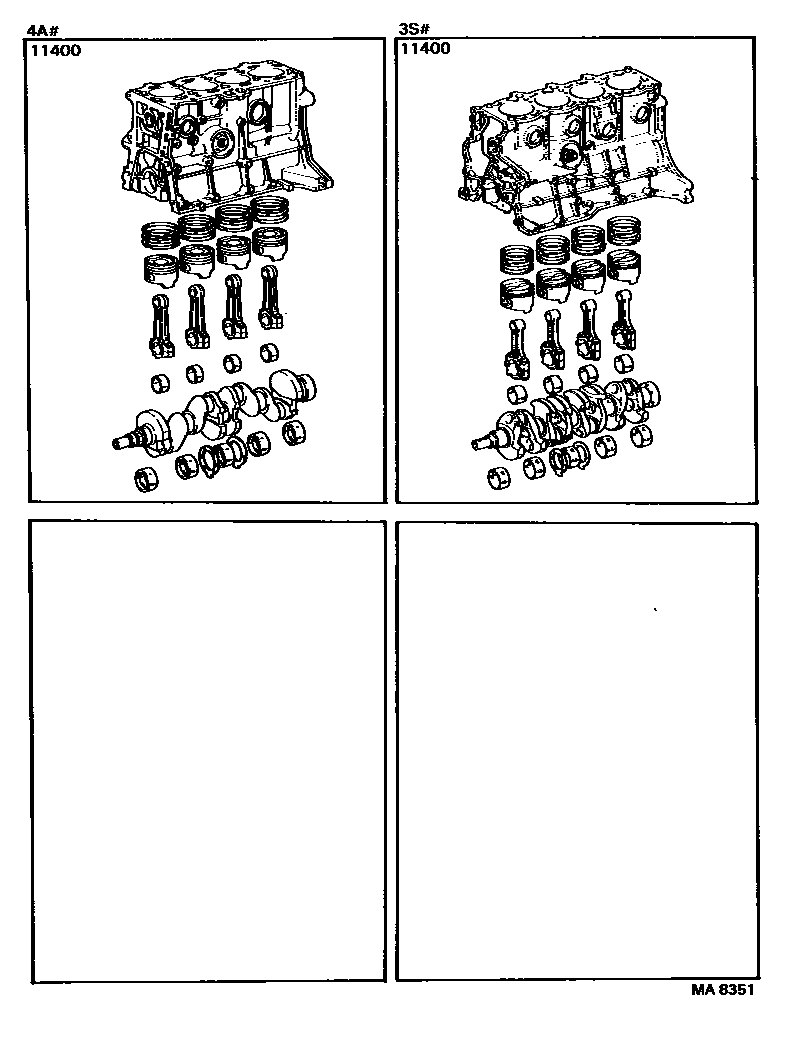

Parts diagram

11400BLOCK ASSY, SHORT

main11400-16060i198508-198708

main11400-16100i198508-198708

main11400-88360i198508-198708

main11400-88361i198508-198708

main11400-88362i198508-198606

main11400-88372i198606-198708

1 parts on this diagram · 1 diagram in section
