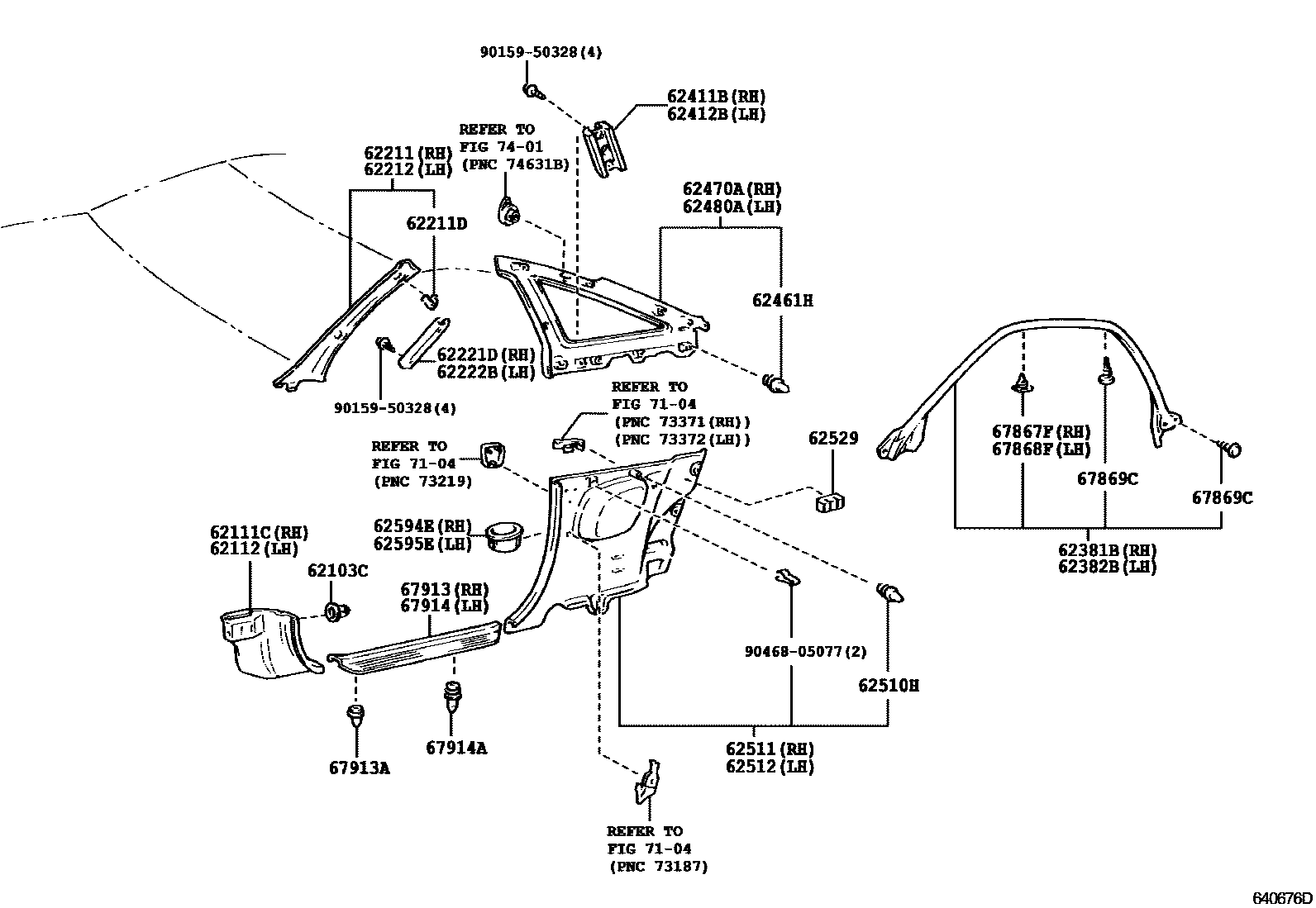

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62103CCLIP, COWL SIDE TRIM BOARD SET
62111CBOARD, COWL SIDE TRIM, RH
62112BOARD, COWL SIDE TRIM, LH
62211GARNISH, FRONT PILLAR, RH
AMETHYST,TRIM20,21,22,23
AMETHYST,TRIM2#
LT.GRAY,TRIM20,21,22,23
LT.GRAY,TRIM2#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
AMETHYST,TRIM20,21,22,23
AMETHYST,TRIM2#
LT.GRAY,TRIM20,21,22,23
LT.GRAY,TRIM2#
62221DCOVER, FRONT PILLAR GARNISH, RH
62222BCOVER, FRONT PILLAR GARNISH, LH
62381BWEATHERSTRIP, ROOF SIDE RAIL, RH
62382BWEATHERSTRIP, ROOF SIDE RAIL, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
62412BGARNISH, CENTER PILLAR, UPPER LH
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62470AGARNISH ASSY, ROOF SIDE, INNER RH
62480AGARNISH ASSY, ROOF SIDE, INNER LH
62510HCLIP(FOR QUARTER TRIM FRONT PANEL)
62511BOARD, QUARTER INSIDE TRIM, RH
AMETHYST,TRIM2#
AMETHYST,TRIM20,21,22,23
DK.GRAY,TRIM20,21,22,23
DK.GRAY,TRIM2#
W(AUDIO),DK.GRAY,TRIM2#
W(AUDIO),DK.GRAY,TRIM20,21,22,23
62512BOARD, QUARTER INSIDE TRIM, LH
AMETHYST,TRIM2#
AMETHYST,TRIM20,21,22,23
DK.GRAY,TRIM20,21,22,23
DK.GRAY,TRIM2#
W(AUDIO),DK.GRAY,TRIM20,21,22,23
W(AUDIO),DK.GRAY,TRIM2#
62529PAD, QUARTER TRIM, NO.2
62594EPOCKET, QUARTER TRIM, RH
62595EPOCKET, QUARTER TRIM, LH
67867FRETAINER, DOOR WEATHERSTRIP, RH
sub67867-89103
67868FRETAINER, DOOR WEATHERSTRIP, LH
sub67867-89103
67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP
BLACK
WHITE
67913PLATE, FRONT DOOR SCUFF, RH
67913ACLIP(FOR SCUFF PLATE)
67914PLATE, FRONT DOOR SCUFF, LH
67914ACLIP(FOR SCUFF PLATE)
7104
7401
9015950328
main90159-50328
9046805077
main90468-05077
32 parts on this diagram · 1 diagram in section
