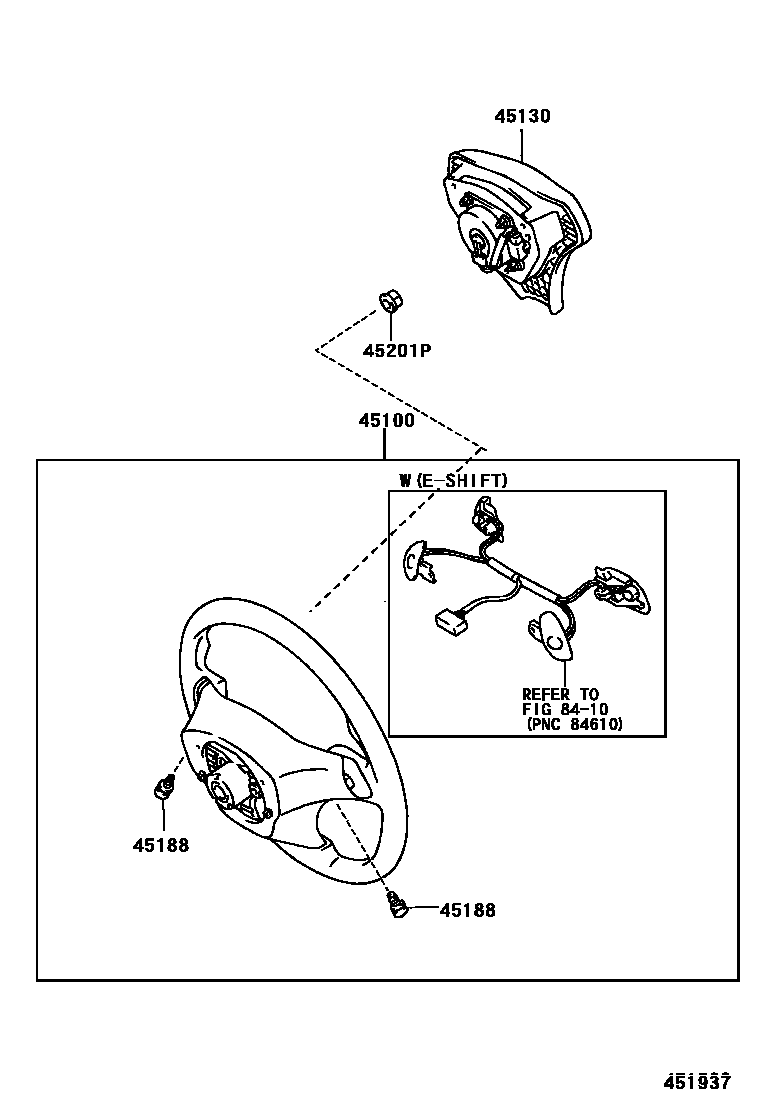

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-2B690-C0iZZT230199908-200507

3-SPOKE,LEATHER,BLACK,TRIM2#

sub45100-2B690

sub45100-2B760

main45100-2B690-C0iZZT231..6F199908-200507

3-SPOKE,LEATHER,BLACK,TRIM20,21,22,23

sub45100-2B690

sub45100-2B760

main45100-2B700-C0iZZT230199908-200507

3-SPOKE,URETHANE,BLACK,TRIM20,21,22,23

sub45100-2B700

main45100-2B710-C0iZZT231..4FC199908-200507

3-SPOKE,LEATHER,BLACK,TRIM2#

sub45100-2B710

sub45100-2B770

main45100-2B720-C0iZZT230199908-200408

3-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM20,21,22,23

sub45100-2B721

main45100-2B721-C0iZZT230200409-200507

3-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM20,21,22,23

main45100-2B730-C0iZZT231..6F199908-200408

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM20,21,22,23

sub45100-2B731

main45100-2B730-C0iZZT230199908-200408

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

sub45100-2B731

main45100-2B731-C0iZZT230200409-200507

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

main45100-2B731-C0iZZT231..6F200409-200507

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM20,21,22,23

main45100-2B740-C0iZZT231..4FC199908-200408

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

sub45100-2B741

main45100-2B741-C0iZZT231..4FC200409-200507

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

sub45100-2B741

45130BUTTON ASSY, HORN

main45130-2B430-C0iZZT231199908-200507

BLACK,TRIM2#

sub45130-2B430

main45130-2B430-C0iZZT230199908-200507

BLACK,TRIM20,21,22,23

sub45130-2B430

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007iZZT23#199908-200507

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iZZT23#199908-200507

8410

5 parts on this diagram · 1 diagram in section
